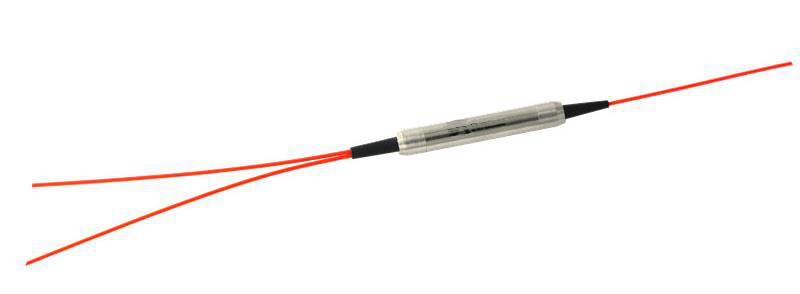

PM DWDM ITU Grid
PM DWDM ITU Grid is designed to multiplex or demultiplex optical signals of different wavelengths onto a single optical fiber. It utilizes advanced thin-film technology to ensure high stability and reliability, meeting ITU standards for 50G, 100G, and 200G channel spacing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Central Wavelength Offset (nm) | ±0.05, ±0.1nm |
| Bandwidth Range (nm) | 0.2-1dB: 0.28-3dB, 0.22±0.5dB, 0.5±0.5dB |
| C→P Insertion Loss Max (dB) | 0.8, 1.0, 0.9dB |
| C→P Non-Adjacent Channel Isolation Min (dB) | 30dB |
| C→R Insertion Loss Max (dB) | 0.4, 0.6, 0.5dB |
| C→R Non-Adjacent Channel Isolation Min (dB) | 13dB |
| Extinction Ratio Min (dB) | 18dB |
| Return Loss (dB) | 45dB |
| Maximum Power Handling (W) | 0.3, 1, 2, 5, 10W |
| Maximum Tensile Strength (N) | 5N |
| Operating Temperature (°C) | -5~+70°C |
| Storage Temperature (°C) | -20~+85°C |
