Multi-core Fiber Combiner

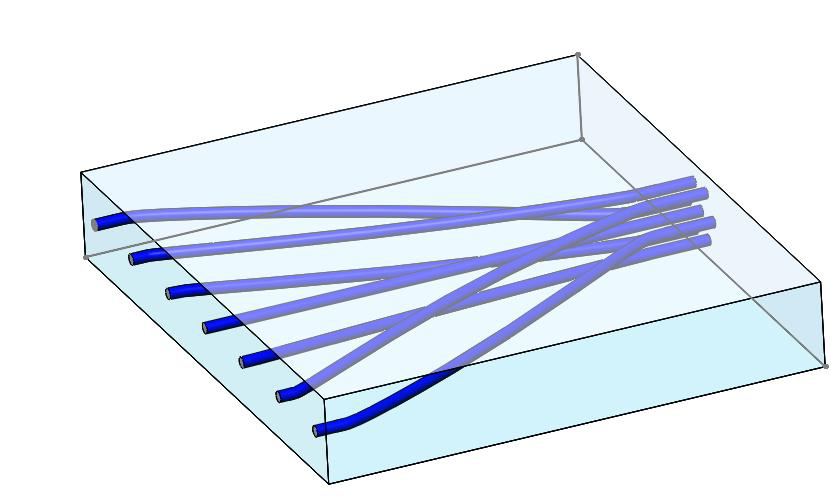

Multi-core fiber combiner is a type of space division multiplexing technology. Due to the differences in size and structure between multi-core fibers and single-mode fibers, this product utilizes three-dimensional optical waveguide coupling (Fan-in Fan-out, FIFO) to achieve multi-core fiber coupling and demultiplexing. One end is matched with a one-dimensional waveguide array, while the other end is matched with a multi-core fiber array in three-dimensional structure. This product is widely used in optical communication systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| One-dimensional Waveguide Array Spacing (μm) | 85/127/250 |
| Insertion Loss (dB) | ≤2dB |
| Crosstalk (dB) | <-35dB |
| Polarization Dependent Loss (dB) | <0.5dB |
| Seven-core Fiber Core Spacing (μm) | 41.5μm |
| Seven-core Fiber Angle (°) | 60° |
Applications
Key Features
Datasheet
Supplier Information
