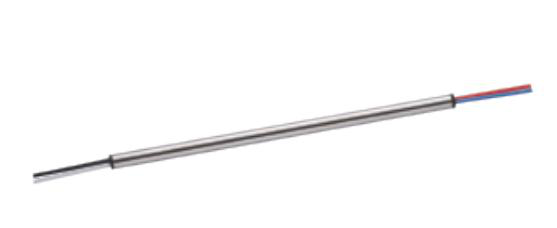

Polarization Maintaining Coupler

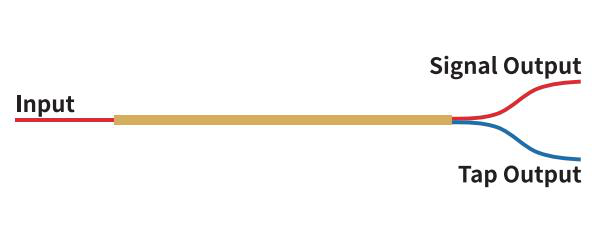

The polarization maintaining coupler is an optical component designed for polarization maintaining systems. It ensures the input polarization state while achieving power splitting or combining. This product adopts precise optical fiber tapering and micro-optical structure, ensuring low insertion loss and high extinction ratio. It is suitable for high-precision optical systems sensitive to polarization.
Specification Snapshot
Typical Insertion Loss (dB)
0.8 to 2.0
Maximum Insertion Loss (dB)
1.2 to 2.5
Extinction Ratio (dB)
18 to 30
Request a Quote
Download Datasheet
Chat
Overview
The polarization maintaining coupler is an optical component designed for polarization maintaining systems. It ensures the input polarization state while achieving power splitting or combining. This product adopts precise optical fiber tapering and micro-optical structure, ensuring low insertion loss and high extinction ratio. It is suitable for high-precision optical systems sensitive to polarization.
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength (nm) | 488, 532, 635, 780, 830, 980, 1064, 1310, 1480, 1550, 1700, 2000 |
| Operating Wavelength Range (nm) | ±5 to ±20 |
| Typical Insertion Loss (dB) | 0.8 to 2.0 |
| Maximum Insertion Loss (dB) | 1.2 to 2.5 |
| Extinction Ratio (dB) | 18 to 30 |
| Maximum Power Loss per Connector (dB) | 1.0 to 0.3 |
| Maximum Optical Power (W) | 20 |
| Thermal Stability (dB) | ≤0.005 |
| Maximum Return Loss (dB) | 50 |
| Minimum Directivity (dB) | 50 |
| Signal End Fiber Type | Polarization Maintaining Fiber |
| Tap End Fiber Type | Polarization Maintaining Single Mode Fiber |
| Operating Temperature (°C) | -5~+70 |
| Storage Temperature (°C) | -40~+85 |
| Coupling Ratio and Tolerance | 1/99, 2/98, 5/95, 10/90, 20/80, 30/70, 40/60, 50/50 ±0.3 |
| Maximum Coupling Ratio Tolerance (%) | ±0.3 |
| Splitting Ratio | 0.1/99.9 |
Applications
1. Power monitoring 2. Optical communication 3. Optical fiber laser 4. Optical fiber amplifier 5. Optical fiber sensing

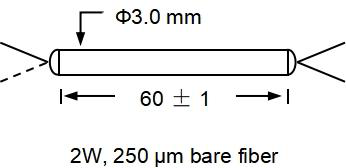

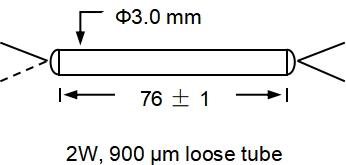

Key Features

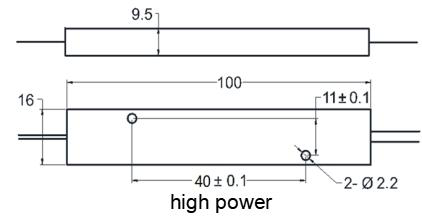

1. Wavelength range selectable from 488~2100nm 2. Compact size with length less than 30mm 3. High power handling (up to 100W) 4. Low insertion loss and high reliability
