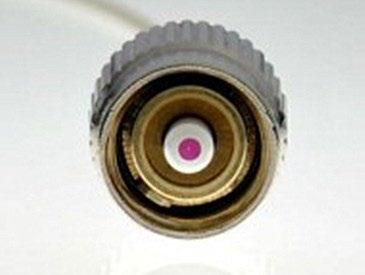

Fiber Coating Processing
The company provides various coatings on fiber ends, including full/partial reflection, long-pass, short-pass, band-pass, and anti-reflection coatings. These coatings enhance the optical performance of fibers, such as AOI and NA, and are widely used in optical systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Reflection Filter Band | 长波通(LP), 短波通(SP), 带通(BP) |
| Mirror Type | 全反射, 部分反射 |
| Starting Wavelength and Bandwidth | 可定制 |
| Cutoff Wavelength and Bandwidth | 可定制 |
| Peak Transmittance (T) | 可定制 |
| Peak Reflectance (R) | 可定制 |
| Reflection Wavelength Range | 可定制 |
| Apparent Wavelength Range | 可定制 |
| Apparent Optical Density (OD) | 可定制 |
| Fiber Diameter | 可定制 |
| Fiber Material | 玻璃, 硫系化合物 |
| Mode Matching Range | 可定制 |
| Fiber Endface Type | 可定制 |
Applications
Key Features
Datasheet
