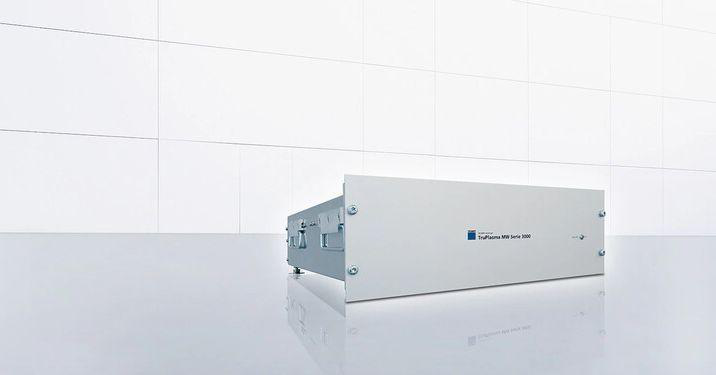

TruPlasma MW 1000 Series
The TruPlasma MW 1000 Series is an innovative 1000 W water-cooled 2450 MHz microwave solid-state power generator designed for precise and repeatable power delivery in semiconductor applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Regulation Mode | Forward power |
| Regulation Mode | Delivered power |
| Pulse Mode | 1kHz to 1000kHz (upon request) |
| Pulse Duty Cycle | 3%-90% |
| Minimum Pulse On-Time (FWHM) | 30ns |
| Ripple of Output Power | 5% RMS |
| Multi-Level Pulsing | Upon request |
| Phase Control (CEX) | 0° to 360° with 1° resolution |
| MW Output Power Range | 10W to nominal power |
| Maximum Reflected Power | Nominal power |
| Power Accuracy | ±5% of nominal power |
| Operating Frequency | 2450MHz ±50MHz |
| Nominal Output Frequency Accuracy | 1ppm |
| Frequency Steps | 100kHz |
| Output Impedance | 50Ω |
| Harmonic Signals | -40dBc |
| MW Output Connector | Coaxial cable N-type female connector, 50Ω or WR340 |
| Wall-Plug Efficiency | Up to 55% |
| Power Supply | External AC DC power supply with 96% efficiency |
| Dimensions | 419x203x162mm |
| Weight | 9kg |
| Standards and Directives | CE, RoHS, EN: UL 61010 (NRTL) |
