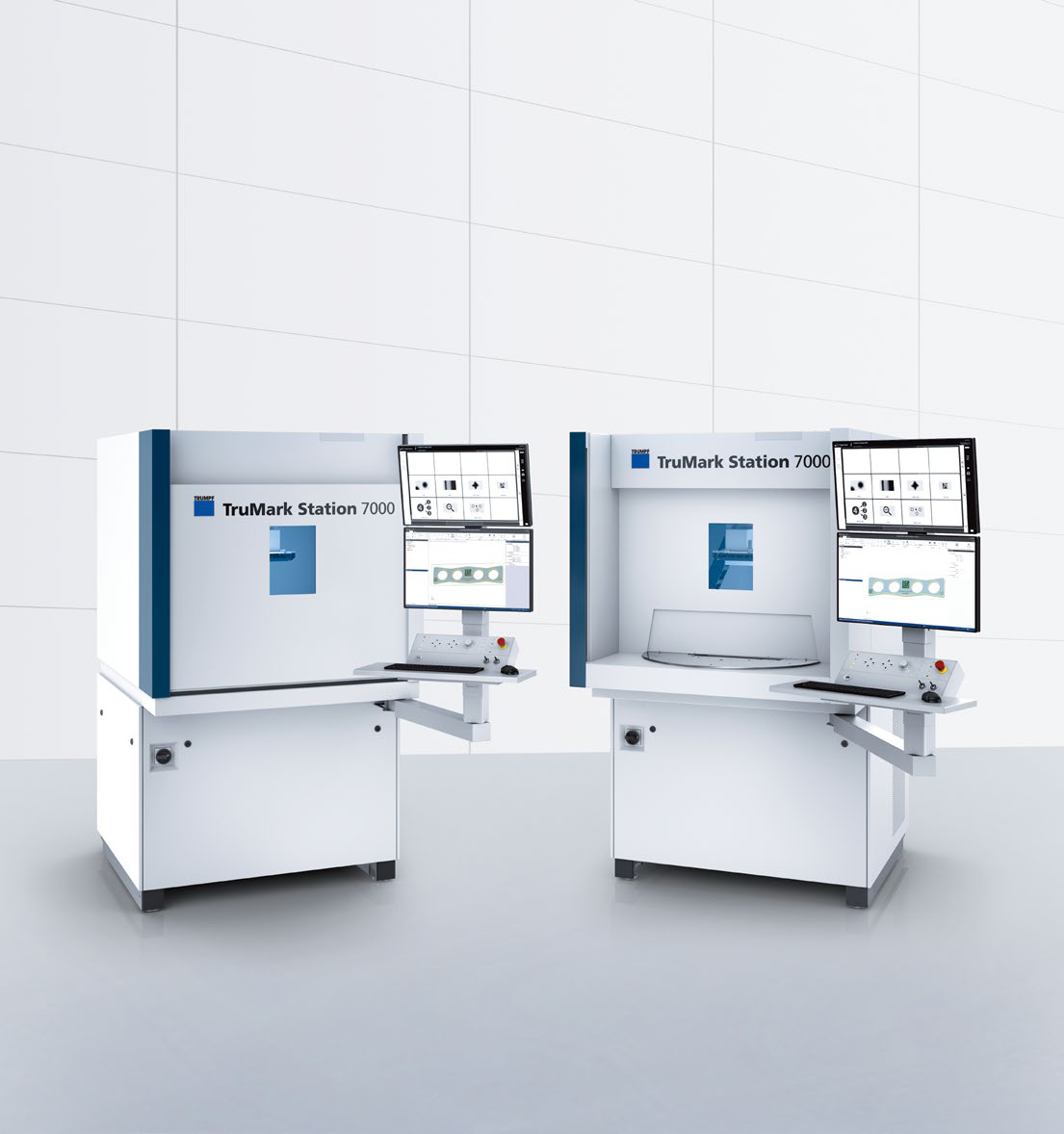

TruMark Station 7000 and TruMark Station 7000R
The TruMark Station 7000 series offers robust and flexible laser marking solutions designed for large and heavy components or multiple smaller parts. With its spacious interior dimensions and mineral cast base, it ensures precise and automatic processing for various applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Available Marking Lasers | TruMark Series 3000, 5000, 6030, TruMicro Mark Series 2000 |
| Work Station Dimensions (W×D×H) TruMark Station 7000 | 1150×1420×2000/2524mm |
| Work Station Dimensions (W×D×H) TruMark Station 7000R | 1150×1624×2000/2524mm |
| Weight (Without Laser, Supply Unit) TruMark Station 7000 | 1250kg |
| Weight (Without Laser, Supply Unit) TruMark Station 7000R | 1400kg |
| Electrical Connection (Voltage) | 120/230V |
| Electrical Connection (Frequency) | 50/60Hz |
| Electrical Connection (Amperage) | 16A at 230V |
| Max Workpiece Dimensions (W×D×H) | 960×375×500mm |
| Max Workpiece Weight | 75kg |
| Available Axes | X | Y | Z |
| Max Traverse Path | 650×350×500mm |
| Rotary Axis | 125mm |
| Suction System | Built-in, external fitting is possible |
