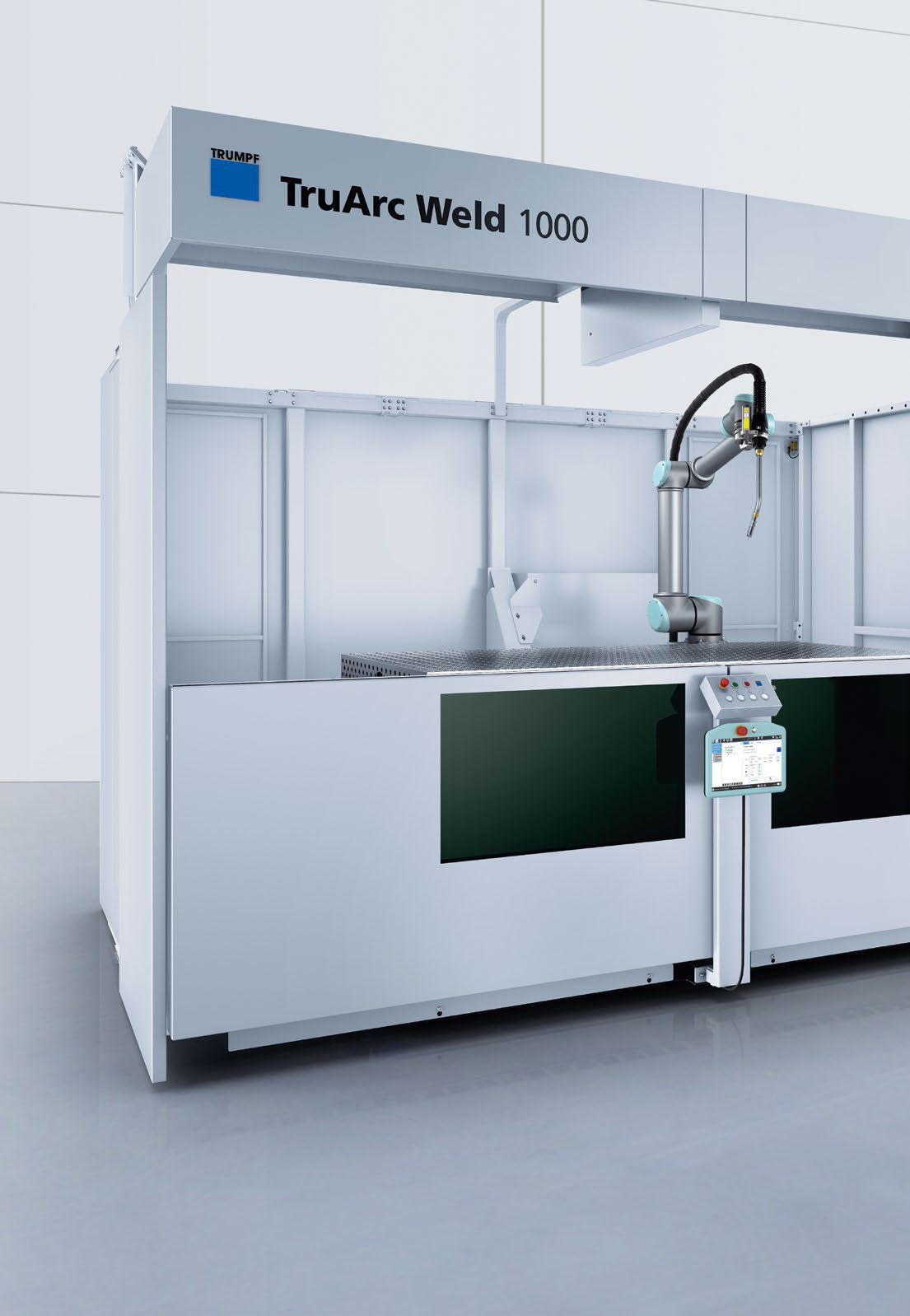

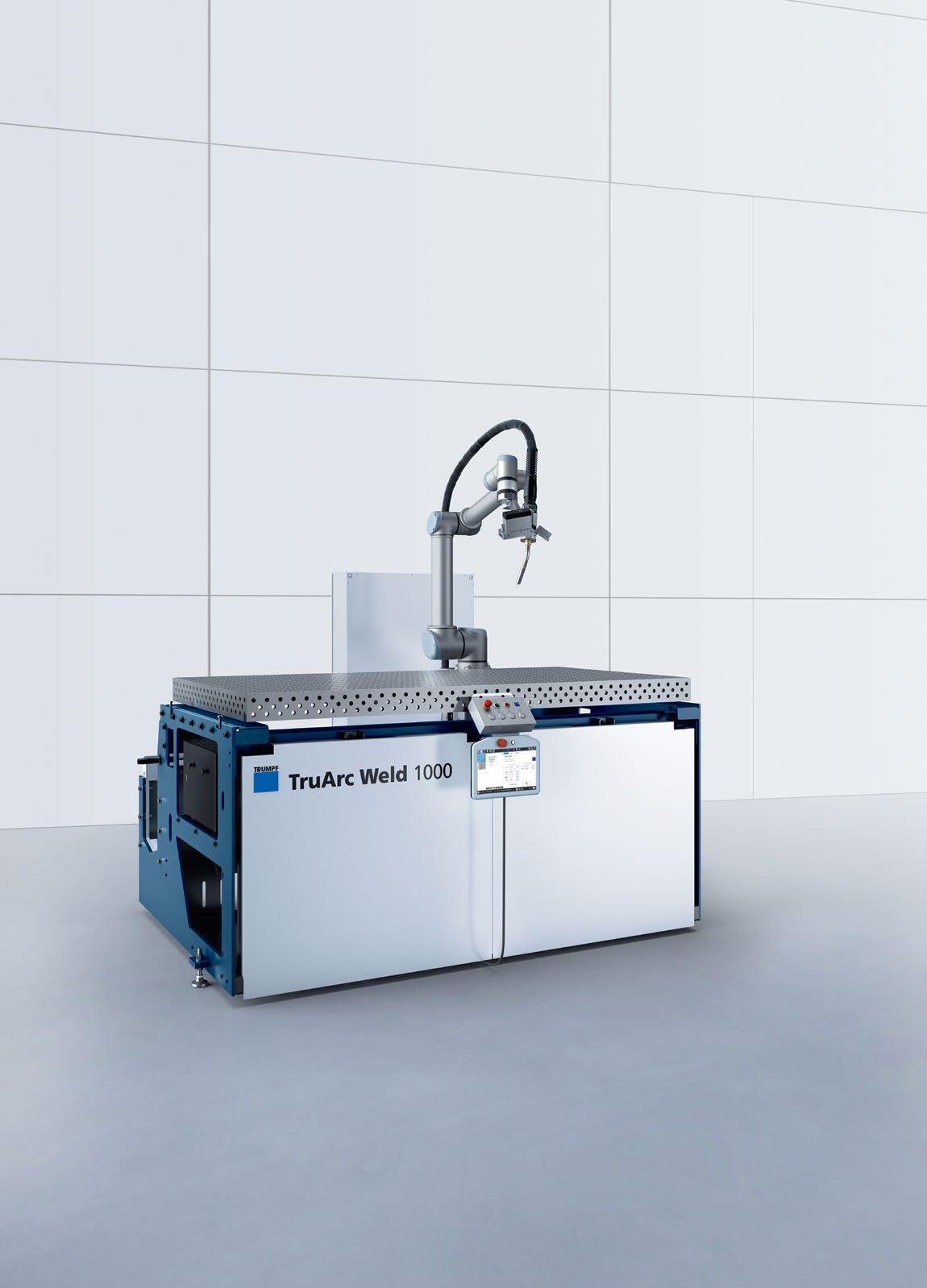

TruArc Weld 1000
TruArc Weld 1000 is an automated arc welding solution designed for easy operation, high productivity, and flexibility. It is suitable for small lot sizes and simple fixtures, making it profitable even for single parts.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Axis Data Model | Collaborative industrial robotic arm |
| Number of Axes | 6 |
| Range (mm) | 1300 |
| Repeatability (mm) | ±0.05 |
| Welding Source Model | Fronius TPS 320i C PULSE |
| Welding Current Range (A) | 3-320 |

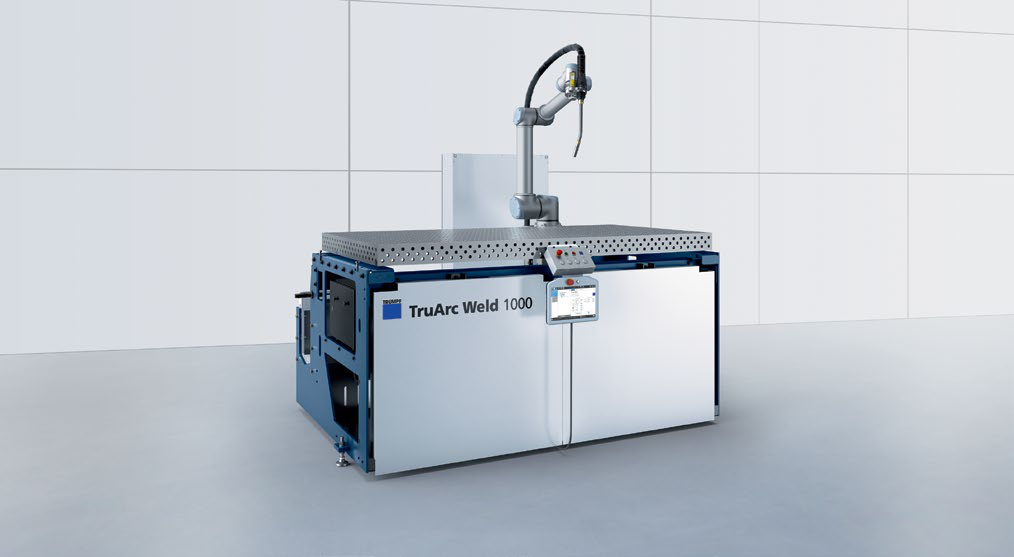

| Basic Version Dimensions (mm) | 2540×2250×1600 |
| Weight of Basic Version (kg) | 1317 |

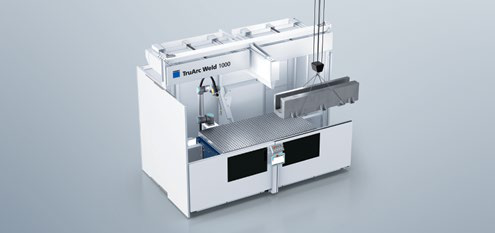

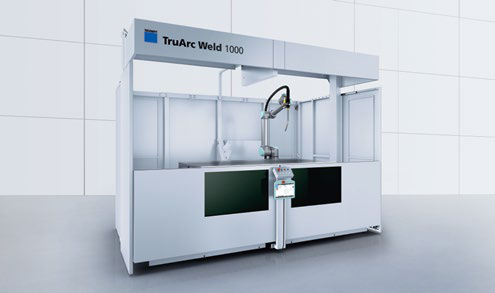

| Cabin Dimensions (mm) | 3605×2454×2818 |
| Weight Including Cabin (kg) | 2940 |
| Work Area Basic Version (mm) | Open space |
| Work Area Basic Version (mm) | no physical outer perimeter |

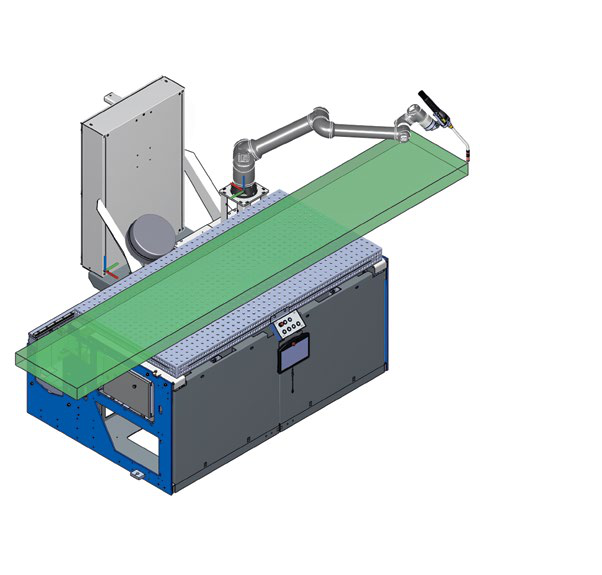

| Work Area with Open Center Partition (mm) | 3200×1000×1150 |

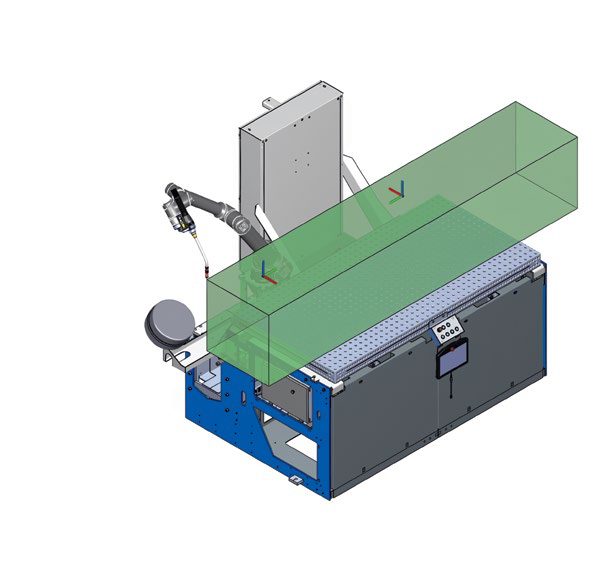

| Work Area with Closed Center Partition (mm) | 1600×1000×1150 |
| Work Table Dimensions (mm) | 2000×1000×100 |
| Work Table Hole Pattern | D16 in a 50×50 mm grid |
| Welding Equipment | Fronius TPS 320i C PULSE, PMC, water-cooled 350 A torch, external wire feed system |
