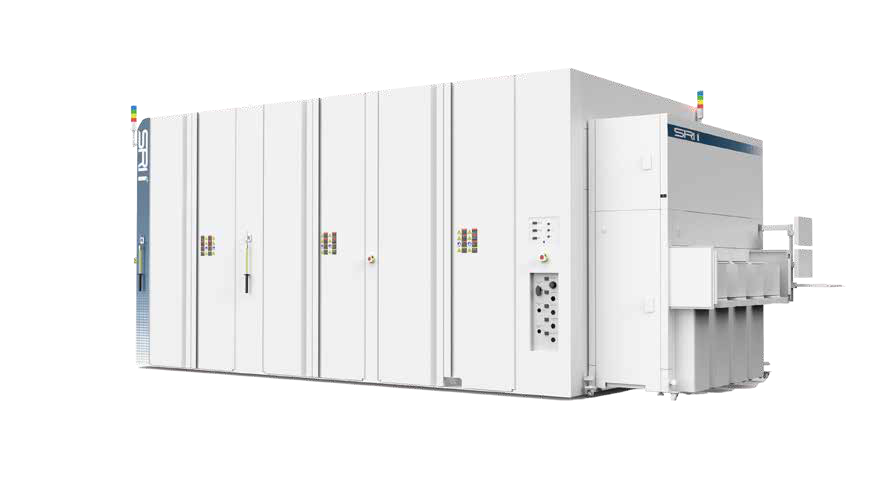

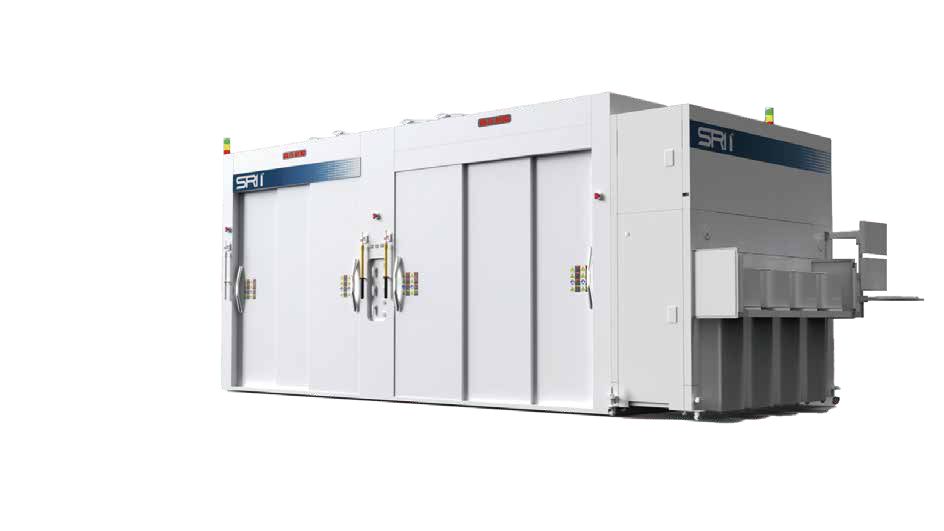

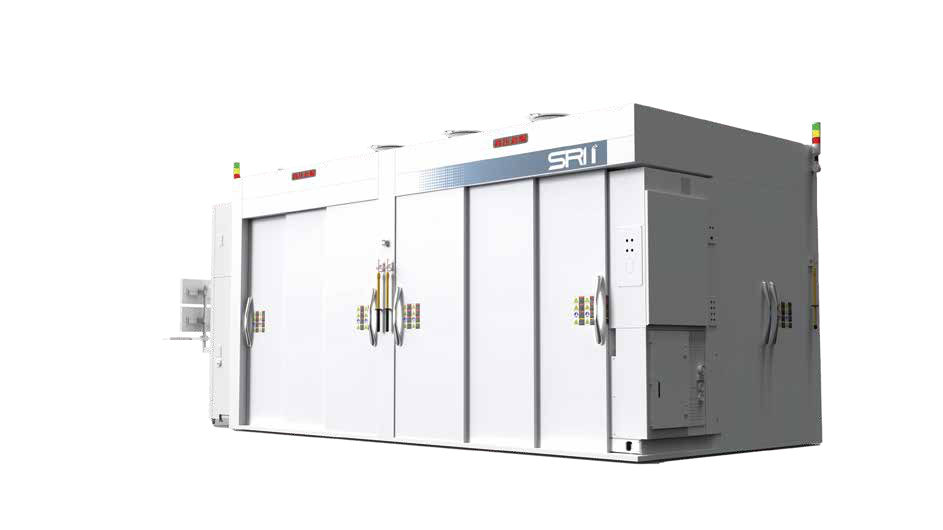

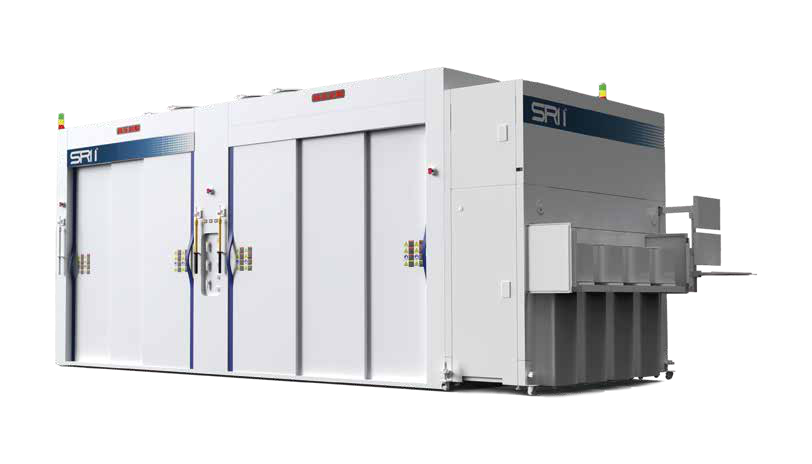

SRII-300
The SRII-300 medium current ion implanter is designed for advanced applications in storage, logic, memory, power, and CIS. It features precise angle control, comprehensive range measurement, and high production design.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 7.52×3.19×3.08m |
| Wafer Size | 200mm/300mm |
| Species | B/P/As (expandable) |
| Application | Logic/Memory/Power/CIS etc. |
| Energy Range | 2-900keV |
| Energy Accuracy | ±1% |
| Dose Range | 1E11-1E16 ions/cm² |
| Dose Uniformity | 0.5% |
| Dose Repeatability | 0.5% |
| Autotune Success | 95% |
