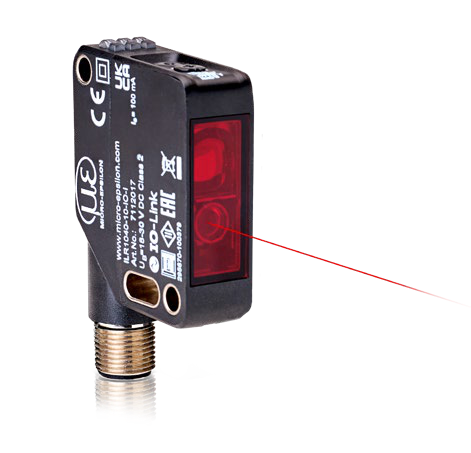

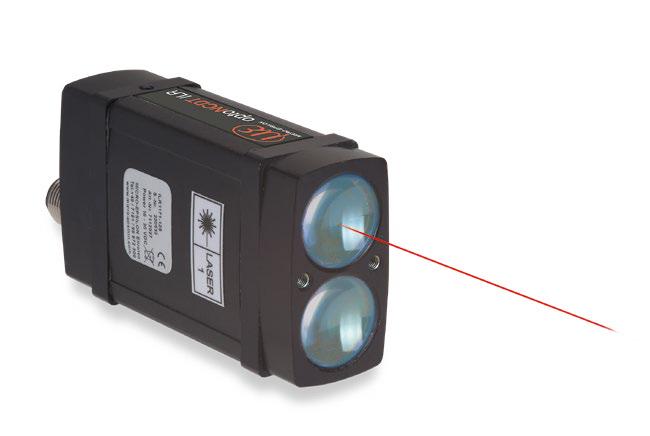

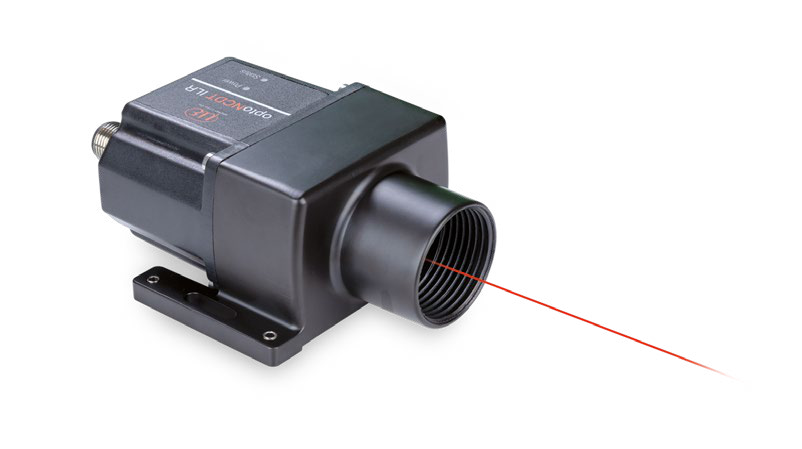

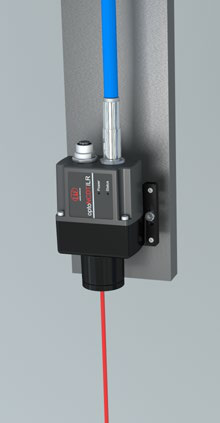

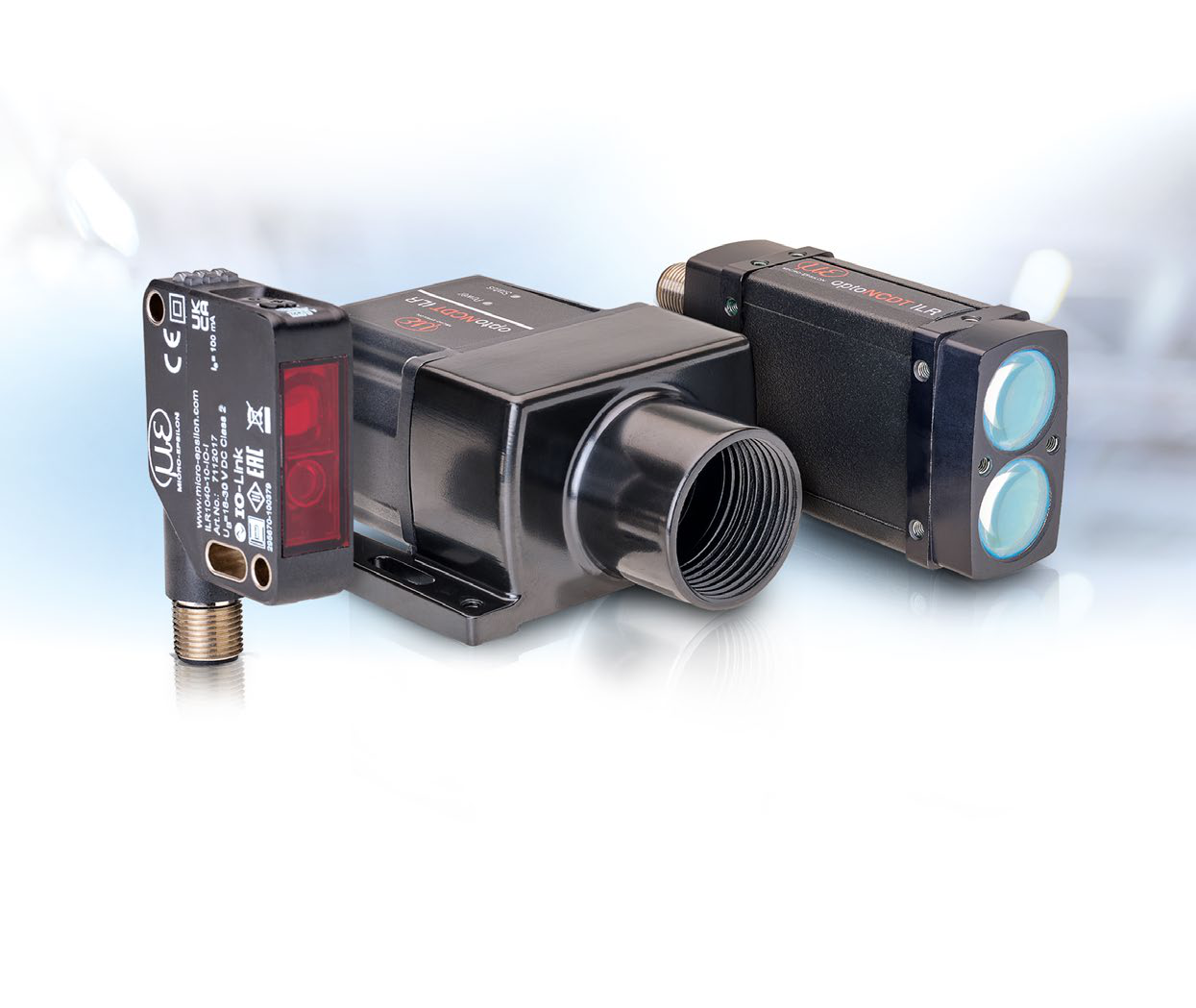

optoNCDT ILR
The optoNCDT ILR series offers high-performance laser distance sensors designed for non-contact distance measurements. These sensors are ideal for industrial applications requiring precise and reliable measurements over long distances.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measuring Range ILR1040x | 0.03-10m (without reflector), 60-150m (with reflector) |
| Measuring Range ILR3800 | 0.05-100m (without reflector), 35-150m (with reflector) |
| Measuring Range ILR1171 | 0.2-125m (without reflector), 0.2-270m (with reflector) |
| Resolution | 1mm |
| Linearity | typ. ±20mm (ILR104x), ≤60mm (ILR1171), ≤1mm (ILR3800) |
| Repeatability | <3mm (ILR104x), <6mm (ILR1171), <300μm (ILR3800) |
| Light Source | Semiconductor laser <1mW, 660nm (ILR104x), 905nm (ILR1171), 655nm (ILR3800) |
| Laser Class | Class 1 (ILR104x, ILR1171), Class 2 (ILR3800) |
| Permissible Ambient Light | 50,000lx |
| Supply Voltage | 10-30VDC |
| Power Consumption | <3W (ILR1171), <1.5W (ILR3800), 25mA (ILR104x) |
| Digital Interface | IO-Link (ILR104x), RS422/RS232/EtherNet/IP (ILR3800, ILR1171) |
| Analog Output | 4-20mA, 0-10V |
| Protection Class | IP67/IP69K (ILR104x), IP67 (ILR3800, ILR1171) |
| Operating Temperature | -30°C to +60°C (ILR104x, ILR1171), -40°C to +55°C (ILR3800-H) |
| Weight | 37g (ILR104x), 140g (ILR1171), 207g (ILR3800) |
