wireSENSOR Draw-Wire Mechanics

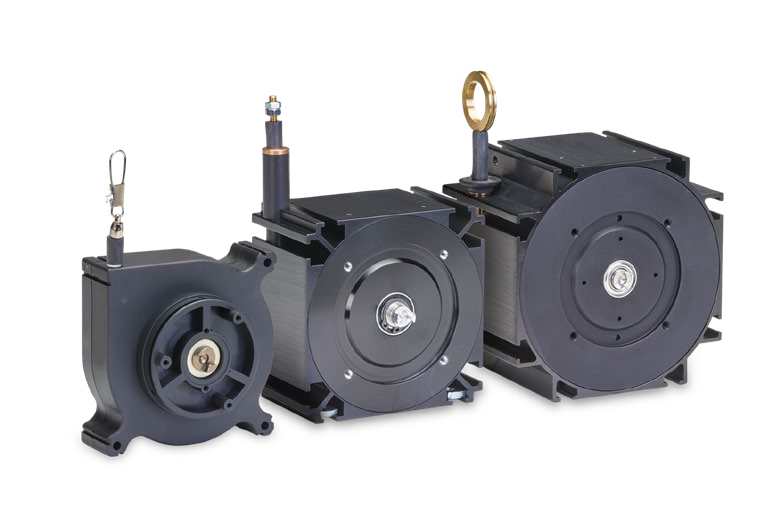

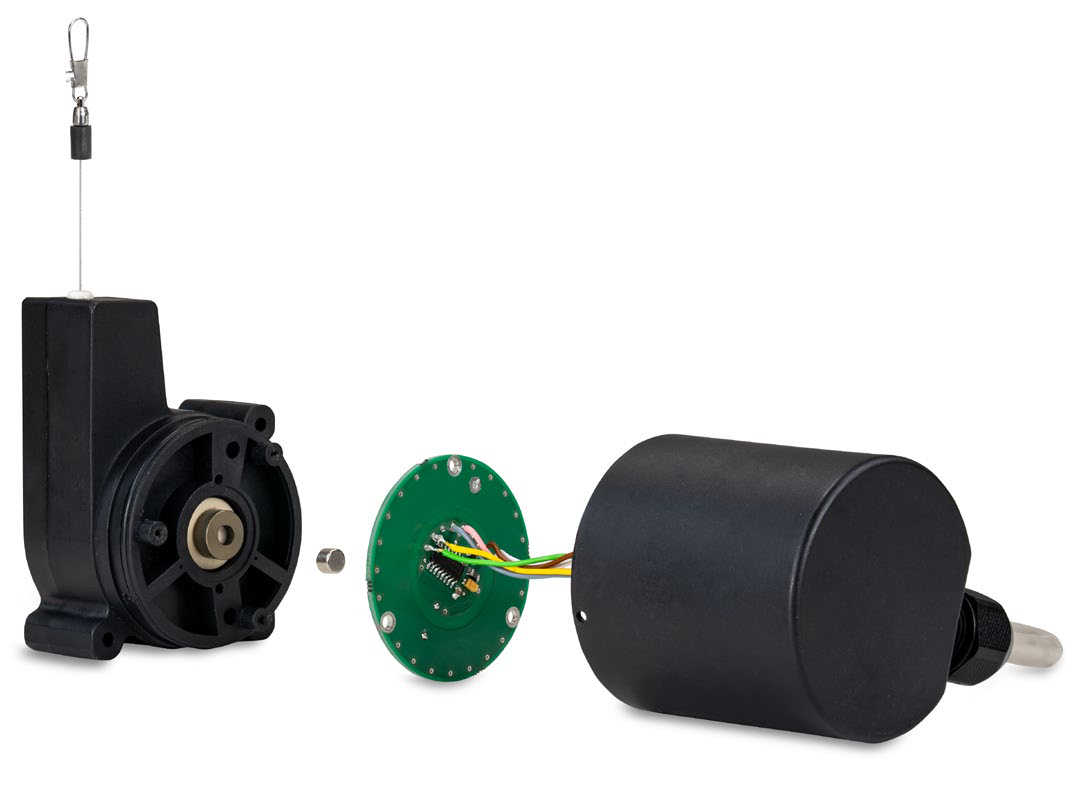

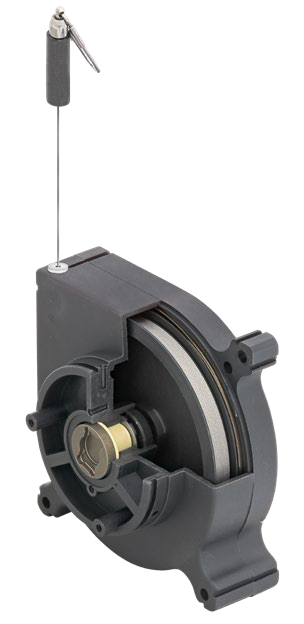

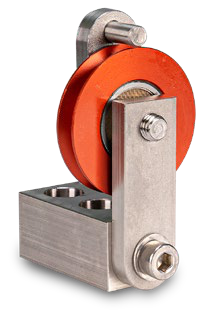

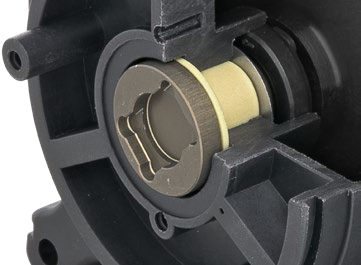

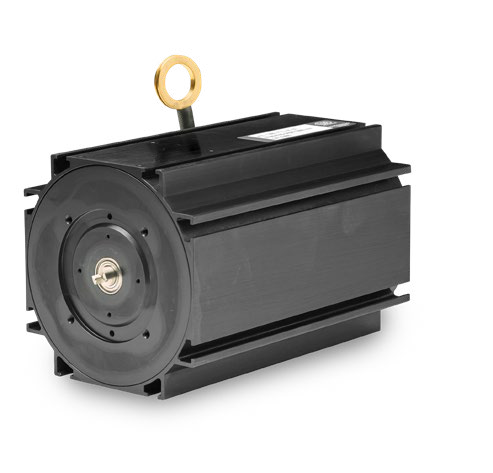

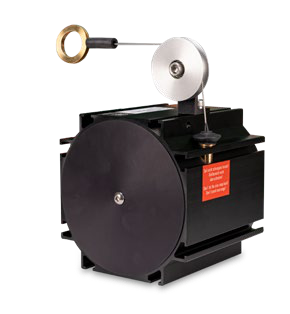

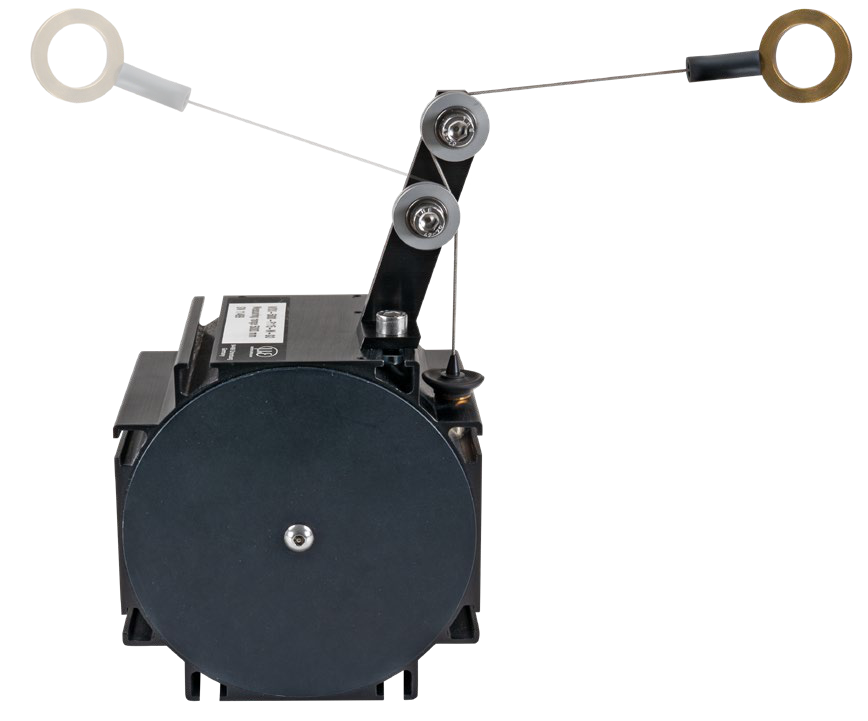

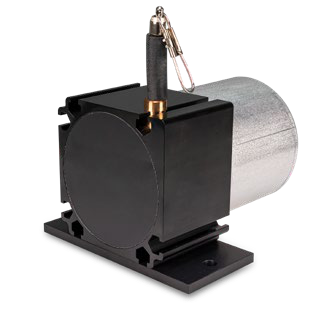

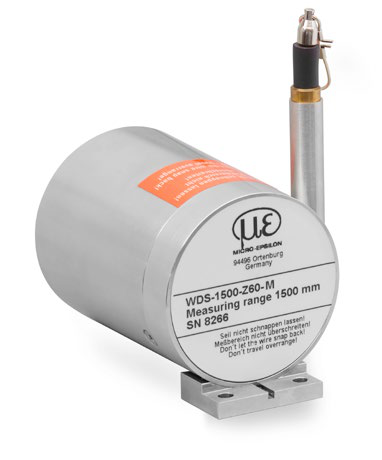

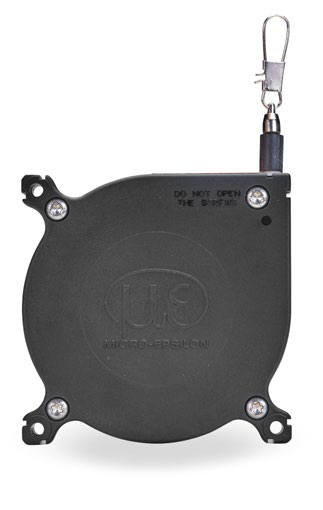

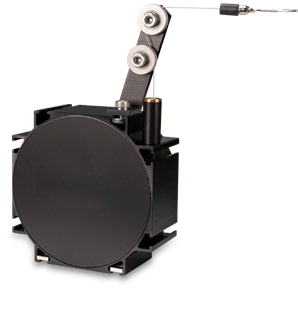

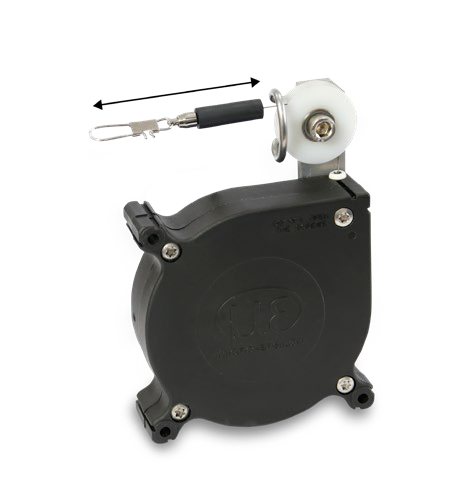

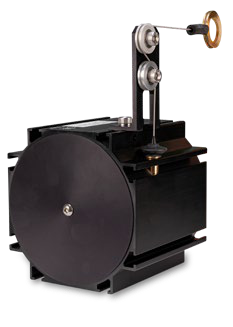

The wireSENSOR series offers robust draw-wire mechanics designed for mounting incremental or absolute encoders. These sensors measure linear movements using a highly flexible steel wire, ensuring high operational safety and long service life even under harsh industrial conditions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measuring Range (static 20Hz) | 2400mm, 2300mm, 5000mm, 8000mm, 2000mm, 2500mm, 3000mm, 5000mm, 7500mm, 10000mm, 15000mm, 30000mm, 40000mm, 50000mm |
| Output Type | Dependent on encoder |
| Resolution (static 20Hz) | Dependent on encoder |
| Linearity | ±0.01%FSO, ±0.02%FSO, ±0.03%FSO, ±0.05%FSO |
| Mean Distance per Rotation | 150.75mm, 237.8mm, 263.6mm, 199.8mm, 260.09mm, 315.07mm, 500mm |
| Suitable Rotary Encoder | Flange type ø58mm: synchro flange ø6mm shaft, clamping flange ø10mm shaft |
| Adapter Flange | Included in delivery |
| Wire Extension Force (max) | 8N, 9N, 10N, 16N, 22N, 24N, 25N |
| Wire Retraction Force (min) | 1N, 4N, 5N, 6N, 11N, 12N |
| Wire Acceleration (max) | 5g, 6g, 7g, 10g, 2g, 3g |
| Housing Material | Plastic, Aluminum, Glass-fiber reinforced plastic |
| Measuring Wire Material | Polyamide-coated stainless steel (ø0.45mm, ø0.61mm, ø0.8mm, ø1.0mm) |
| Installation | Mounting holes |
| Installation | grooves |
| Installation | slot nuts |
| Storage Temperature Range | -40°C to +80°C |
| Operation Temperature Range | -20°C to +80°C |
| Shock Resistance (DIN EN 60068-2-29) | 50g/10ms in 3 axes, 2 directions, 1000 shocks each |
| Vibration Resistance (DIN EN 60068-2-6) | 20g/20Hz, ±2kHz in 3 axes, 10 cycles each |
| Protection Class (DIN EN 60529) | Dependent on encoder |
| Weight | 0.2kg, 0.5kg, 1kg, 1.1kg, 1.4kg, 1.9kg, 2.8kg, 3.2kg, 9.5kg, 10kg, 11kg |
Applications
Key Features
Datasheet
Supplier Information
