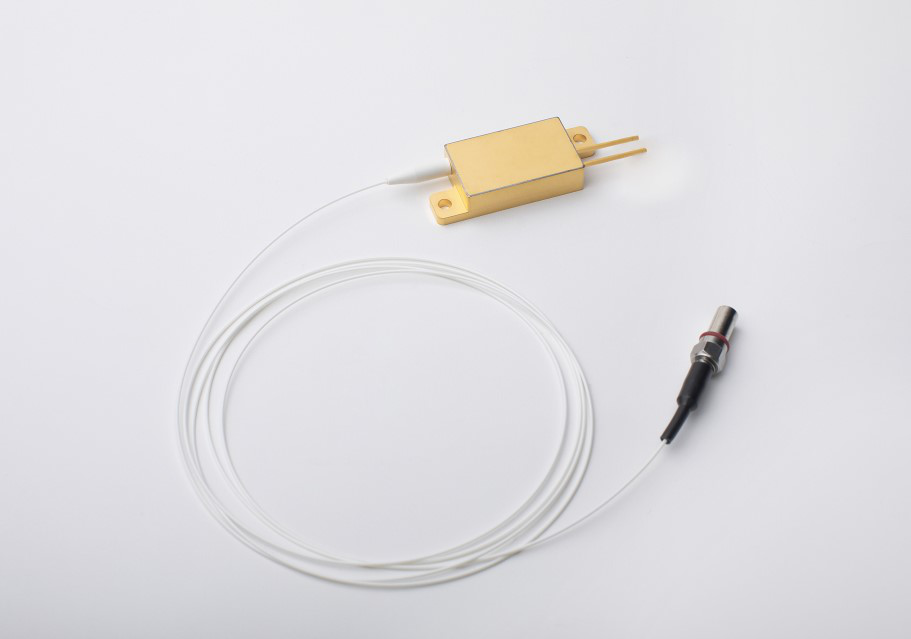

High Power Fiber Coupled Diode Laser - FCMSE55 Series
The FCMSE55 Series is a high-power fiber-coupled diode laser designed for advanced manufacturing, health, information technology, and scientific research applications. It features high brightness, compact housing, hermetically sealed housing, and conduction cooling.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CW-nominal output power (W) FL-FCMSE55-15-808-200 | 15W |
| CW-nominal output power (W) FL-FCMSE55-25-976-105 | 25W |
| Centroid wavelength (nm) FL-FCMSE55-15-808-200 | 808nm |
| Centroid wavelength (nm) FL-FCMSE55-25-976-105 | 976nm |
| Wavelength tolerance (±nm) FL-FCMSE55-15-808-200 | 3 |
| Wavelength tolerance (±nm) FL-FCMSE55-25-976-105 | 10 |
| Spectral width (FWHM) FL-FCMSE55-15-808-200 | ≤6 |
| Spectral width (FWHM) FL-FCMSE55-25-976-105 | ≤6 |
| Wavelength Temp. drift (nm/°C) FL-FCMSE55-15-808-200 | ~0.28 |
| Wavelength Temp. drift (nm/°C) FL-FCMSE55-25-976-105 | ~0.34 |
| Feedback Protection (1040nm-1100nm) (dB) FL-FCMSE55-15-808-200 | / |
| Feedback Protection (1040nm-1100nm) (dB) FL-FCMSE55-25-976-105 | 30dB |
| Fiber included FL-FCMSE55-15-808-200 | Yes |
| Fiber included FL-FCMSE55-25-976-105 | Yes |
| Fiber core diameter (μm) FL-FCMSE55-15-808-200 | 200μm |
| Fiber core diameter (μm) FL-FCMSE55-25-976-105 | 105μm |
| Numerical aperture FL-FCMSE55-15-808-200 | 0.22 |
| Numerical aperture FL-FCMSE55-25-976-105 | 0.22 |
| Fiber optic connector FL-FCMSE55-15-808-200 | SMA905(SF) |
| Fiber optic connector FL-FCMSE55-25-976-105 | SMA905(SF) |
| Fiber length (m) FL-FCMSE55-15-808-200 | 1.5±0.1m |
| Fiber length (m) FL-FCMSE55-25-976-105 | 1.5±0.1m |
| Nominal diode heat sink Temp. (°C) FL-FCMSE55-15-808-200 | 25°C |
| Nominal diode heat sink Temp. (°C) FL-FCMSE55-25-976-105 | 25°C |
| Diode heat sink operation Temp. (°C) FL-FCMSE55-15-808-200 | +20...+30 |
| Diode heat sink operation Temp. (°C) FL-FCMSE55-25-976-105 | +20...+30 |
| Minimum heat sink capacity (W) FL-FCMSE55-15-808-200 | 50W |
| Minimum heat sink capacity (W) FL-FCMSE55-25-976-105 | 60W |
| Max. operation current start of life (A) FL-FCMSE55-15-808-200 | ≤7.3A |
| Max. operation current start of life (A) FL-FCMSE55-25-976-105 | ≤11A |
| Typical threshold current (A) FL-FCMSE55-15-808-200 | ≤1.8A |
| Typical threshold current (A) FL-FCMSE55-25-976-105 | ≤0.7A |
| Typical operation voltage (V) FL-FCMSE55-15-808-200 | ≤2.0V |
| Typical operation voltage (V) FL-FCMSE55-25-976-105 | ≤2.0V |
| Typical slope (W/A) FL-FCMSE55-15-808-200 | ≥2.0W/A |
| Typical slope (W/A) FL-FCMSE55-25-976-105 | ≥2.0W/A |
| Typical E/O efficiency (%) FL-FCMSE55-15-808-200 | ≥38% |
| Typical E/O efficiency (%) FL-FCMSE55-25-976-105 | ≥43% |

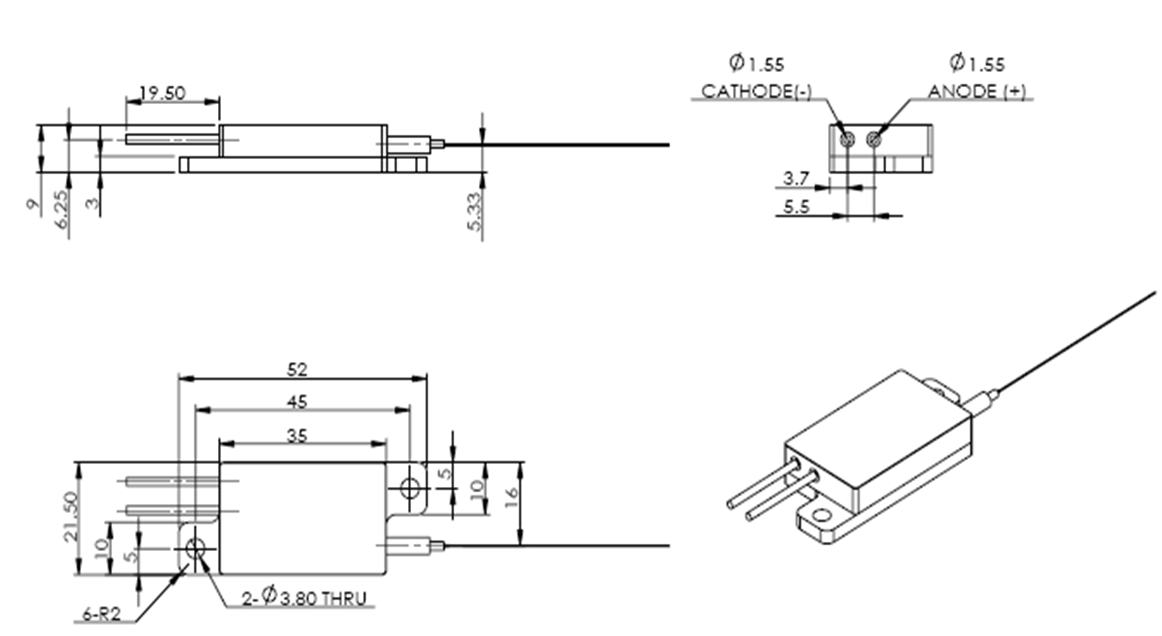

| Dimensions (mm³) FL-FCMSE55-15-808-200 | 63×21.5×9 |
| Dimensions (mm³) FL-FCMSE55-25-976-105 | 63×21.5×9 |
| Weight basic package (g) FL-FCMSE55-15-808-200 | 45g |
| Weight basic package (g) FL-FCMSE55-25-976-105 | 45g |
| Storage Temp. (°C) FL-FCMSE55-15-808-200 | -20...+80 |
| Storage Temp. (°C) FL-FCMSE55-25-976-105 | -20...+80 |
| Fiber FL-FCMSE55-15-808-200 | AR coated, 200μm |
| Fiber FL-FCMSE55-25-976-105 | AR coated, 105μm |
| Diode heat sink Temp. (°C) FL-FCMSE55-15-808-200 | 25°C |
| Diode heat sink Temp. (°C) FL-FCMSE55-25-976-105 | 25°C |
