What Is Macro Channel Water-Cooled Stacked Laser Diode Array? Working Principle & Key Applications of HD-8A50 / MA50-D10

1. Why Choose Macro Channel Water-Cooled Stacked Laser Arrays

Single laser bar delivers limited optical power. Discrete multi-bar assembly leads to loose optical layout, uneven heat dissipation and complicated water circuits. Air-cooled laser stacks have low power ceiling and cannot sustain stable long-duration pulsed output. Traditional micro-channel coolers require ultra-pure deionized water, bringing high maintenance cost and risk of channel clogging that burns out chips.

Macro channel water-cooled stacked laser diodes integrate dozens of laser bars into one vertical stacked module with large-diameter macro flow cooling channels. The wide water passage tolerates lower water quality, and each module can deliver 500W peak pulsed power with adjustable pulse width and repetition rate. Available in multiple wavelengths, they serve as the core light source for high-power pulsed medical aesthetic laser equipment.

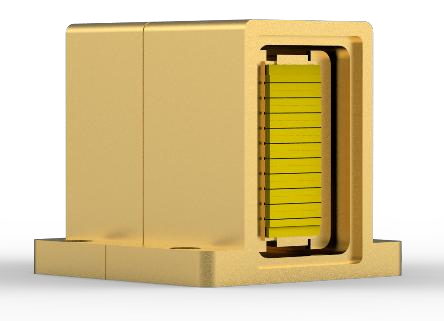

Huaguang HD-8A50-D10 (single 808nm) and MA50-D10 (755/808/1064 triple wavelength) are 10-bar integrated macro channel laser stacks with 500W peak power and 1–400ms tunable pulse width, perfectly matching mass production requirements of hair removal, spot removal and skin rejuvenation aesthetic devices.

2. Working Principle of Macro Channel Cooled Stacked Laser Arrays

HD/MA50-D10 series are pulsed laser emitters composed of 10 vertically stacked laser bars and macro channel heat sinks. The full working process covers carrier excitation, array laser emission, macro channel heat dissipation and pulse timing control:

1. Semiconductor Stimulated Emission: Each module integrates 10 laser bars. When 55A operating current is applied, carriers recombine in the active region above the 13A threshold current to generate laser of designated wavelength. HD model features fixed 808nm output, while MA supports mixed 755/808/1064 bars.
2. Vertical Stack Beam Collimation: Ten bars are vertically stacked with unified divergence angles (35° fast axis / 7.5° slow axis). Concentrated array output simplifies external lens shaping and improves light utilization efficiency.
3. Macro Channel Cooling Mechanism: The heat sink adopts large-diameter macro flow channels. Stable cooling is achieved with 0.4–0.6MPa water pressure and 2.5–4L/min flow rate. Compared with micro-channel coolers, macro channels resist scale clogging and work with standard deionized water without ultra-high purification.
4. Adjustable Pulsed Timing Drive: Supports 1–10Hz repetition frequency and 0–400ms wide pulse width. Different pulse durations correspond to fixed single pulse energy, enabling energy switching for various aesthetic treatment modes with stable pulsed output free of power collapse.

3. Core Product Highlights of HD-8A50 & MA50-D10

1. 500W high peak pulsed power: 10 integrated stacked bars deliver 500W peak output, wide pulse design meets high-energy demands of hair removal, picosecond auxiliary treatment and skin resurfacing;
2. Macro channel low water quality cooling: Large cooling flow channels prevent limescale blockage. Standard deionized water is acceptable, cutting cooling system consumable and maintenance cost significantly;
3. Standard dual models with multi-wavelength options: HD-8A50-D10 single 808nm wavelength; MA50-D10 compatible with combined 755/808/1064 bars for all-in-one multi-function aesthetic machines;
4. Wide adjustable pulse & frequency range: 1–10Hz repetition rate, 0–400ms continuously tunable pulse width, abundant energy levels matching diverse skin types and treatment items;
5. Stable electro-optical performance: 13A low threshold current, standard 55A operating current & 20V operating voltage. Linear power output across full pulse range without kink or long-term power drift;
6. Compact integrated brass package: Standard water ports and mounting holes on brass cooling housing, regular outline simplifying mechanical design of complete machines;
7. Stable wide operating temperature: 20–35°C functional range, well-controlled chip temperature under continuous long-pulse operation for extended service life;
8. Customization available: Wavelength, output power and bar quantity can be modified on demand to support differentiated aesthetic equipment development.

4. Key Product Applications

1. Medical Aesthetic Equipment (Primary Application): 808nm diode hair removal devices, 755nm picosecond skin rejuvenation systems, 1064nm Q-switched spot removal lasers, multi-functional beauty platforms;
2. Pulsed Photothermal Scientific Research: Infrared pulsed irradiation test light sources, lab equipment for biological photothermal effect study;
3. Industrial Pulsed Photothermal Processing: Local infrared pulse heating and small-scale material surface modification machines;
4. Laser Pump Sources: High-power pulsed solid-state laser array pumping modules;
5. Supporting Optical Skin Inspection: High-power excitation light sources for pulsed light imaging and skin spectral analysis;
6. Mass-Produced Commercial Beauty Devices: Standard light modules for desktop high-power laser machines in chain beauty salons.
