Photonics Source provides 16 products. Download datasheets, request quotes, and compare function, price, and availability.
-
imBT4171 Four-Channel 32Gb/s BERT
Data Rate: 9.95Gbps~32Gbps Output Type: Differential, AC coupled, 100Ω Termination Output Format: NRZ Termination: DC-Coupled Data Patterns PRBS: 2^7-1, 2^9-1, 2^15-1, 2^23-1, 2^31-1, user defined pattern -

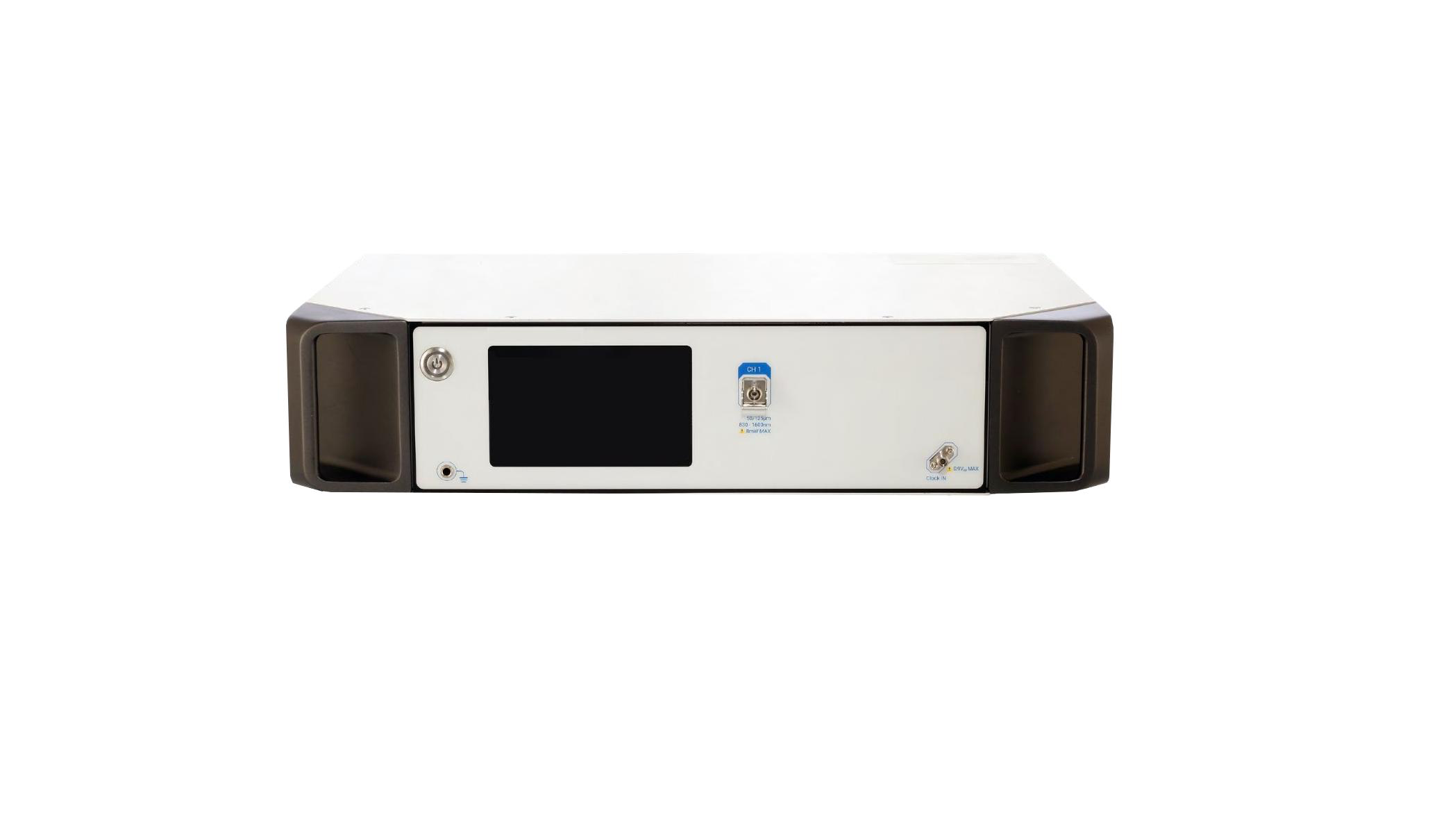

STEA-0400 Sampling Oscilloscope
Sampling Rate (samples/s): 1,000,000 Bandwidth (GHz): 33 (3dB) Input Range (Vppd): 1.0 (max) Damage Amplitude (Vppd): 1.7 (max) Connector Type: K (f) (50Ω) -
SIV5258-064 Series Multi-channel High-density Digital Current Source
Voltage Monitoring Range: 0-6.5V Output Current Range: 0-200mA Output Channels: 64 Voltage Monitoring Resolution: 0.001V Real-time Voltage Measurement Resolution: 0.001V -

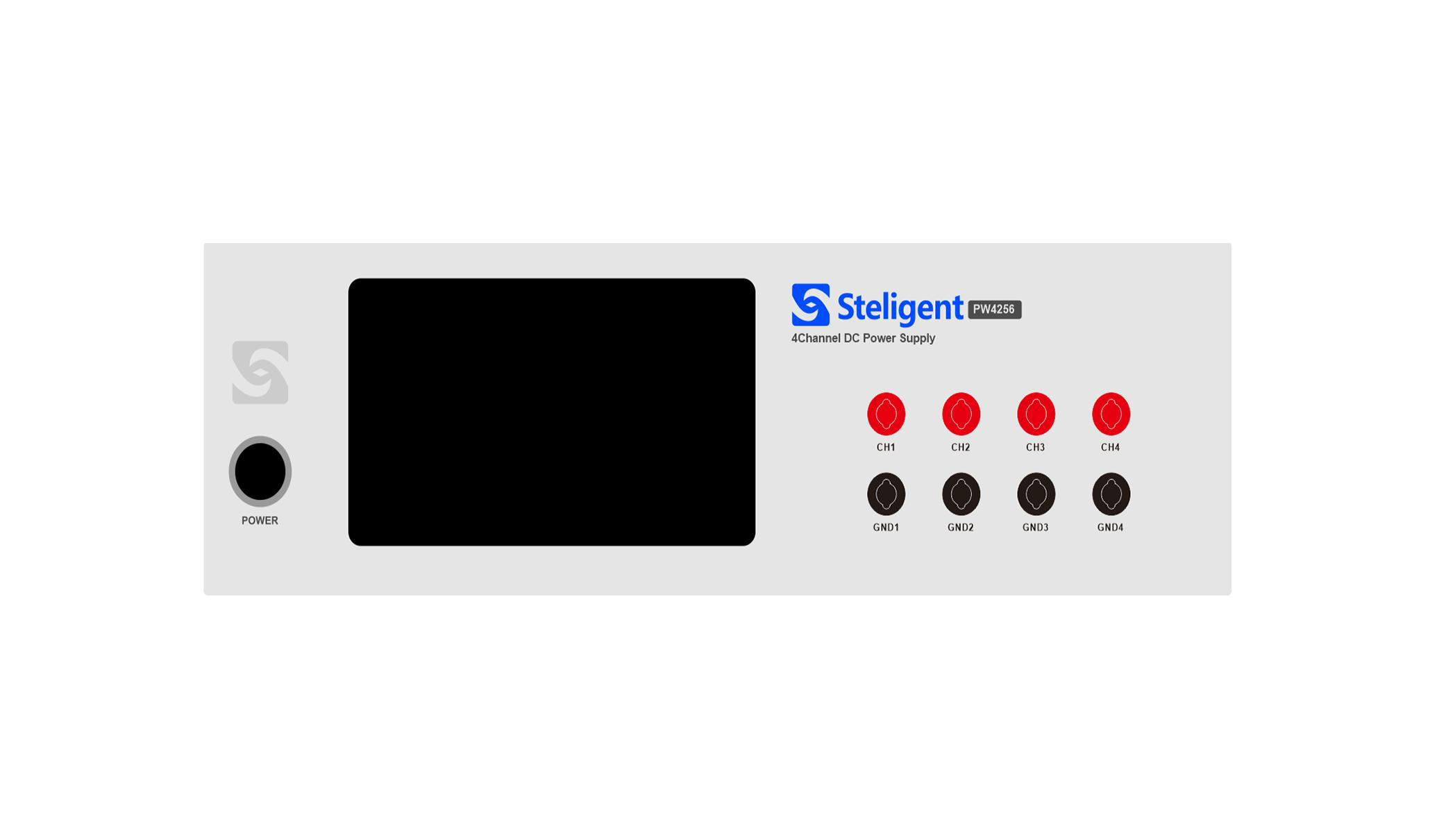

PW4256 4Channel DC Power Supply
Rated Output Voltage: 0.6-7V Rated Output Current: 12A Maximum Output Power: 336W Setting Accuracy Voltage: 1×10^-4+10mV Setting Accuracy Current: 5×10^-4+30mA -

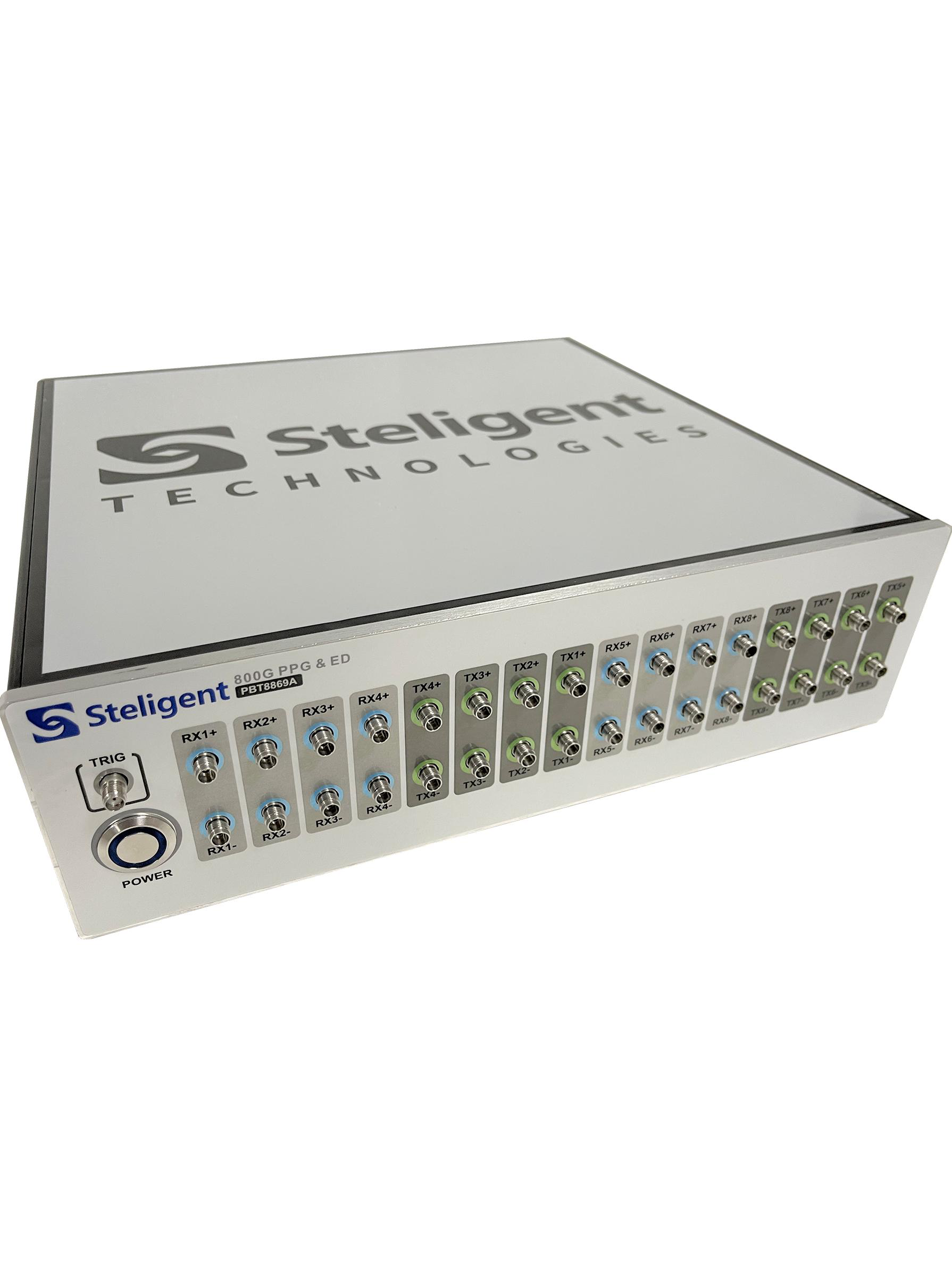

PBT8869A Series 800G Error Detector
Device Dimensions: 320mm(length)×335mm(width)×95mm(height) Communication Interface: LAN port Power Supply Voltage: 220VAC Power Consumption: ≤23W Weight: ≤4kg -
Three Channels Power Supply PW3255
Output Voltage Range: 0-32V Output Current Range: 0-5A Number of Channels: 3 Display: LCD Interface Type: USB -

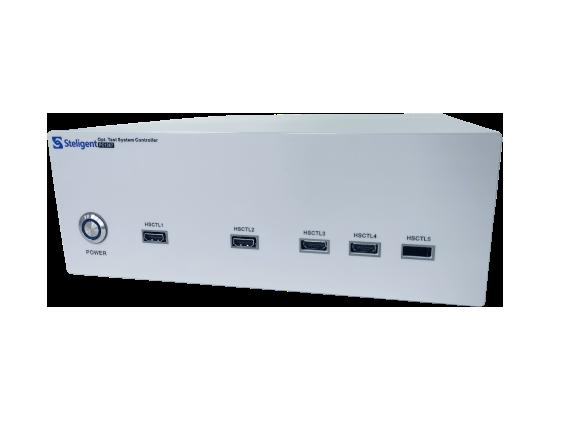

PC1267 - The Host of Optical Testing System
Power Switch: Yes RSSI Current Test: 0~300mA,1nA APD RSSI Current Test: 0~300mA,1nA APD Bias Output: 0~70V,0.01V APD Bias Current: 0~2mA,0.01mA -
PC1267X6_TR
APD Bias Supply: 0~70V, 精度0.01V RSSI Current Test: 0~300mA, 精度1nA TOSA IBIAS Supply: 0~200mA, 0.1mA级精度 DC Voltage Output: 1.5~4.5V, 精度100uV DC Current Output: 0~1.5A, 精度1mA -

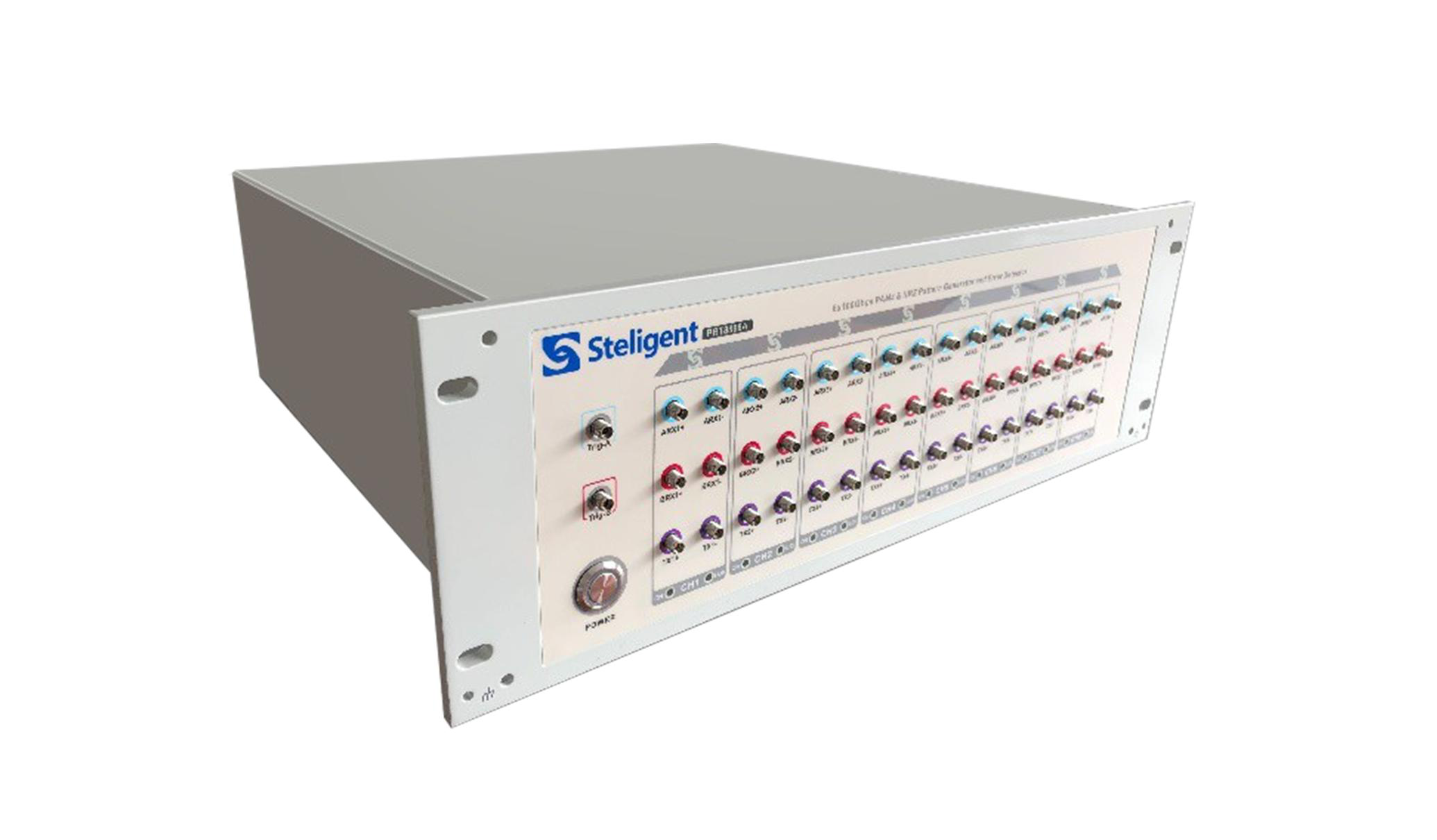

PBT8868A Multi-Channel BERT 56Gbaud
Output Type: Differential, AC-coupled, 100Ω Termination Single-ended Output Type: AC-coupled, 50Ω Termination Amplitude: 1000mVpp Rise Time: <20ps Data Output Format: PAM4 / NRZ -
GBT4299A Four-Channel 14.5Gb/s BERT
Data Rate: 1.25Gb/s to 14.5Gb/s Output Type Differential: AC coupled, 100Ω Termination Output Type Single-ended: AC coupled, 50Ω Termination Amplitude: 850mVpp Rise Time: 30ps, 20%-80% -
CR8672A 53Gbaud Optical Port Clock Recovery Instrument
Remote Control Interface: USB External Device: USB2.0 1 port; Power supply 220V 1 unit; Ground terminal 1 unit Power Supply Voltage: 100V to 240V, 50Hz/60Hz Power Consumption: <10W Operating Temperature: +5°C to +40°C -

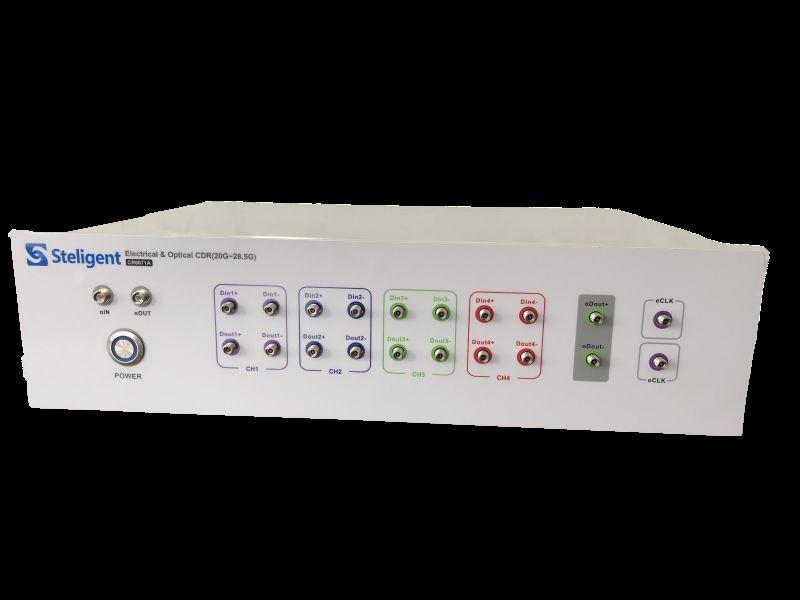

CR6671A Electrical & Optical NRZ CDR 25Gbps
Data Rate Support Range: 25-28Gbps Data Input Amplitude: 20-1200mV Peak-to-Peak Differential Input: 95-105Ω Input-AC Characteristics S11: -12dB Loss of Signal Detect: 15-160mVp-p -
BT6206 Eight-Channel 32Gb/s BERT (V2.8)
Data Rate: 20Gb/s~32Gb/s Output Type: Differential, AC coupled, 100Ω Termination; Single-ended, AC coupled, 50Ω Termination Output Amplitude: 1000mVpp Rise Time: 12.48ps Jitter: 515fs RMS Jitter; 3.18ps Peak to Peak Jitter -

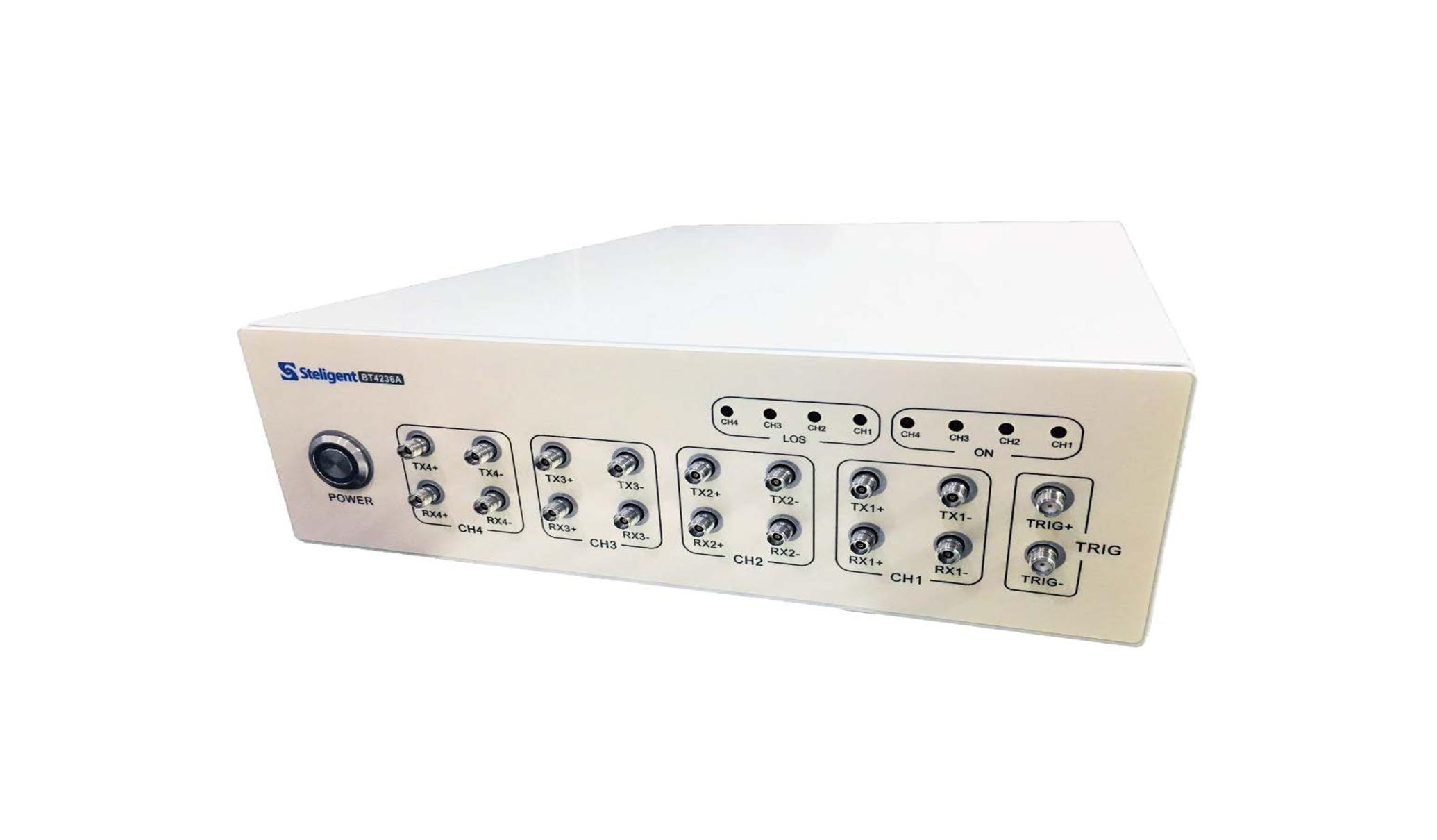

BT4236A Four-Channel 32Gb/s BERT (V2.6)
Data Rate: 20Gbps~32Gbps Operating System: Windows 7 with .NET v2.0, USB 2.0 interface Pattern Generator Supported Patterns: 2^7-1, 2^9-1, 2^15-1, 2^23-1, 2^31-1, user-defined pattern Output Type: Differential, AC coupled, 100Ω Termination; Single-ended, AC coupled, 50Ω Termination Output Amplitude: 1000mVpp -

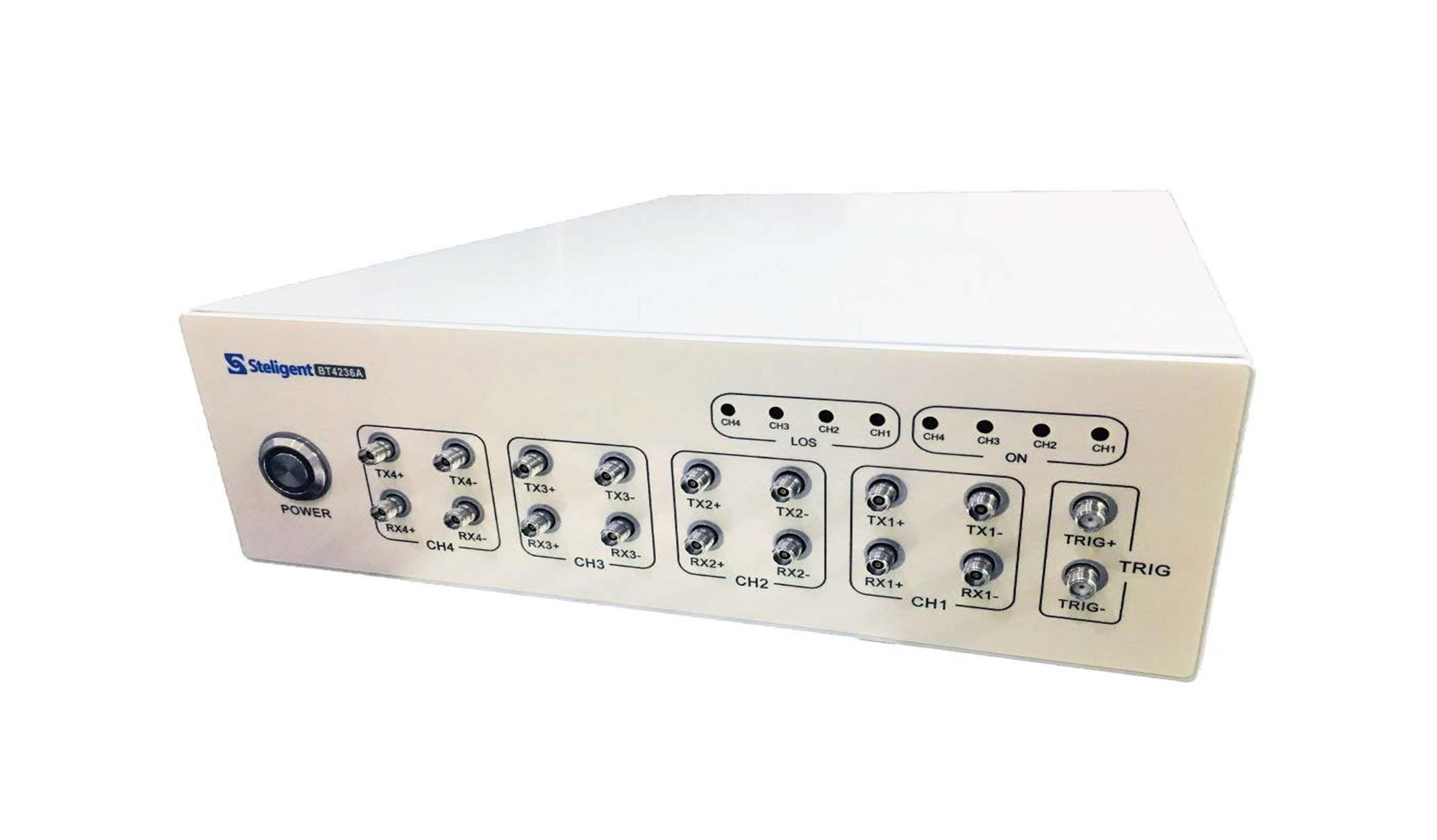

BT4236A Four-Channel 32Gb/s BERT
Data Rate: 20Gbps~32Gbps Output Type: Differential, AC-coupled, 100Ω Termination; Single-ended, AC-coupled, 50Ω Termination Output Amplitude: 1000mVpp Rise Time: 12.48ps (20%-80%) Jitter: 515fs RMS; 3.18ps Peak-to-Peak
