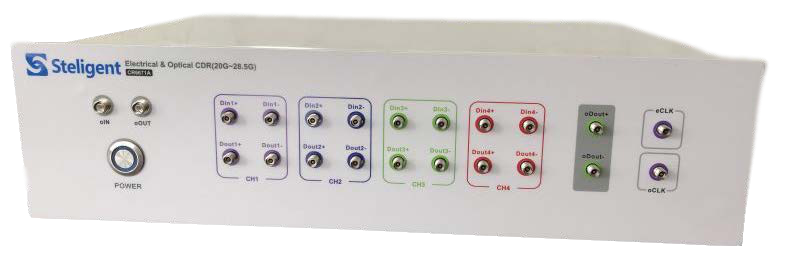

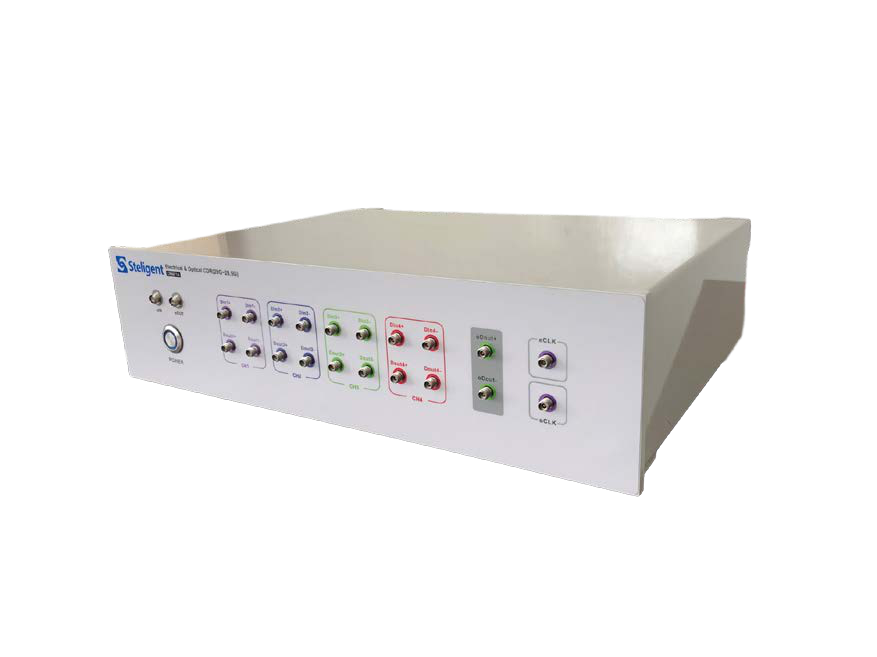

CR6671A Electrical & Optical NRZ CDR 25Gbps
The Steligent CR6671A is a high-performance, cost-effective NRZ clock and data recovery (CDR) device designed for 100G/200G TOSA/ROSA components and GPON/EPON/XGPON R&D and manufacturing environments. It supports continuous data rates between 25Gbps and 28Gbps and provides synchronous clock recovery for both electrical and optical data streams.
Specification Snapshot
Input-AC Characteristics S11
-12dB
Request a Quote
Download Datasheet
Overview
The Steligent CR6671A is a high-performance, cost-effective NRZ clock and data recovery (CDR) device designed for 100G/200G TOSA/ROSA components and GPON/EPON/XGPON R&D and manufacturing environments. It supports continuous data rates between 25Gbps and 28Gbps and provides synchronous clock recovery for both electrical and optical data streams.

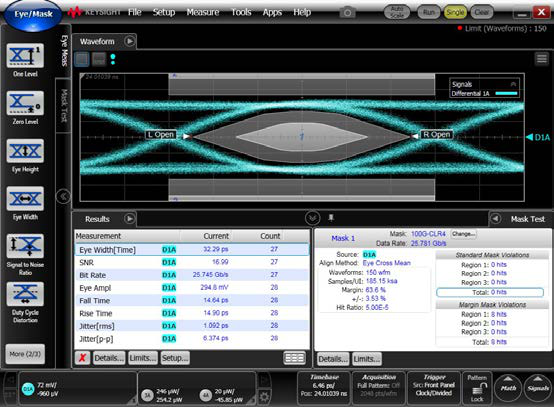

Specifications
| Parameter | Value |
|---|---|
| Data Rate Support Range | 25-28GbpsGbps |
| Data Input Amplitude | 20-1200mV |
| Peak-to-Peak Differential Input | 95-105Ω |
| Input-AC Characteristics S11 | -12dB |
| Loss of Signal Detect | 15-160mVp-p |
| CDR Lock Time | 1ms |
| Output Amplitude Minimum Swing Setting | 200mVppd |
| Output Amplitude Maximum Swing Setting | 1100mVppd |
| Output Jitter Total Jitter | 5pspp |
| Output Jitter Random Jitter | 70fsrms |
Applications
1. 100Gb/s Ethernet Optical Transceiver Modules 2. 100Gb/s OTN Optical Transceiver Modules 3. WDM transponders 4. 4 x 25G CFP2, CFP4 Optical Transceiver Modules 5. Line cards 6. CEI-28G-VSR 4x25G retimed interfaces 7. Transceiver Testing 8. High-Speed SerDes Testing & Characterization 9. Installation and Maintenance Test of Network Equipment

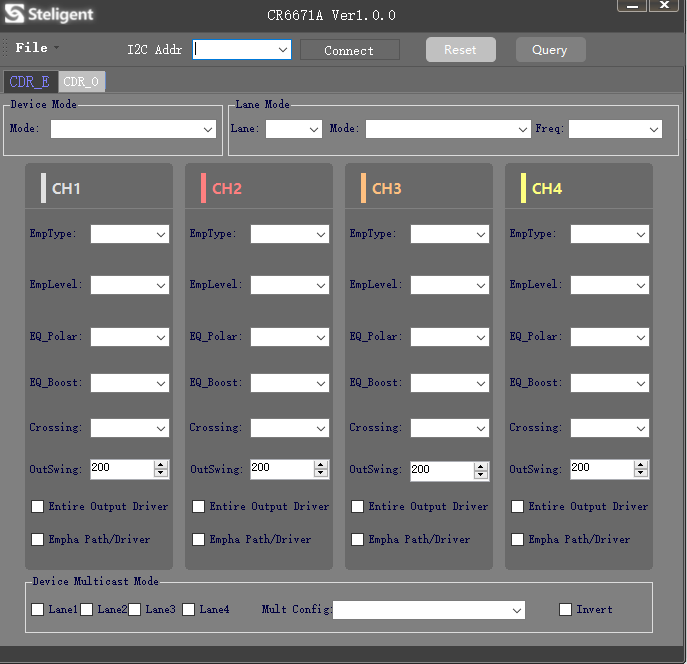

Key Features
1. 4 CH independent electrical channel and 1 CH optical channel 2. Continuous rates support: between 25Gb/s and 28Gb/s 3. Divided trigger output (low speed): 1/2 ~ 1/256 data rate clock output according to different options 4. No external reference clock required 5. Exceeds SONET/SDH requirements for jitter 6. Transfer/generation/tolerance 7. Output optical power is 90% ratio to input optical power 8. Optional limiting amplifier, equalizer, and bypass inputs 9. Programmable jitter transfer bandwidth to support G.8251 OTN 10. Output polarity invert 11. Programmable LOS threshold 12. Loss of signal (LOS) alarm (limiting amplifier mode only) 13. Loss of lock (LOL) indicator for both electrical channel and optical channel 14. Support optical to electrical data output 15. High signal quality, fast rise time and low intrinsic jitter 16. 4x 25-28Gb/s reference-free Clock and Data Recovery with adjustable equalization 17. Input jitter tolerance after equalization: 0.75UIpp 18. 55ps Output Jitter 19. Supports host channel loss >15dB 20. High-performance serial data inputs 21. Sensitivity better than 20mVppd 22. Adjustable continuous-time linear equalization up to 12dB 23. Programmable slicing level adjust 24. Wide programmable electrical output swing range 25. 200mVppd to 1100mVppd 26. Programmable two-tap output de-emphasis 27. 0dB to 6dB transmit equalization 28. Selectable pre- or post-cursor tap 29. Programmable crossing point adjust 30. Programmable lane polarity inversion 31. Fast USB Interface for ATS 32. CDR can be fully programmed and support for external API calls from other software e.g. LabView, C#, VEE 33. Controlled by embedded touchscreen GUI or from user software running on an external Windows 7 PC connected by a USB interface
