OADM Add-drop multiplexer
The Agilecom optical add/drop multiplexer (OADM) uses thin-film filter technology and offers low insertion loss, broad passband bandwidth, and high isolation. Its optical path is adhesive-free. It adds and drops specific wavelengths and is widely used in high-power WDM systems.
Save to Favorites
Overview
Specifications

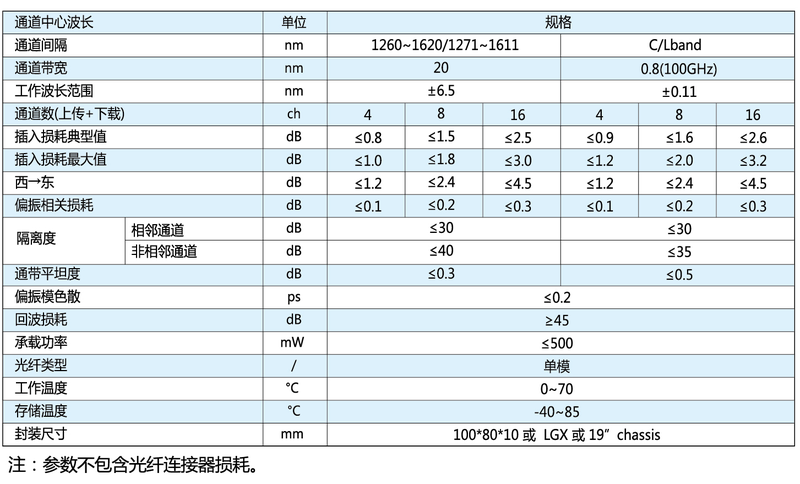

| Parameter | Value |
|---|---|
| 通道间隔 [规格列：1260~1620/1271~1611 / Parameters不Includes 光纤连接器损耗。] | 1260~1620/1271~1611 |
| 通道间隔 [规格列：C/Lband / Parameters不Includes 光纤连接器损耗。] | C/Lband |
| 通道带宽 [规格列：1260~1620/1271~1611 / Parameters不Includes 光纤连接器损耗。] | 20 nm |
| 通道带宽 [规格列：C/Lband / Parameters不Includes 光纤连接器损耗。] | 0.8(100GHz) |
| 工作波长范围 [规格列：1260~1620/1271~1611 / Parameters不Includes 光纤连接器损耗。] | ±6.5 nm |
| 工作波长范围 [规格列：C/Lband / Parameters不Includes 光纤连接器损耗。] | ±0.11 nm |
| 通道数(上传+下载) [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：4 / Parameters不Includes 光纤连接器损耗。] | 4 ch |
| 插入损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：4 / Parameters不Includes 光纤连接器损耗。] | typical:≤0.8 dB |
| 插入损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：4 / Parameters不Includes 光纤连接器损耗。] | max:≤1.0 dB |
| 偏振Related Categories损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：4 / Parameters不Includes 光纤连接器损耗。] | ≤0.1 dB |
| 通道数(上传+下载) [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：8 / Parameters不Includes 光纤连接器损耗。] | 8 ch |
| 插入损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：8 / Parameters不Includes 光纤连接器损耗。] | typical:≤1.5 dB |
| 插入损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：8 / Parameters不Includes 光纤连接器损耗。] | max:≤1.8 dB |
| 偏振Related Categories损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：8 / Parameters不Includes 光纤连接器损耗。] | ≤0.2 dB |
| 通道数(上传+下载) [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：16 / Parameters不Includes 光纤连接器损耗。] | 16 ch |
| 插入损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：16 / Parameters不Includes 光纤连接器损耗。] | typical:≤2.5 dB |
| 插入损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：16 / Parameters不Includes 光纤连接器损耗。] | max:≤3.0 dB |
| 偏振Related Categories损耗 [规格列：1260~1620/1271~1611 / 通道数(上传+下载)：16 / Parameters不Includes 光纤连接器损耗。] | ≤0.3 dB |
| 通道数(上传+下载) [规格列：C/Lband / 通道数(上传+下载)：4 / Parameters不Includes 光纤连接器损耗。] | 4 ch |
| 插入损耗 [规格列：C/Lband / 通道数(上传+下载)：4 / Parameters不Includes 光纤连接器损耗。] | typical:≤0.9 dB |
| 插入损耗 [规格列：C/Lband / 通道数(上传+下载)：4 / Parameters不Includes 光纤连接器损耗。] | max:≤1.2 dB |
| 偏振Related Categories损耗 [规格列：C/Lband / 通道数(上传+下载)：4 / Parameters不Includes 光纤连接器损耗。] | ≤0.1 dB |
| 通道数(上传+下载) [规格列：C/Lband / 通道数(上传+下载)：8 / Parameters不Includes 光纤连接器损耗。] | 8 ch |
| 插入损耗 [规格列：C/Lband / 通道数(上传+下载)：8 / Parameters不Includes 光纤连接器损耗。] | typical:≤1.6 dB |
| 插入损耗 [规格列：C/Lband / 通道数(上传+下载)：8 / Parameters不Includes 光纤连接器损耗。] | max:≤2.0 dB |
| 偏振Related Categories损耗 [规格列：C/Lband / 通道数(上传+下载)：8 / Parameters不Includes 光纤连接器损耗。] | ≤0.2 dB |
| 通道数(上传+下载) [规格列：C/Lband / 通道数(上传+下载)：16 / Parameters不Includes 光纤连接器损耗。] | 16 ch |
| 插入损耗 [规格列：C/Lband / 通道数(上传+下载)：16 / Parameters不Includes 光纤连接器损耗。] | typical:≤2.6 dB |
| 插入损耗 [规格列：C/Lband / 通道数(上传+下载)：16 / Parameters不Includes 光纤连接器损耗。] | max:≤3.2 dB |
| 偏振Related Categories损耗 [规格列：C/Lband / 通道数(上传+下载)：16 / Parameters不Includes 光纤连接器损耗。] | ≤0.3 dB |
| 隔离度-相邻通道 [规格列：1260~1620/1271~1611 / Parameters不Includes 光纤连接器损耗。] | ≤30 dB |
| 隔离度-相邻通道 [规格列：C/Lband / Parameters不Includes 光纤连接器损耗。] | ≤30 dB |
| 隔离度-非相邻通道 [规格列：1260~1620/1271~1611 / Parameters不Includes 光纤连接器损耗。] | ≤40 dB |
| 隔离度-非相邻通道 [规格列：C/Lband / Parameters不Includes 光纤连接器损耗。] | ≤35 dB |
| 通带平坦度 [规格列：1260~1620/1271~1611 / Parameters不Includes 光纤连接器损耗。] | ≤0.3 dB |
| 通带平坦度 [规格列：C/Lband / Parameters不Includes 光纤连接器损耗。] | ≤0.5 dB |
| 偏振模色散 [Parameters不Includes 光纤连接器损耗。] | ≤0.2 ps |
| 回波损耗 [Parameters不Includes 光纤连接器损耗。] | ≥45 dB |
| 承载功率 [Parameters不Includes 光纤连接器损耗。] | ≤500 mW |
| 光纤类型 [Parameters不Includes 光纤连接器损耗。] | Single-mode |
| 工作温度 [Parameters不Includes 光纤连接器损耗。] | 0~70 °C |
| 存储温度 [Parameters不Includes 光纤连接器损耗。] | -40~85 °C |
| 封装尺寸 [Parameters不Includes 光纤连接器损耗。] | 100*80*10 or LGX or 19” chassis |
