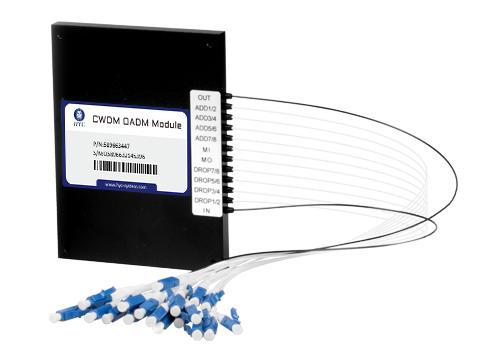

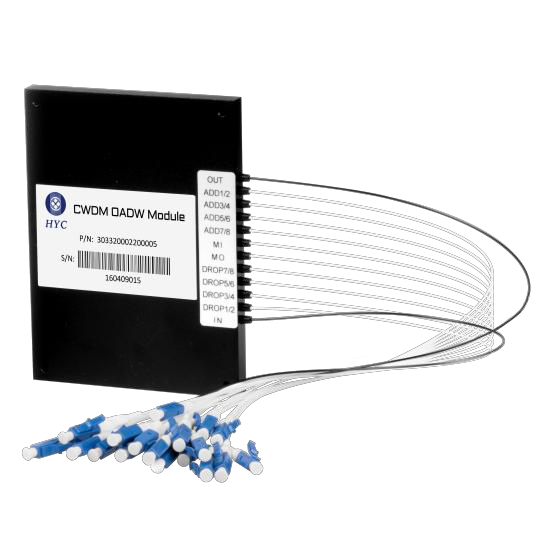

CWDM OADM Module
HYC's CWDM OADM module is based on TFF (thin-film filter) technology for multiplexing applications. It supports multiple configurations and wavelengths, enabling bidirectional transmission in optical networks. The module allows WDM signals to be uploaded and downloaded without optical-electrical-optical conversion. It is widely used in telecommunications, metropolitan area networks (MAN), and local area networks (LAN).
Specification Snapshot
Insertion Loss (dB)
≤1.0, ≤1.4, ≤1.8, ≤2.8dB
Adjacent Channel Isolation (dB)
≥30dB
Non-Adjacent Channel Isolation (dB)
≥45dB
Return Loss (dB)
≥45dB
Directivity (dB)
≥50dB
Package Dimensions (mm)
L120xW80xH18, L120xW80xH10, L100xW80xH10, MINI: L100xW45xH10, L80xW60xH12mm
Request a Quote
Download Datasheet
Overview
HYC's CWDM OADM module is based on TFF (thin-film filter) technology for multiplexing applications. It supports multiple configurations and wavelengths, enabling bidirectional transmission in optical networks. The module allows WDM signals to be uploaded and downloaded without optical-electrical-optical conversion. It is widely used in telecommunications, metropolitan area networks (MAN), and local area networks (LAN).
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) | ≤1.0, ≤1.4, ≤1.8, ≤2.8dB |
| Adjacent Channel Isolation (dB) | ≥30dB |
| Non-Adjacent Channel Isolation (dB) | ≥45dB |
| Return Loss (dB) | ≥45dB |
| Directivity (dB) | ≥50dB |
| Wavelength Stability (dB) | ≤0.5dB |
| Operating Temperature (°C) | -40~+85°C |
Applications
1. Telecommunications 2. Metropolitan Area Networks (MAN) 3. Local Area Networks (LAN)
Key Features
1. Low insertion loss and low polarization-dependent loss 2. High isolation 3. Wide operating wavelength range 4. Excellent temperature stability 5. High reliability and stability 6. Customizable package size, wavelength, and interface
Datasheet
Product Datasheet
PDF
Supplier Information
Founded in 2000, Guangdong HYC Technology Co., Ltd. has long been deeply engaged in technological innovation and intelligent manufacturing in the optical communication field, providing global customers with integrated customized solutions for the R&D, production, sales, and service of high-performance passive optical components.
Headquartered in Qingyuan, Guangdong, the company has built a modern office and production park of over 50,000 square meters, equipped with Class 10,000 and Class 100,000 high-standard cleanrooms. Adhering to the development philosophy of "Intelligent manufacturing as the foundation, quality builds trust," and relying on two major production bases in Qingyuan and Thailand as well as an R&D center in Shenzhen, the company has established a complete business system integrating independent R&D, large-scale production, and global delivery.
The company's main products include optical interconnection products such as fiber optic patch cords, flexible optical circuit Shuffle products, and optical module internal connection components, as well as high-end optical component products such as CPO co-packaged optics supporting components, multi-core fiber (MCF) interconnection solutions, and OCS optical switching core devices. It also produces PLC splitters and WDM wavelength division multiplexers. The products are widely used in core scenarios such as computing data centers, cloud computing, and 5G/6G mobile communications.
The company currently has more than 3,000 employees and an international-level R&D team. It has independently developed multiple technologies and obtained numerous domestic and international patent certificates. Its products are exported to markets in Europe, Asia, the Americas, and other regions.
