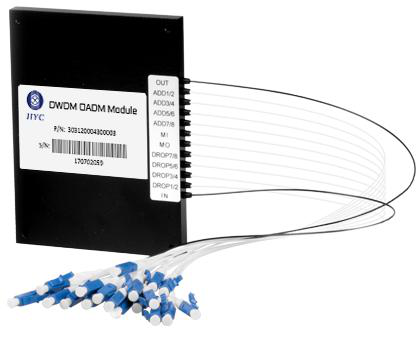

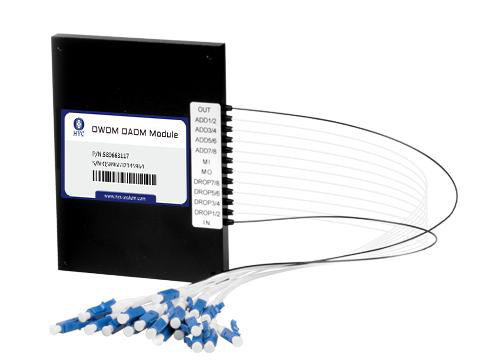

DWDM OADM Module
The DWDM OADM module by HYC is based on TFF (thin-film filter) technology, offering multiple channel sizes and flexible options. It enables the upload and download of WDM signals in optical transmission networks, making it an essential component in WDM optical networks. It is widely used in local area networks (LAN) and metropolitan area networks (MAN).
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Count 1 | 1 |
| Channel Count 2 | 2 |
| Channel Count 4 | 4 |
| Channel Count 8 | 8 |
| Operating Wavelength | 1520-1600nm |
| Channel Spacing | 100G/200G |
| Passband Bandwidth | ITU±0.11/ITU±0.25nm |
| Insertion Loss (dB) 1 | ≤1.0 |
| Insertion Loss (dB) 2 | ≤1.4 |
| Insertion Loss (dB) 4 | ≤1.8 |
| Insertion Loss (dB) 8 | ≤2.8 |
| Adjacent Channel Isolation (dB) | ≥28 |
| Non-Adjacent Channel Isolation (dB) | ≥45 |
| Return Loss (dB) | ≥45 |
| Directivity (dB) | ≥50 |
| Wavelength Stability (dB) | ≤0.5 |
| Package Dimensions (mm) | L120×W80×H18, L120×W80×H10, L100×W80×H10, MINI: L100×W45×H10, L80×W60×H12 |
| Operating Temperature (°C) | -40~+85 |
| Fiber Type | 0.9mm loose tube (customizable) |
| Connector Type | LC/PC (customizable) |
