Handheld scanner Xenon 1900GHD
Scans linear barcodes, two-dimensional codes, text, and images directly into a computer for processing, management, use, storage, or output.
Specification Snapshot
重量
147g
工作温度
0℃-50℃
储存温度
-40℃-70℃
Request a Quote
Download Datasheet
Overview
Scans linear barcodes, two-dimensional codes, text, and images directly into a computer for processing, management, use, storage, or output.

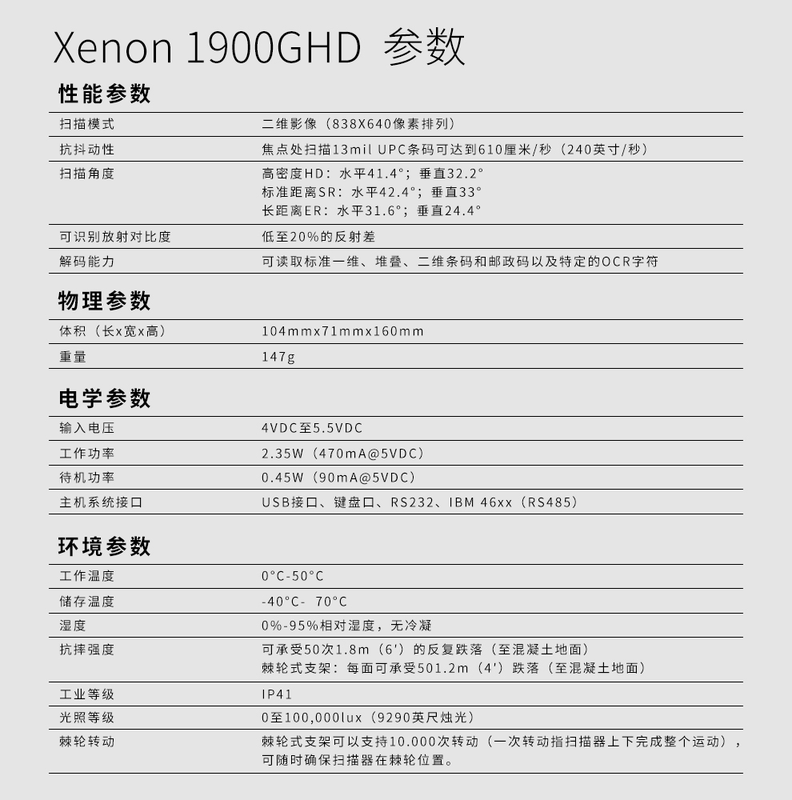

Specifications
| Parameter | Value |
|---|---|
| 扫描模式 | Two-dimensional image (838X640 pixel array) |
| 抗抖动性 | Scanning a 13mil UPC barcode at the focal point can reach 610cm/second (240inches/second) |
| 扫描角度 [高密度HD] | Horizontal 41.4°; Vertical 32.2° |
| 扫描角度 [标准距离SR] | Horizontal 42.4°; Vertical 33° |
| 扫描角度 [长距离ER] | Horizontal 31.6°; Vertical 24.4° |
| 可识别放射对比度 | Reflectance difference down to 20% |
| 解码能力 | Reads standard linear, stacked and two-dimensional barcodes, postal codes and specified OCR characters |
| 体积(长×宽×高) | 104 mm × 71 mm × 160 mm |
| 重量 | 147g |
| 输入电压 | 4VDC to 5.5VDC |
| 工作功率 [@5VDC)] | 2.35W(470mA@5VDC) |
| 待机功率 [@5VDC)] | 0.45W(90mA@5VDC) |
| 主机系统接口 | USB interface, keyboard port, RS232 and IBM 46xx (RS485) |
| 工作温度 | 0℃-50℃ |
| 储存温度 | -40℃-70℃ |
| 湿度 | 0%-95% relative humidity, non-condensing |
| 抗摔强度 | Withstands50 repeated drops from 1.8m (6′) onto concrete; ratcheting mount:each side withstands50 drops from 1.2m (4′) onto concrete |
| 工业等级 | IP41 |
| 光照等级 | 0 to 100,000lux (9290 foot-candles) |
| 棘轮转动 | The ratchet mount supports 10.000 rotations, each defined as a complete up-and-down scanner movement, and keeps the scanner secured at the ratchet position. |
