Multichannel Compressor
This Multi-Pass Cell (MPC) compressor module is designed for 1030nm ytterbium femtosecond platforms. Gas-based nonlinear spectral broadening and external dispersion compensation provide efficient, stable femtosecond pulse compression. Its compact integrated structure suits scientific and engineered-system integration.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating wavelength | 1030 nm |
| Repetition rate | 10 kHz – 1 MHz |
| Max pulse energy | Up to 2 mJ |
| Input pulse duration | 300 – 600 fs (typ.) |
| Compression factor | 10× |
| Output pulse duration | 35 – 50 fs (typ.) |
| Overall effciency | > 85% |
Key Features
Datasheet
Supplier Information
Related Products
-

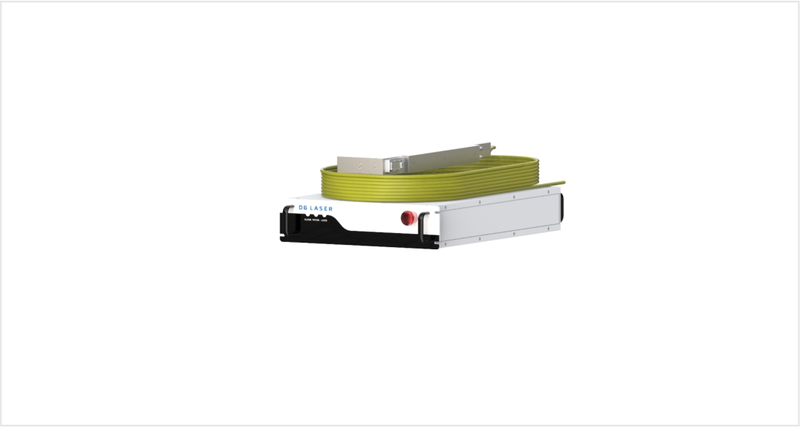

DGBA3000W Linear Laser, 3000W linear beam laser
Diffractive Optics
Daguanglaser
Output Power: 3000 W Center wavelength: 1070 nm Operating Mode: Continuous
-

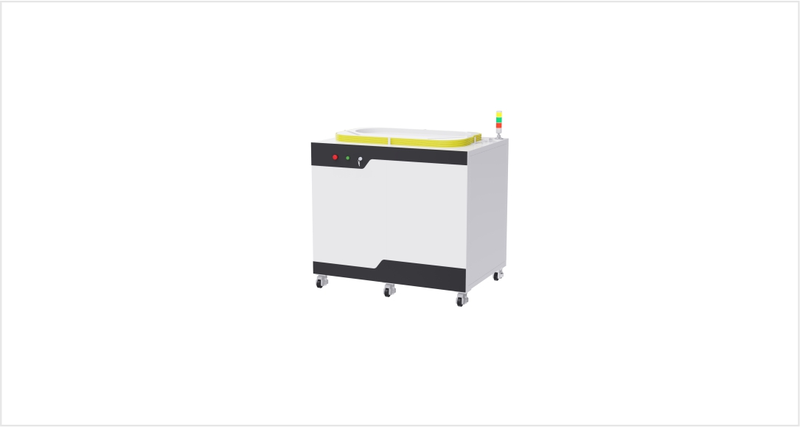

DGBA60000W Line-Spot Laser 60000W linear beam laser
Diffractive Optics
Daguanglaser
Output Power: 60000 W Center wavelength: 1068-1082 nm Operating Mode: Continuous
-

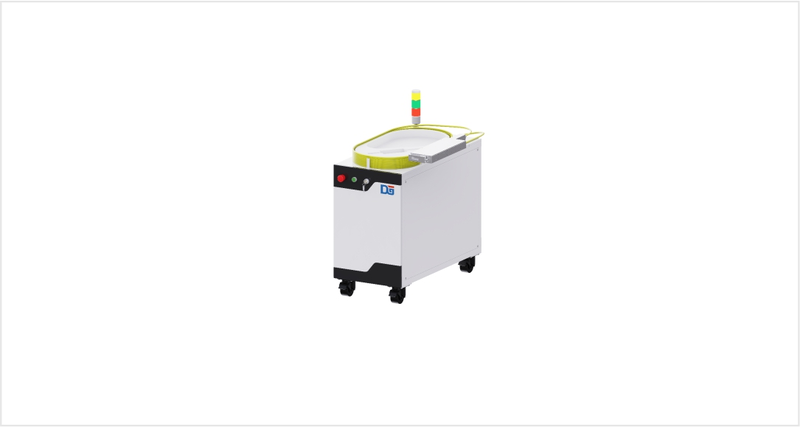

DGBA6000W Line-Spot Laser 6000W linear beam laser
Diffractive Optics
Daguanglaser
Output Power: 6000 W Center wavelength: 1070 nm Operating Mode: Continuous
-

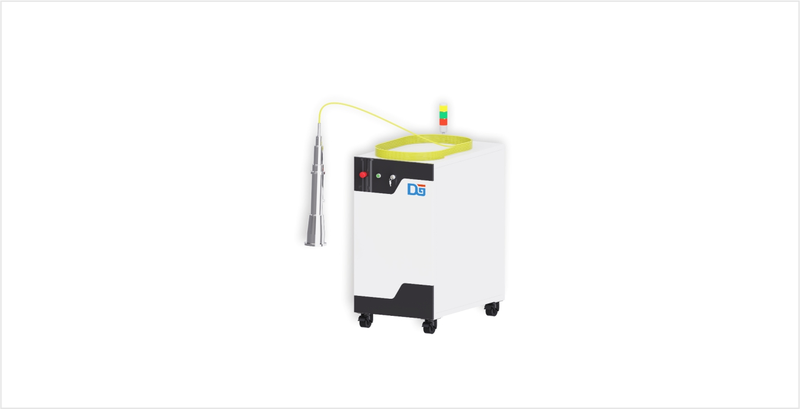

DGSQ16000W Rectangular-Spot Laser 16000WSquare beam laser
Diffractive Optics
Daguanglaser
Output Power: 16000 W Center wavelength: 960-985 nm Operating Mode: Continuous
-

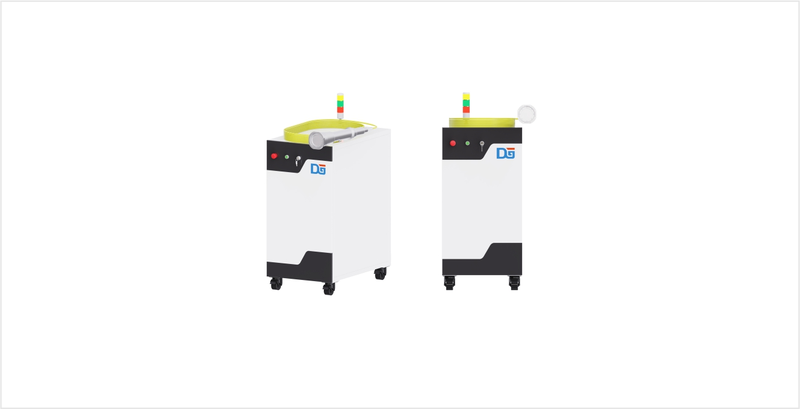

DGSQ20000W Rectangular-Spot Laser 20000WSquare beam laser
