DGBA6000W Line-Spot Laser 6000W linear beam laser

DGBA6000W Line-Spot Laser 6000W linear beam laser

Supplier
Daguanglaser
Part Number
DGBA6000W
Category
Diffractive Optics
Origin
China
Specification Snapshot
Center wavelength
1070 nm
Control Mode
RS232/AD/Ethernet
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

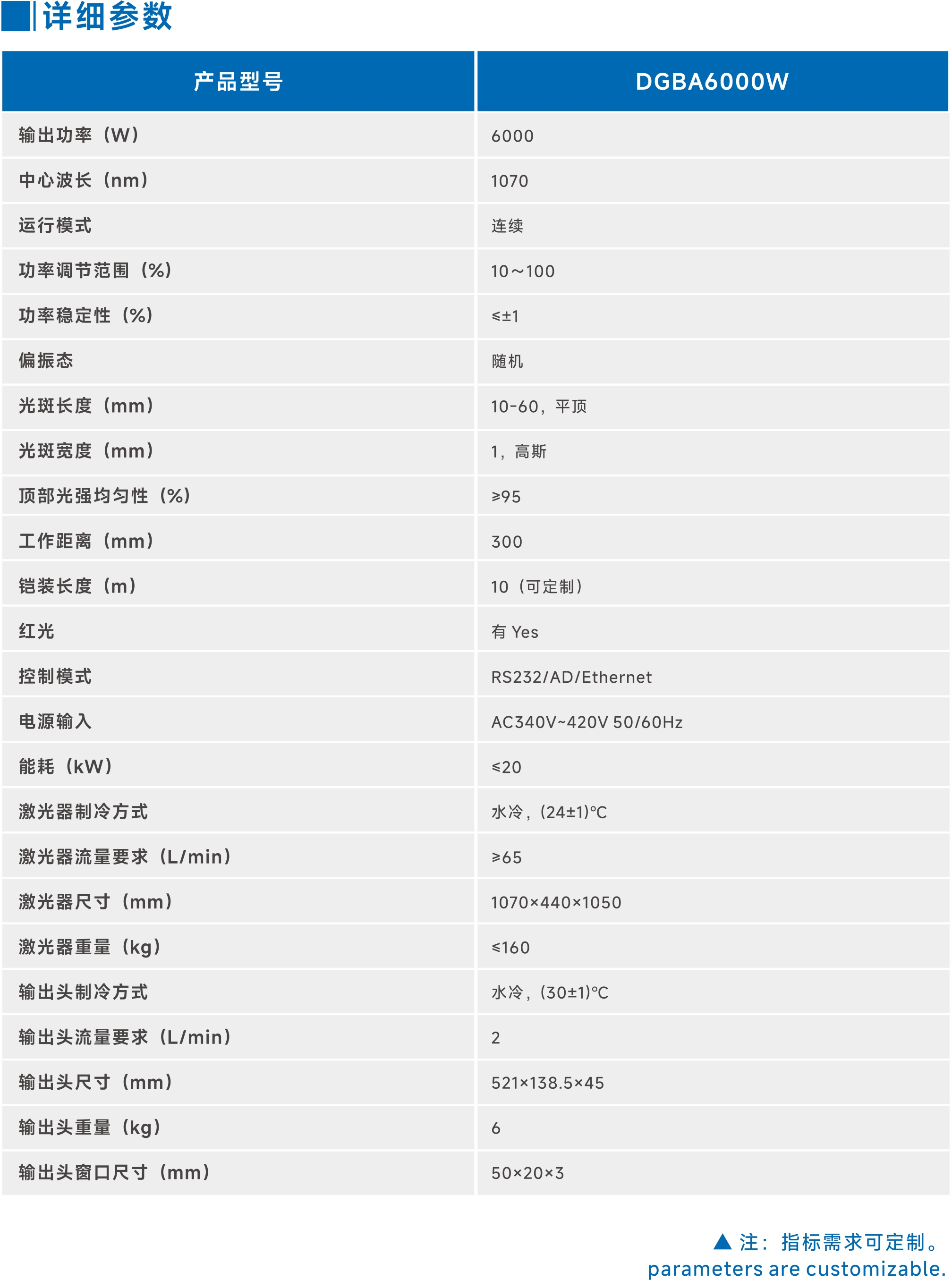

Specifications

ParameterValue
Output Power6000 W
Center wavelength1070 nm
Operating ModeContinuous
Power adjustment Range10~100 %
Power stability≤±1 %
Polarization stateRandom
Spot length [Flat-top]10-60, Flat-top
Spot width [Gaussian]1, Gaussian
Top Light-Intensity Uniformity≥95 %
Working distance300 mm
Armored Length [Customizable]10 (customizable)
Red lightYes Yes
Control ModeRS232/AD/Ethernet
Power supply InputAC340V~420V 50/60Hz
Energy consumption≤20 kW
Laser Cooling method [(24±1)°C]Water cooling ,(24±1)°C
Laser Flow Requirements≥65 L/min
Laser Dimensions1070 mm × 440 mm × 1050 mm
Laser Weight≤160 kg
Output head Cooling method [(30±1)°C]Water cooling ,(30±1)°C
Output Head Flow Requirements2 L/min
Output head Dimensions521 mm × 138.5 mm × 45 mm
Output head Weight6 kg
Output head Window Dimensions50 mm × 20 mm × 3 mm

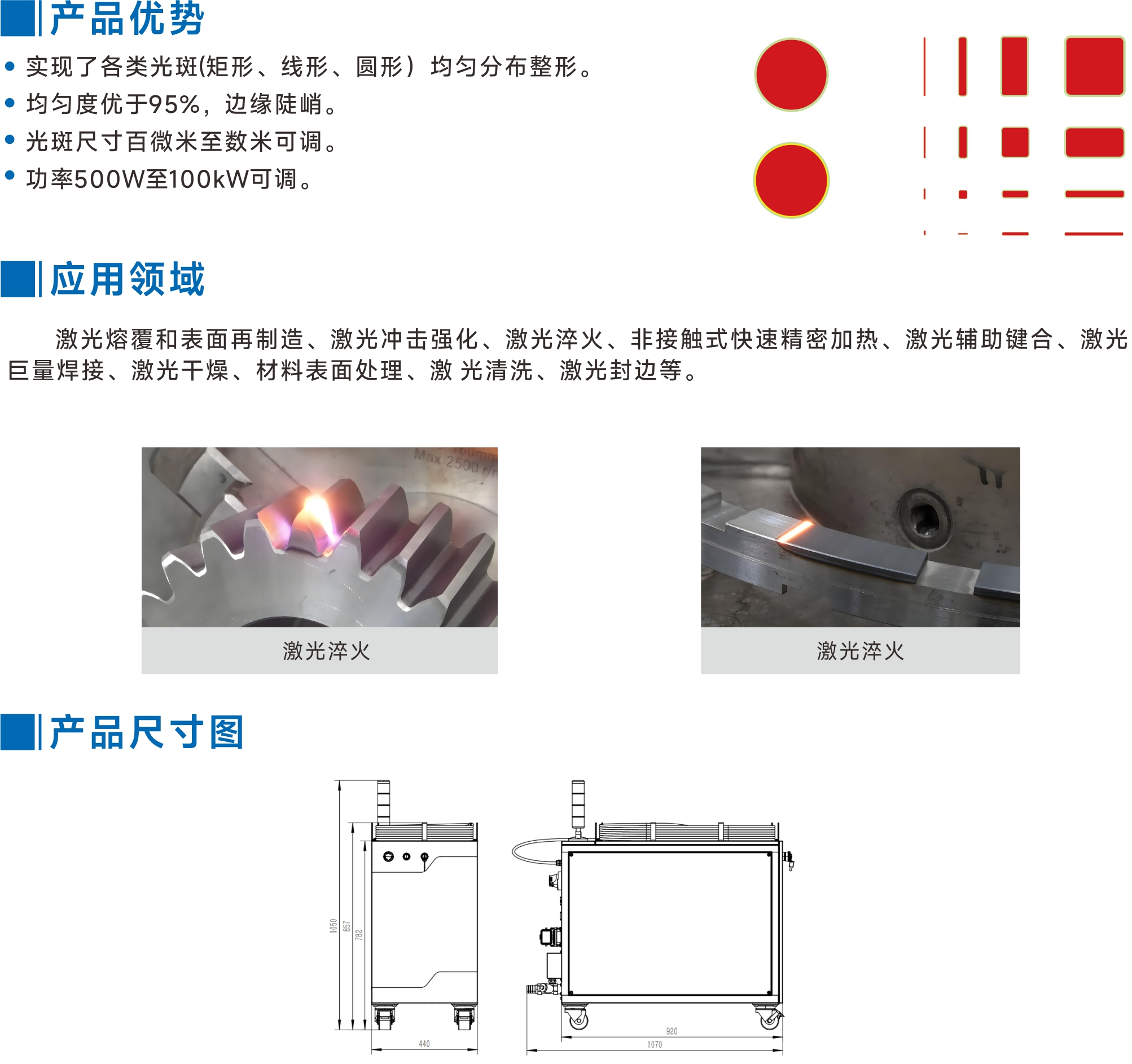

Applications

Laser cladding and surface remanufacturing, laser shock peening, laser hardening, noncontact rapid precision heating, laser-assisted bonding, large-scale laser welding, laser drying, material surface processing, laser cleaning and laser edge banding.

Key Features

Uniformly shapes rectangular, linear and circular spots. Uniformity better than 95% with sharp edges. Adjustable spot sizes from hundreds of micrometers to several meters. Adjustable power from 500W to 100kW.
