DGBA3000W Linear Laser, 3000W linear beam laser

DGBA3000W Linear Laser, 3000W linear beam laser

Supplier
Daguanglaser
Part Number
DGBA3000W
Category
Diffractive Optics
Origin
China
Specification Snapshot
Center wavelength
1070 nm
Control Mode
RS232/AD/Ethernet
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Specifications

ParameterValue
Output Power3000 W
Center wavelength1070 nm
Operating ModeContinuous
Power adjustment Range10~100 %
Power stability≤±1 %
Polarization stateRandom
Spot size10-60×3 mm×mm
Top Light-Intensity Uniformity≥95 %
Working distance210 to 600 mm
Armored Length [Customizable]10 (customizable)
Red lightYes
Control ModeRS232/AD/Ethernet
Power supply InputAC340V~420V 50/60Hz
Energy consumption≤9.5 kW
Laser Cooling method [(24±1)°C]Water cooling ,(24±1)°C
Laser Flow Requirements≥22 L/min
Laser Dimensions667 mm × 483 mm × 115 mm
Laser Weight≤45 kg
Output head Cooling method [(30±1)°C]Water cooling ,(30±1)°C
Output Head Flow Requirements2 L/min
Output head Dimensions607 mm × 155.5 mm × 45 mm
Output head Weight6 kg
Output head Window Dimensions50 mm × 20 mm × 3 mm

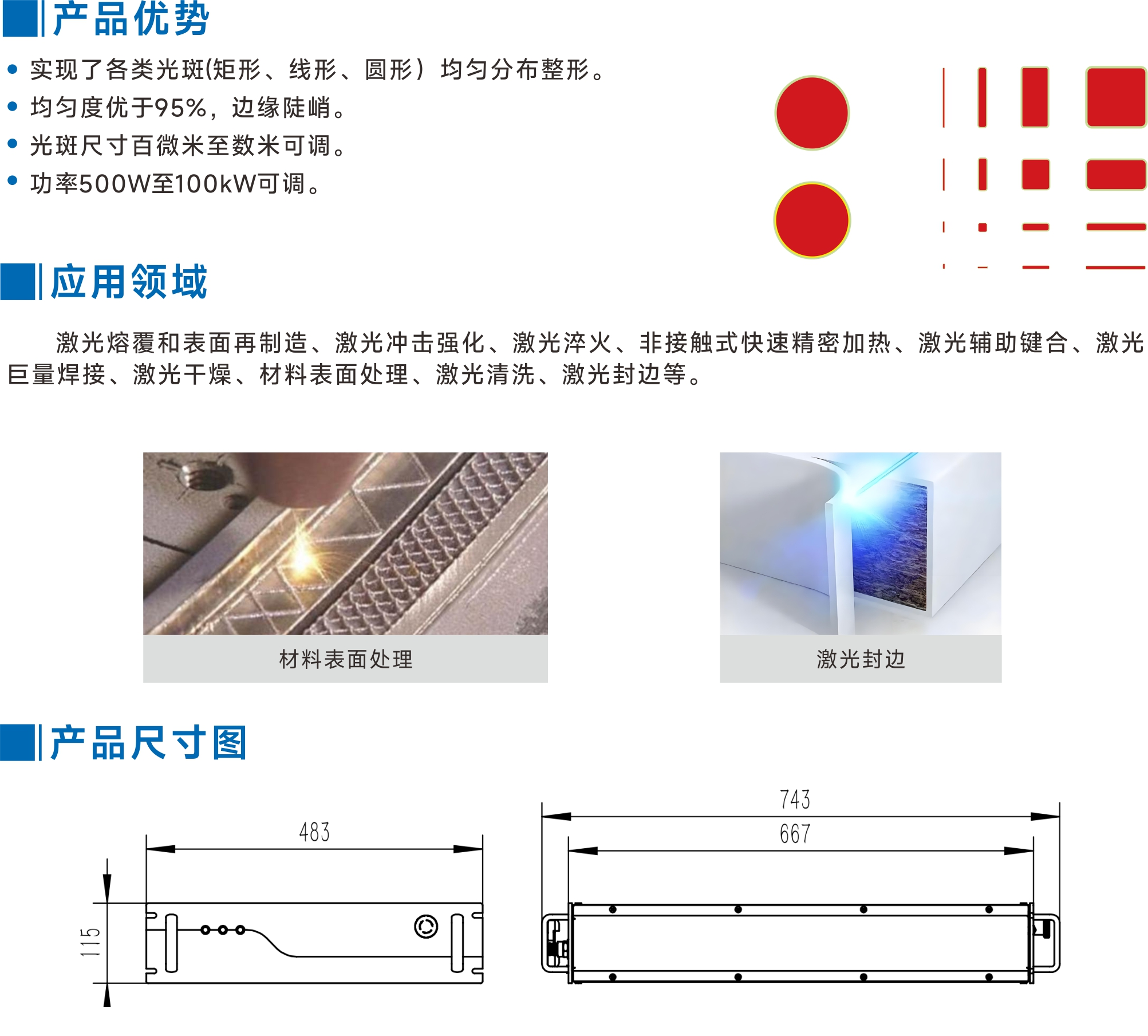

Applications

Laser cladding and surface remanufacturing, laser shock peening, laser hardening, noncontact rapid precision heating, laser-assisted bonding, large-scale laser welding, laser drying, material surface processing, laser cleaning and laser edge banding.

Key Features

Uniformly shapes rectangular, linear and circular spots. Uniformity better than 95% with sharp edges. Adjustable spot sizes from hundreds of micrometers to several meters. Adjustable power from 500W to 100kW.

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Da
Daguanglaser
View Supplier →
Sichuan DGLaser Technologies Co., Ltd. (Dglaser) is a state-controlled mixed-ownership enterprise registered in Mianyang, Sichuan, China, with its R&D center in Chengdu and offices in Shenzhen, Wuhan, Suzhou, Jinan, etc. It has an R&D team composed of PhDs from Tsinghua University, Peking University, University of Science and Technology of China and other first-class universities, with strong technical strength and a complete industrial chain. It focuses on providing laser light sources and solutions for security scientific research and high-end manufacturing applications. Main products include: (1) "Four High" series fiber lasers: single-mode output power can reach above 4kW, beam quality M² better than 1.2. Multi-mode output power can reach above 50kW, beam quality M² better than 5. More comprehensive series of ring spot lasers have various specifications of fibers such as 14/100μm, 20/200μm, 50/150μm, 100/300μm, 100/600μm, with total output power exceeding 12000W. They feature high power density, high anti-return light, high electro-optical efficiency, and high product quality. (2) "Four Super" series single-mode and multi-mode fiber lasers: can achieve ultra-high power density with beam quality M² better than 1.2, ultra-narrow linewidth with spectral bandwidth less than 0.3nm, ultra-light and compact with power-to-weight ratio greater than 100W/kg, and ultra-stable and reliable through harsh environmental tests. The company's products have undergone years of assessment in special industries and achieved excellent market performance and quality reputation. It has been awarded honors such as National Specialized and New Little Giant Enterprise, the first batch of Seed Unicorn Enterprises in Sichuan Province, and the first batch of Chain Owner Enterprises of Landmark Products (Laser Technology Equipment) in the Equipment Manufacturing Field in Sichuan Province.
