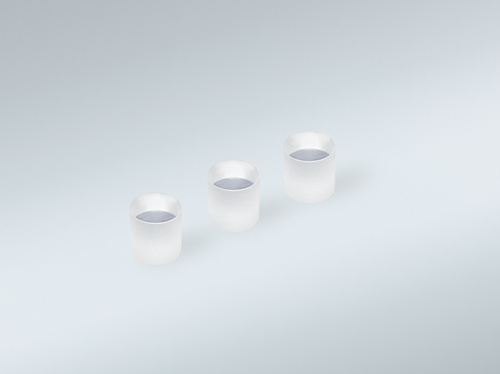

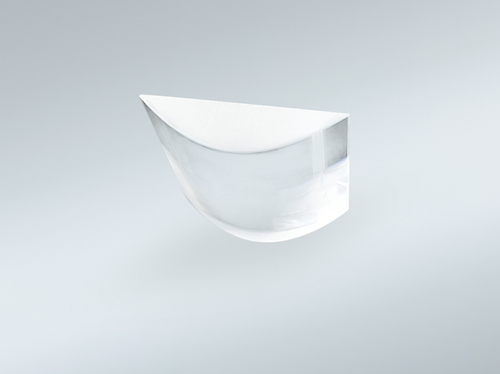

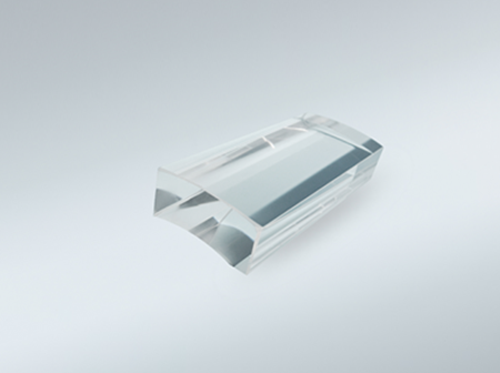

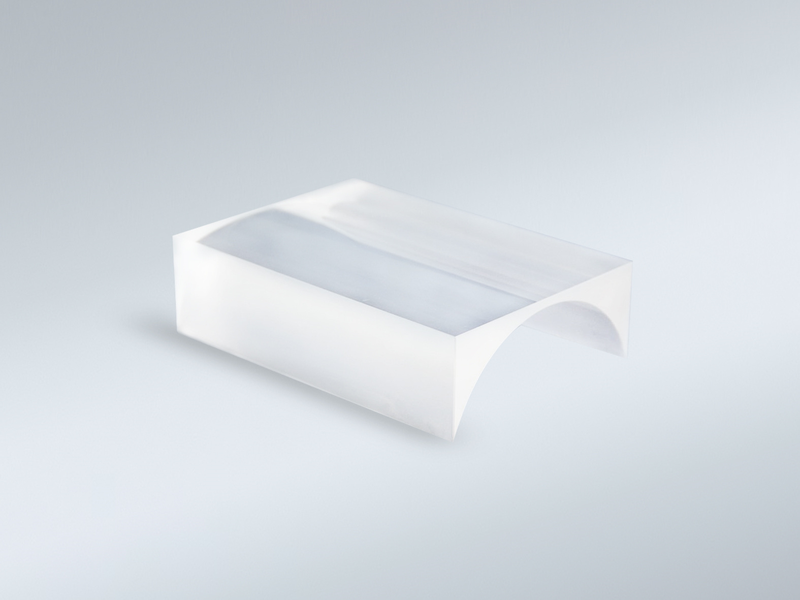

Cylindrical Lens
A cylindrical mirror has curvature in one dimension and is used for one-dimensional shaping of a light source.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Colorless optical glass, laser crystals, fused silica, radiation-resistant glass, ultraviolet and infrared materials, metal materials, e.g.: SiO₂, CaF₂, BaF₂, ZnSe, ZnS, etc. |
| Radius range (R) | R2~R∞ |
| Outer dimension range | 2~1200 mm |
| Outer dimension range - maximum width | 650 mm |
| Outline Tolerance | ±0.01 ~±0.2 mm |
| Thickness Tolerance | ±0.01 ~±0.2 mm |
| Surface Quality | 10/5~80/50 |
| Surface accuracy [Aperture = Φ100 mm] | λ/20~λ/2 / Φ100 mm |
| Decentration - Angle | 30 ″~5 ′ |
| Decentration - Displacement (Δt) | ≤0.01 |
| Clear Aperture | >90 % |
| Coating [Customizable] | Customized upon request (see Boxin coating process types and film layer introduction for details) |
