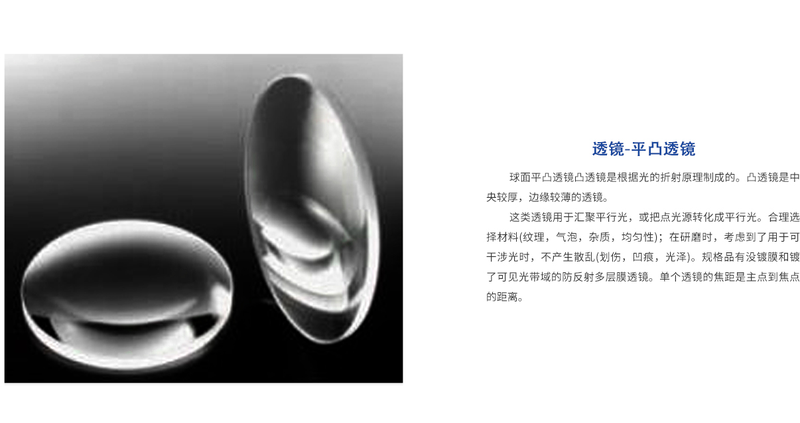

Plano-convex lens

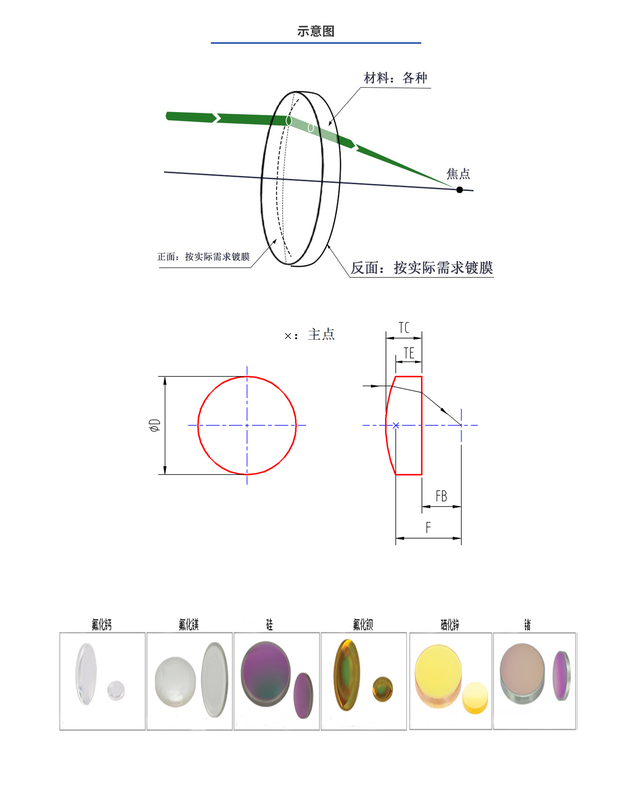

A spherical plano-convex lens operates by refraction.
Save to Favorites
Overview

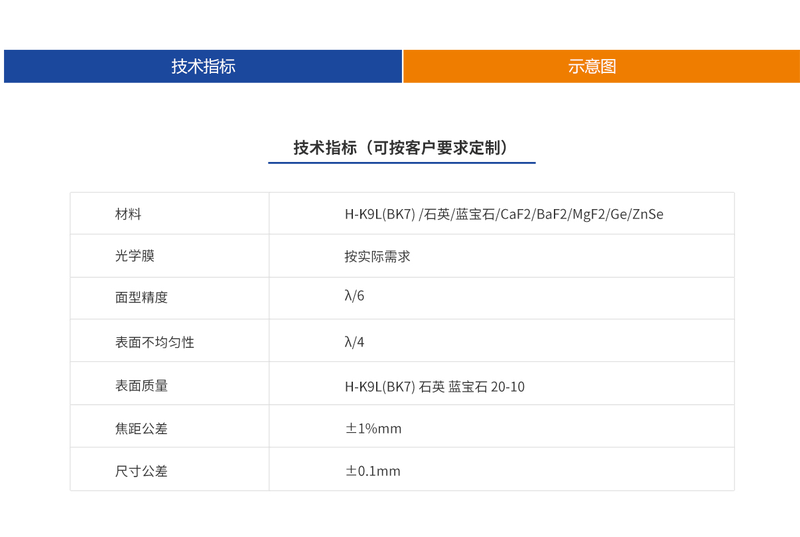

Specifications
| Parameter | Value |
|---|---|
| Material | H-K9L(BK7) / Quartz / Sapphire / CaF2 / BaF2 / MgF2 / Ge / ZnSe |
| Optical Coating | As Required |
| Surface Figure Accuracy | λ/6 |
| Surface Nonuniformity | λ/4 |
| Surface Quality [H-K9L(BK7), Quartz, Sapphire] | H-K9L(BK7), Quartz, Sapphire, 20-10 |
| Focal Length Tolerance | ±1%mm |
| Dimensional Tolerance | ±0.1mm |
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
