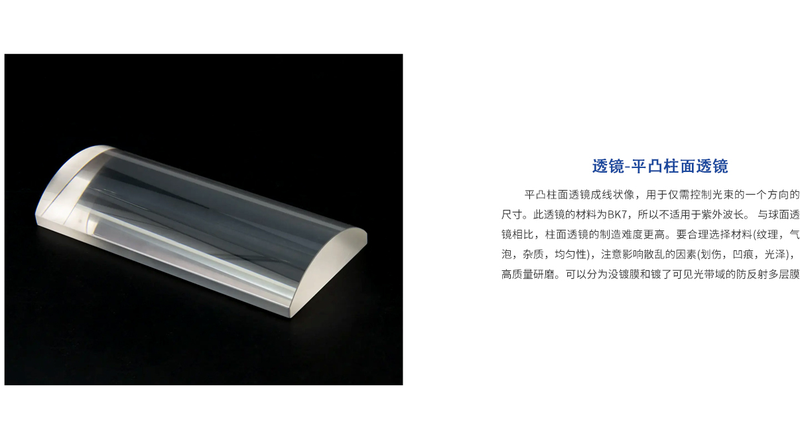

Plano-convex cylindrical lens

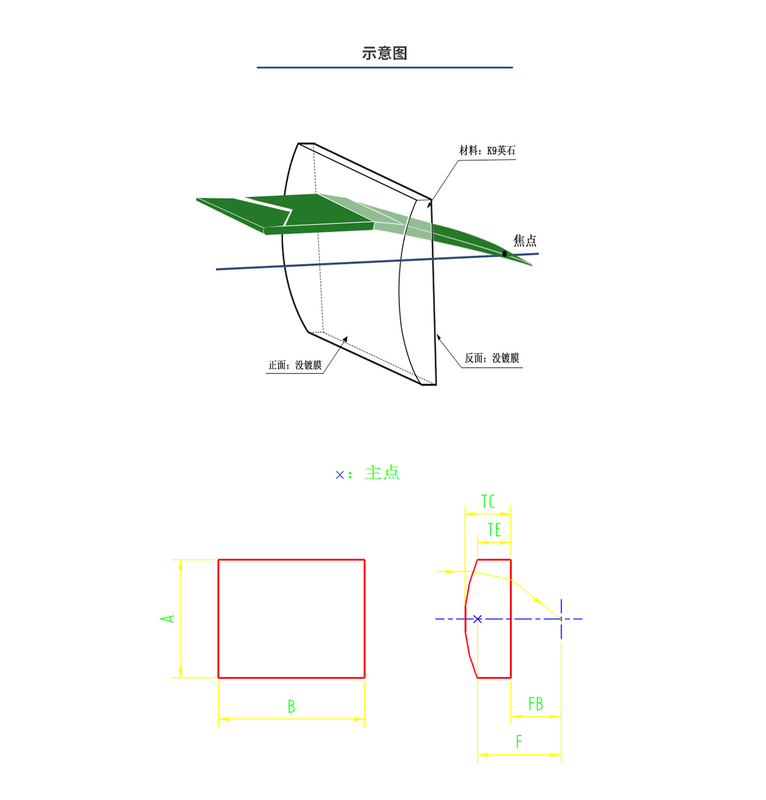

A plano-convex cylindrical lens forms a line image and controls beam size in only one direction.
Save to Favorites
Overview

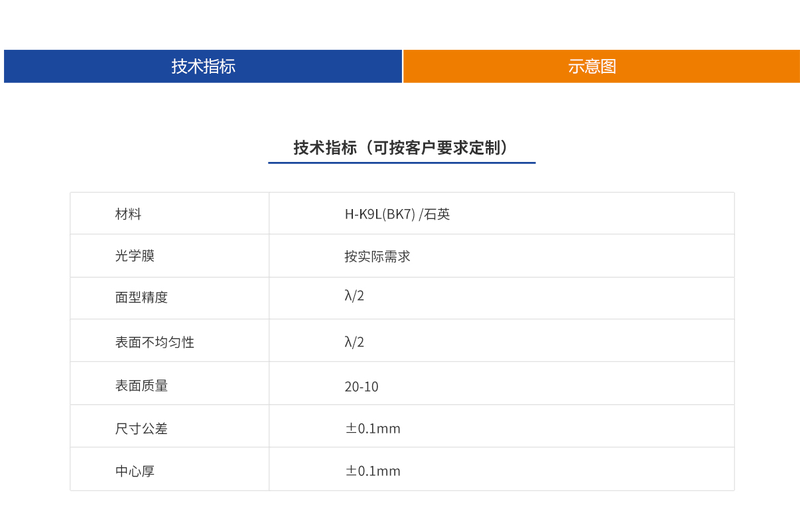

Specifications
| Parameter | Value |
|---|---|

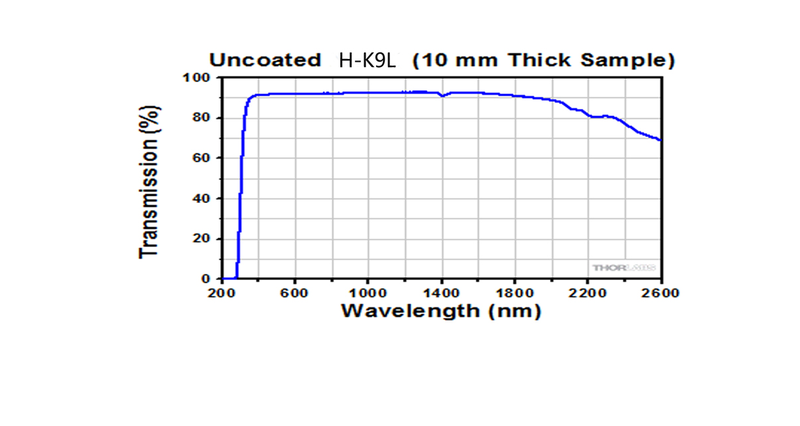

| Material | H-K9L(BK7) / Quartz |
| Optical Coating | As Required |
| Surface Figure Accuracy | λ/2 |
| Surface Nonuniformity | λ/2 |
| Surface Quality | 20-10 |
| Dimensional Tolerance | ±0.1mm |
| Center Thickness | ±0.1mm |
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
