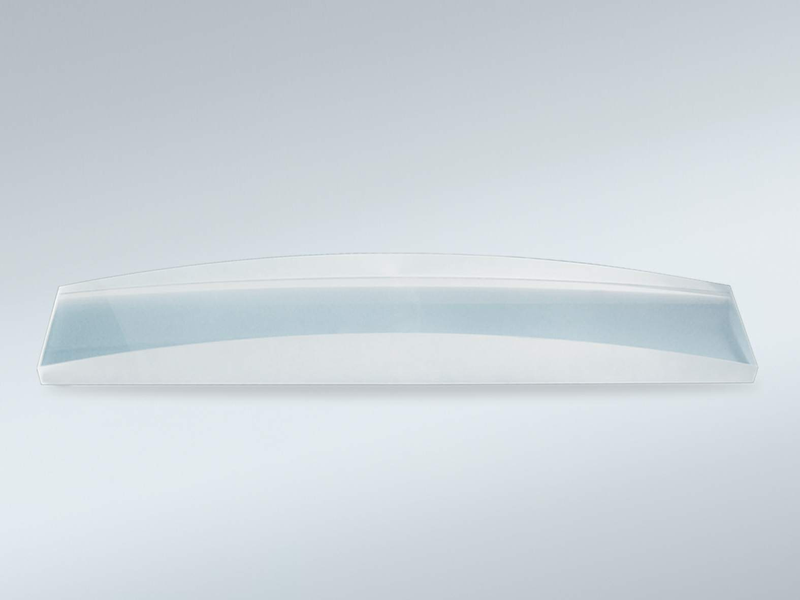

Large-aperture optical products
Large-aperture optical products are manufactured using ultra-precision optical cold-working processes such as rough grinding, fine grinding, and polishing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Colorless optical glass, colored optical glass, laser crystals, fused silica, radiation-resistant glass, ultraviolet and infrared materials, metal materials, e.g.: glass-ceramic, Ge, etc. |
| Machining dimensions of large-aperture plano products | 1200 mm |
| Machining dimensions of large-aperture spherical mirrors | 1100 mm |
| Machining dimensions of large-aperture cylindrical mirrors | 1200 mm × 650 mm |
| Machining dimensions of large-aperture toric mirrors | 300 mm |
| Surface accuracy | λ/10/100 mm |
| Coating [Customizable] | Customized upon request (see Boxin coating process types and film layer introduction for details) |
