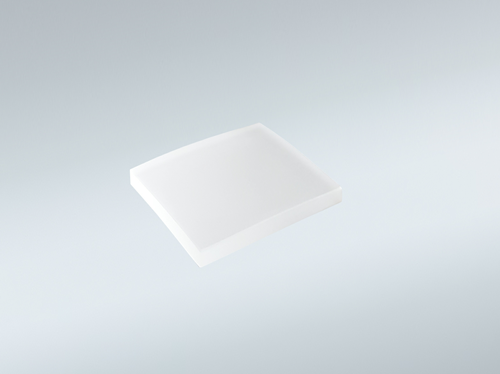

Toric mirror
A toric mirror, also called a toroidal mirror or tire mirror, has a surface that can be regarded as formed by rotating one circular arc around the axis of another circular arc.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Colorless optical glass, laser crystals, fused silica, radiation-resistant glass, ultraviolet and infrared materials, metal materials, e.g.: SiO₂, CaF₂, BaF₂, etc. |
| Radius range (R) | R30~R∞ |
| Outer dimension range (Φ) [Non-circular machining size = 300 mm] | Φ10~Φ300 (non-circular machining size: 300 mm) |
| Outline Tolerance | ±0.01 ~±0.2 mm |
| Thickness Tolerance | ±0.01 ~±0.2 mm |
| Surface Quality | 10/5~80/50 |
| Surface accuracy [Aperture = Φ100 mm] | λ/4~λ/Φ100 mm |
| Decentration - Angle | 30 ″~5 ′ |
| Decentration - Displacement (Δt) | ≤0.01 |
| Coating [Customizable] | Customized upon request (see Boxin coating process types and film layer introduction for details) |
