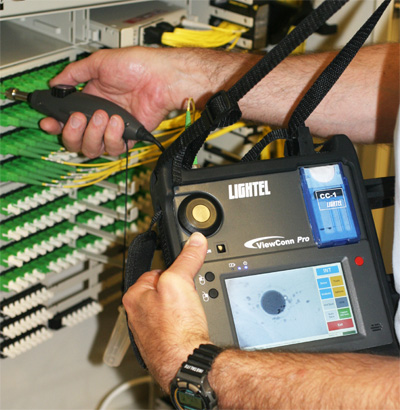

ViewConn Pro Fiber Inspection, Evaluation, Archiving, and Cleaning Integrated System

Single-frame field of view: 1.52 mm × 1.14 mm Total (combined) field of view: 4.5 mm × 1.14 mm Theoretical resolution: is 2 μm

Lightel's ArrayView is a faster, simpler, and more cost-effective way to inspect MTP connectors. Designed with precision and speed in mind, ArrayView automatically completes the scanning and capturing of the entire connector endface in 15 seconds. The included software provides high-resolution images of the entire connector endface, capturing up to 48 fibers in a single file. The image sub-views below the main window allow easy navigation between all the fibers in the connector. Image captures can be saved at any time for documentation. ArrayView's software is resource-friendly and can be used on any Windows®-based computer.

Frequency Band: 2412 - 2483 MHz Channel Number: 1 - 11 Protocol: IEEE 802.11 b/g/n

Lightel's DI-1000 digital video microscope now offers a wireless option for inspecting fiber optic connectors - DI-1000-WIFI! Connecting the WiFi unit to the DI-1000 probe converts the probe's USB video output into a wireless signal, enabling users to view live images of the fiber endface on a smartphone, tablet, or PC. Lightel provides free applications for a variety of devices and operating systems so that users can view or capture/save/retrieve connector endface images. These applications can be downloaded from the Google Play Store (Android), Apple Store (iOS), or the Lightel website (Windows). The DI-1000-WIFI can also work with Lightel's ConnectorView Plus Pass/Fail analysis software on a Windows® tablet. ConnectorView Plus uses IEC 61300-3-35 as the default standard for analysis, and can also create user-defined Pass/Fail standards.

Field of view: 〜680 μm×510 μm Resolution: 0.5 μm detectable Operating Temperature: 0 °C to 50 °C

The DI-1000L-PRO combines the all-digital wide-view DI-1000L microscope with our ConnectorView™ Plus v2 pass/fail software for fast, objective analysis of fiber optic connector endfaces. Through a direct USB2.0 connection to a PC, the DI-1000L-Pro can provide you with automatically consolidated analysis reports and summary reports in Excel or text format. The DI-1000 uses series 2 inspection tips and can also use all of our CI-1000 tips and optional adapters.

Field of View: ~ 425 um x 320 um high magnification version (DI-1000) ~ 680 um x 510 um wide view version (DI-1000L) Resolution: 0.5 um detectable Operating Temperature: 0 °C to 50 °C

The DI-1000MPO+ has the same functions and uses the same single-fiber tips and accessories as the popular DI-1000, but adds additional X and Y direction scanning knobs. This allows users to manually scan in the X and Y directions with one hand, providing unprecedented control and improving the efficiency of inspecting MTP®/MPO connector endfaces. Inspecting one to four rows (12 to 48 fibers) of MTP/MPO connectors does not require additional MTP/MPO tips. The scanning knobs also provide further flexibility when inspecting single-fiber connectors. The included single-fiber adapter allows you to use any Lightel Series 2 tip with the DI-1000MPO+ and quickly adjust the image position.
