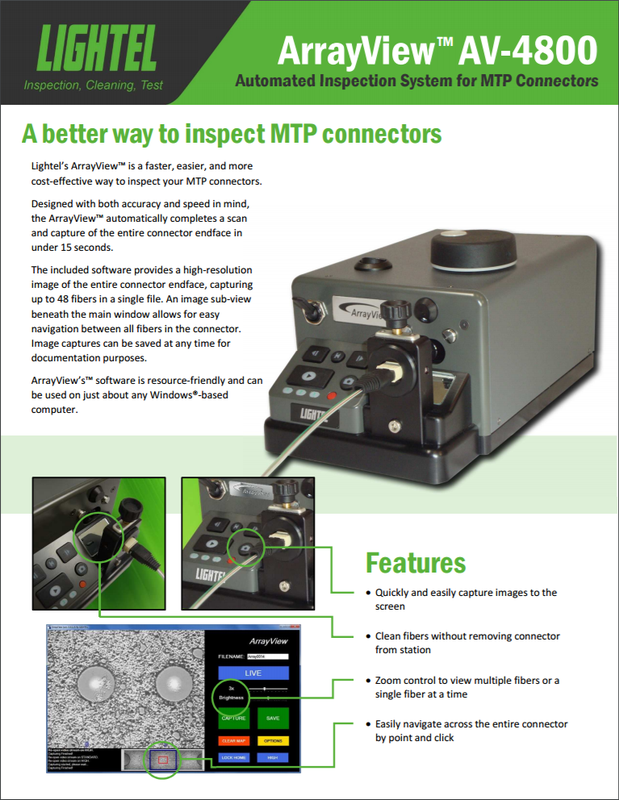

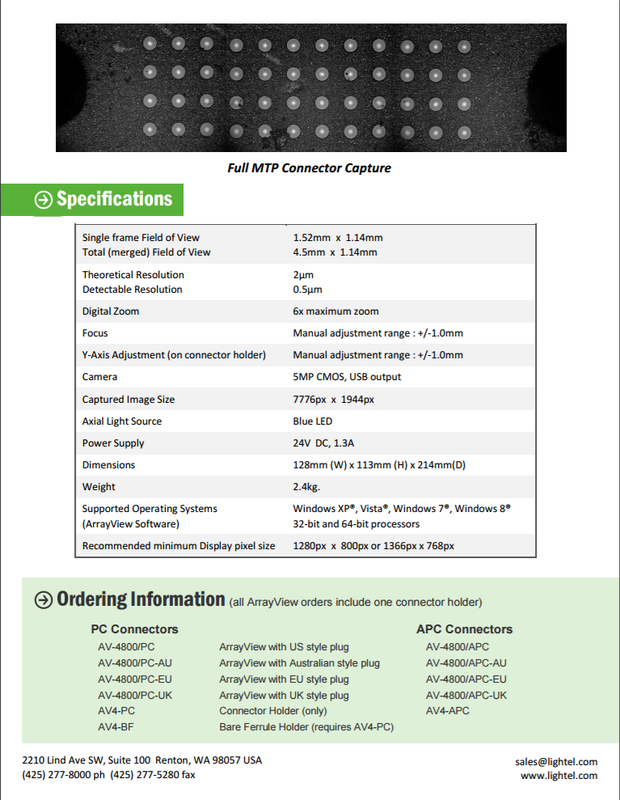

ARRAYVIEW™ AV-4800 Benchtop MTP Endface Inspector

Frequency Band: 2412 - 2483 MHz Channel Number: 1 - 11 Protocol: IEEE 802.11 b/g/n

Lightel's DI-1000 digital video microscope now offers a wireless option for inspecting fiber optic connectors - DI-1000-WIFI! Connecting the WiFi unit to the DI-1000 probe converts the probe's USB video output into a wireless signal, enabling users to view live images of the fiber endface on a smartphone, tablet, or PC. Lightel provides free applications for a variety of devices and operating systems so that users can view or capture/save/retrieve connector endface images. These applications can be downloaded from the Google Play Store (Android), Apple Store (iOS), or the Lightel website (Windows). The DI-1000-WIFI can also work with Lightel's ConnectorView Plus Pass/Fail analysis software on a Windows® tablet. ConnectorView Plus uses IEC 61300-3-35 as the default standard for analysis, and can also create user-defined Pass/Fail standards.

Field of view: 〜680 μm×510 μm Resolution: 0.5 μm detectable Operating Temperature: 0 °C to 50 °C

The DI-1000L-PRO combines the all-digital wide-view DI-1000L microscope with our ConnectorView™ Plus v2 pass/fail software for fast, objective analysis of fiber optic connector endfaces. Through a direct USB2.0 connection to a PC, the DI-1000L-Pro can provide you with automatically consolidated analysis reports and summary reports in Excel or text format. The DI-1000 uses series 2 inspection tips and can also use all of our CI-1000 tips and optional adapters.

Field of View: ~ 425 um x 320 um high magnification version (DI-1000) ~ 680 um x 510 um wide view version (DI-1000L) Resolution: 0.5 um detectable Operating Temperature: 0 °C to 50 °C

The DI-1000MPO+ has the same functions and uses the same single-fiber tips and accessories as the popular DI-1000, but adds additional X and Y direction scanning knobs. This allows users to manually scan in the X and Y directions with one hand, providing unprecedented control and improving the efficiency of inspecting MTP®/MPO connector endfaces. Inspecting one to four rows (12 to 48 fibers) of MTP/MPO connectors does not require additional MTP/MPO tips. The scanning knobs also provide further flexibility when inspecting single-fiber connectors. The included single-fiber adapter allows you to use any Lightel Series 2 tip with the DI-1000MPO+ and quickly adjust the image position.

ViewConn-Field of View: ~ 425 µm x 320 µm ViewConn-Resolution: 0.5 µm detectable ViewConn-Focus: Manual Adjustment, 2 mm max travel

ViewConn® Pro (VC-8200) is an integrated system for fiber optic connector inspection, evaluation, archiving, and cleaning. The integrated power meter is also available as a customer-installable add-on. With built-in Wi-Fi functionality, ViewConn Pro can email its pass/fail analysis reports to other locations or store them directly within the device. Lightel's original dual-microscope concept allows rapid inspection of male and female connectors without changing the tip. The auto-centering function allows faster connector endface positioning and probe analysis. For ease of field use, the 5" display provides clear, crisp images, large touchscreen buttons provide all necessary image capture and analysis controls, and Lightel's pre-installed ConnectorView™ Plus software requires no calibration, providing analysis reports within seconds. ViewConn Pro features ViewConn's traditional reinforced cover and integrated cleaning cassette, and is the only comprehensive tool for field inspection, analysis, and cleaning.
