DI-1000-WIFI Smart Fiber Endface Inspector - Mobile WiFi Connection Version

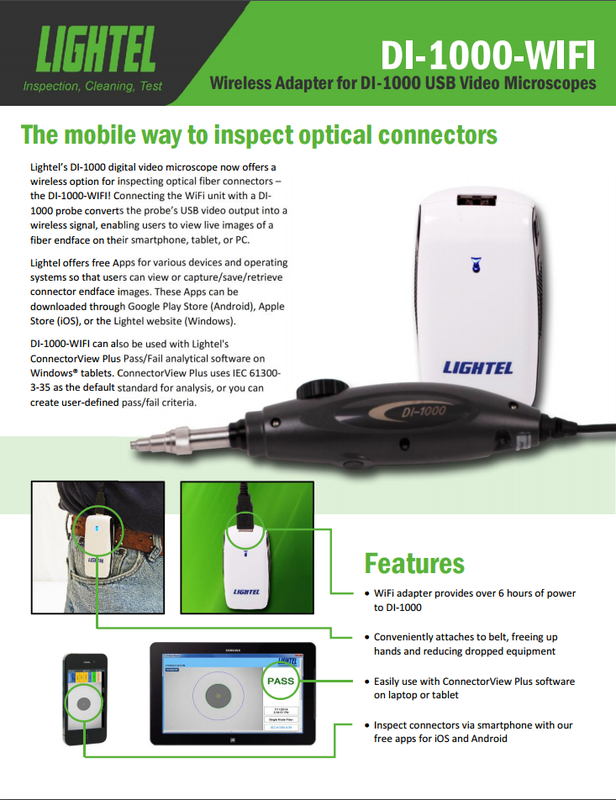

Lightel's DI-1000 digital video microscope now offers a wireless option for inspecting fiber optic connectors - DI-1000-WIFI! Connecting the WiFi unit to the DI-1000 probe converts the probe's USB video output into a wireless signal, enabling users to view live images of the fiber endface on a smartphone, tablet, or PC. Lightel provides free applications for a variety of devices and operating systems so that users can view or capture/save/retrieve connector endface images. These applications can be downloaded from the Google Play Store (Android), Apple Store (iOS), or the Lightel website (Windows). The DI-1000-WIFI can also work with Lightel's ConnectorView Plus Pass/Fail analysis software on a Windows® tablet. ConnectorView Plus uses IEC 61300-3-35 as the default standard for analysis, and can also create user-defined Pass/Fail standards.
Save to Favorites
Overview

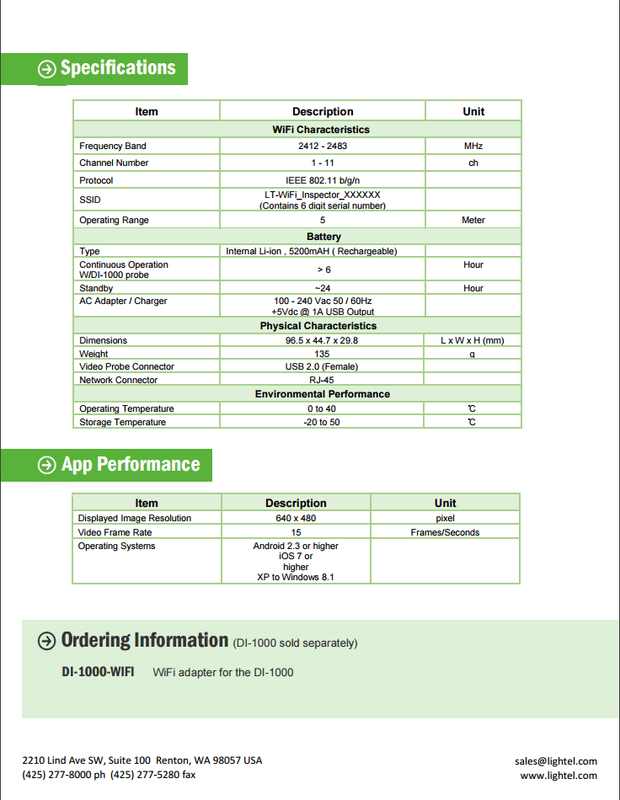

Specifications
| Parameter | Value |
|---|---|
| Frequency Band | 2412 - 2483 MHz |
| Channel Number | 1 - 11 |
| Protocol | IEEE 802.11 b/g/n |
| SSID | LT-WiFi_Inspector_XXXXXX (Contains 6 digit serial number) |
| Operating Range | 5 m |
| Battery-Type | Internal Li-ion , 5200mAH (Rechargeable) |
| Continuous Operation w/DI-1000 probe | >6 hours |
| Standby | ~24 hours |
| AC Adapter / Charger [1A USB Output] | 100 - 240 Vac 50 / 60 Hz +5Vdc @ 1 A USB Output |
| Dimensions | 96.5 mm (L) x 44.7 mm (W) x 29.8 mm (H) |
| Weight | 135 g |
| Video Probe Connector | USB 2.0 (female) |
| Network Connector | RJ-45 |
| Operating Temperature | 0 to 40 °C |
| Storage Temperaturey | -20 to 50 °C |
| Displayed Image Resolution | 640 px x 480 px |
| Video Frame Rate | 15 fps |
| Operating Systems | Android 2.3 or higher iOS 7 or higher XP to Windows 8.1 |
