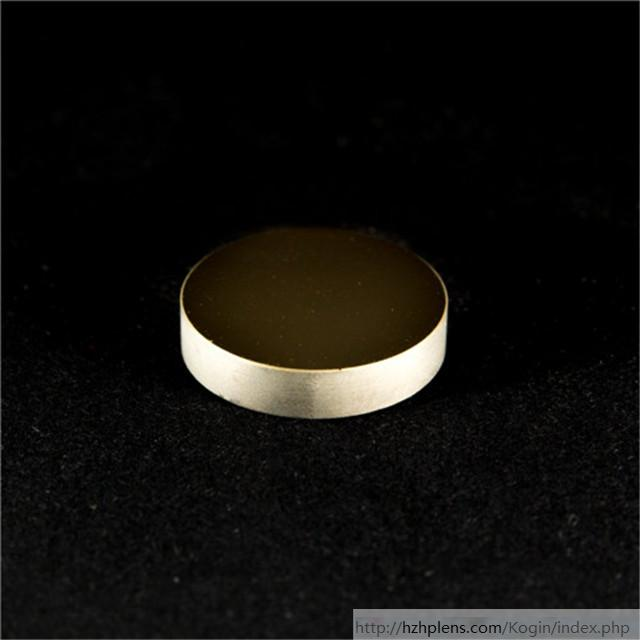

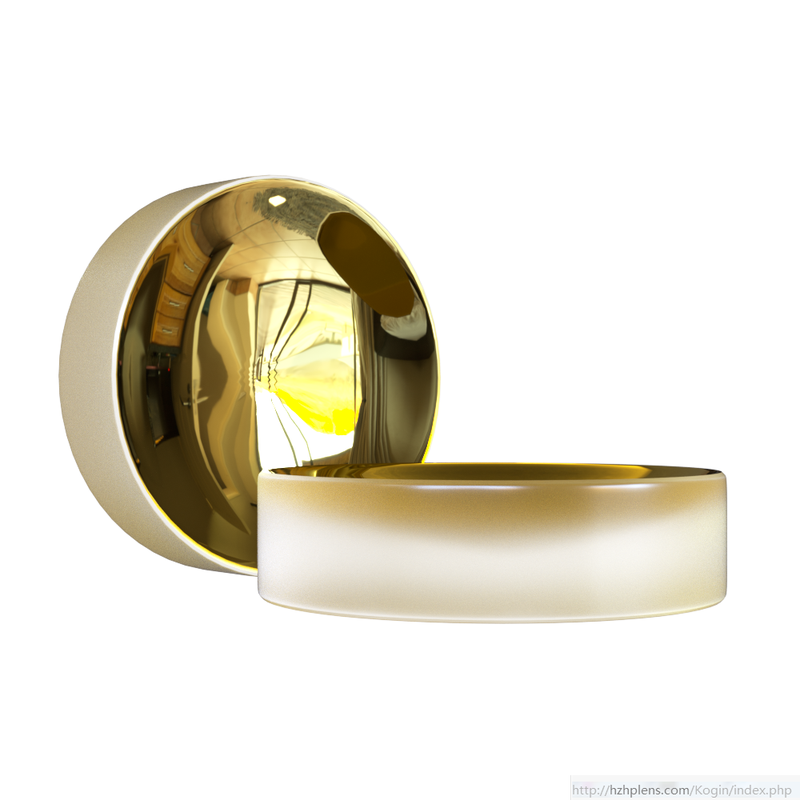

Gold-coated mirror 2

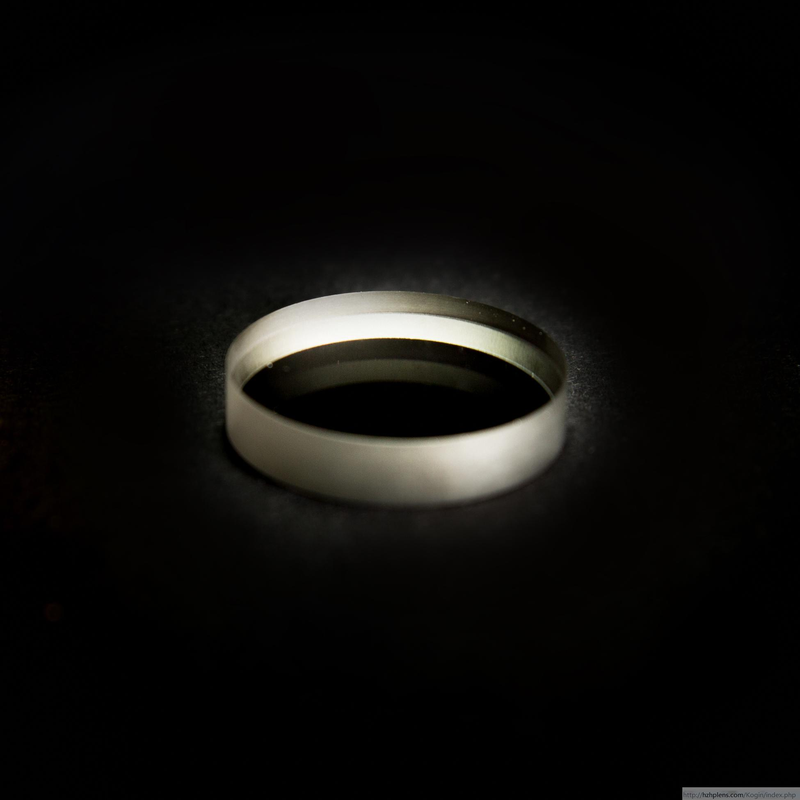

Windows with gold film coated on the edges can be directly soldered or connected to optomechanical equipment to seal the two together.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | K9, BK7, FS, UVFS, CaF₂, ZnSe |
| Dimensional deviation | ±0.05 mm |
| Angular error | <3 arc min |
| Surface figure accuracy [633nm；633nm or λ/10@633nm] | λ/4@ 633 nm or λ/10@633 nm |
| Surface quality (S/D) | 60/40 or 20/10 |
| Clear Aperture | 90 % |
| Bevelling | <0.2*45 ° |
| Coating | Customizable |
