Home All Products Optical Components Optical Mirrors On-axis parabolic mirror

Optical Mirrors

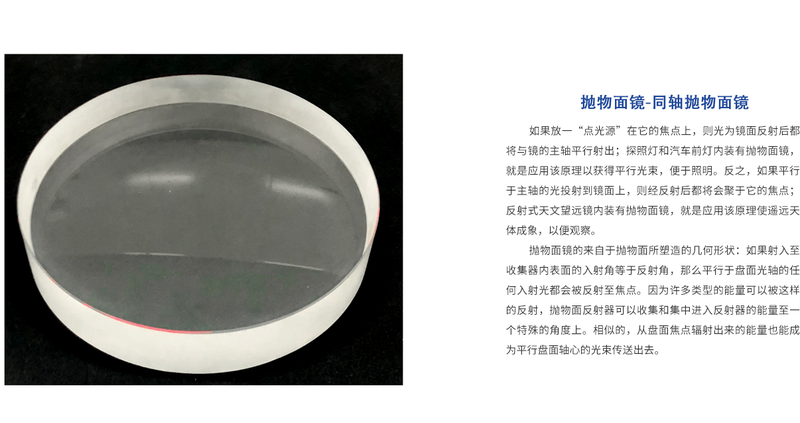

On-axis parabolic mirror

Supplier

Zeit-group

Overview

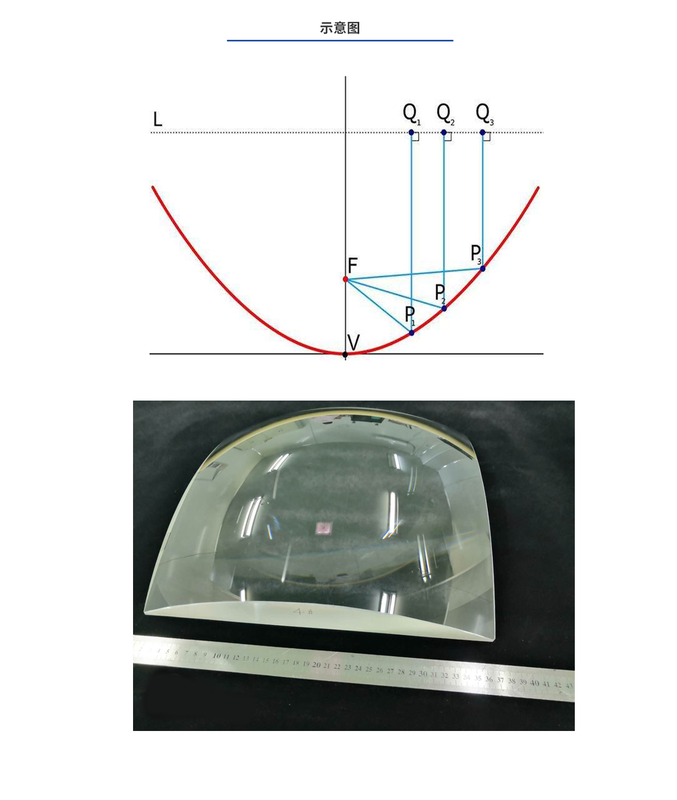

A point source placed at the focus produces reflected rays parallel to the mirror's principal axis. Searchlights and vehicle headlights use this principle to produce parallel illumination. Conversely, light incident parallel to the principal axis is reflected to the focus; reflecting astronomical telescopes use this principle to image distant celestial objects. This behavior follows from the paraboloidal geometry and equality of the angles of incidence and reflection: incoming rays parallel to the dish's optical axis are reflected to its focus. A parabolic reflector can therefore collect and concentrate various forms of incident energy in a particular direction. Similarly, energy radiating from the dish's focus can be transmitted as a beam parallel to its central axis.

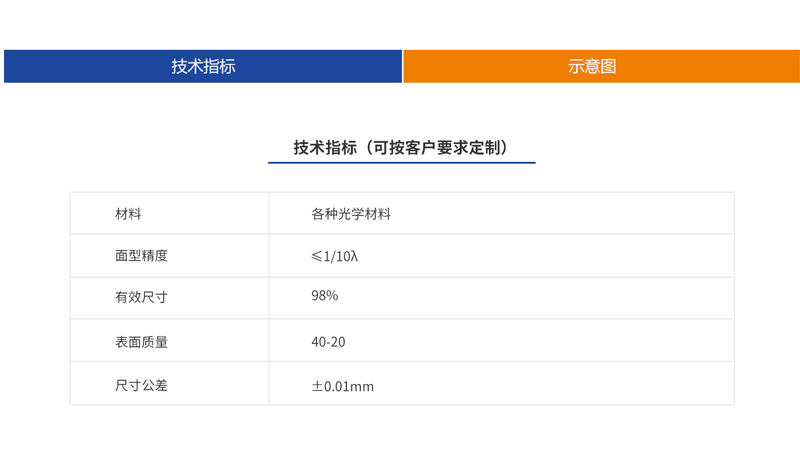

Specifications

Parameter	Value
Material	Various Optical Materials
Surface Figure Accuracy	≤1/10λ
Effective Size	98%
Surface Quality	40-20
Dimensional Tolerance	±0.01mm

Datasheet

Please provide your email to download the datasheet.

Your name

Email Address

Invalid email format. Please try again.

Send Request

Supplier Information

Zeit-group

View Supplier →

Chengdu Zhongke Zhuoer Intelligent Technology Group Co., Ltd. is a leading enterprise in the field of optics and semiconductors, recognized as a National High-Tech Enterprise, a Sichuan Province “Specialized, Refined, Distinctive, and Innovative” “Little Giant” Enterprise, a Chengdu New Economy “Double Hundred” Enterprise, and a Chengdu High-Tech Zone “Four Categories of High-Level Talent” Enterprise. Leveraging its exceptional technical capabilities—including independent R&D, patented technologies, and technological innovation—the company has achieved breakthroughs in ultra-precision polishing, precision inspection, and coating processes in the chip and display sectors. Its key products include high-end quartz blank masks, precision optical components and active devices, precision inspection equipment, and high-performance coating technology services, establishing the company as a core technology-driven enterprise with a competitive supply chain advantage in replacing imported products with domestically produced alternatives. To date, the company has been granted over 80 patents and collaborates with five affiliated institutions and scientific research units. It has established a precision optical processing production base and a precision optical system assembly and calibration center. The company has forged deep industry-academia-research partnerships with global research institutes, renowned universities, and industry associations in the optoelectronics field. Grounded in high-level scientific and technological self-reliance, it is committed to conquering key core technologies, continuously accumulating technical expertise, and tackling key process challenges, striving to become a leading enterprise in the development and industrialization of high-tech optoelectronic products. Through continuous efforts, Zhongke Zhuoer has achieved one qualitative leap after another. In the future, the company will deepen collaborative partnerships along the industry value chain to enhance its core capabilities, embrace innovation, and contribute to the development of critical upstream materials and integrated process technologies for China’s optoelectronics industry.
