Home All Products Optical Components Optical Mirrors ZEIT-FSM003

Optical Mirrors

ZEIT-FSM003

Supplier

Zeit-group

Part Number

ZEIT-FSM003

Overview

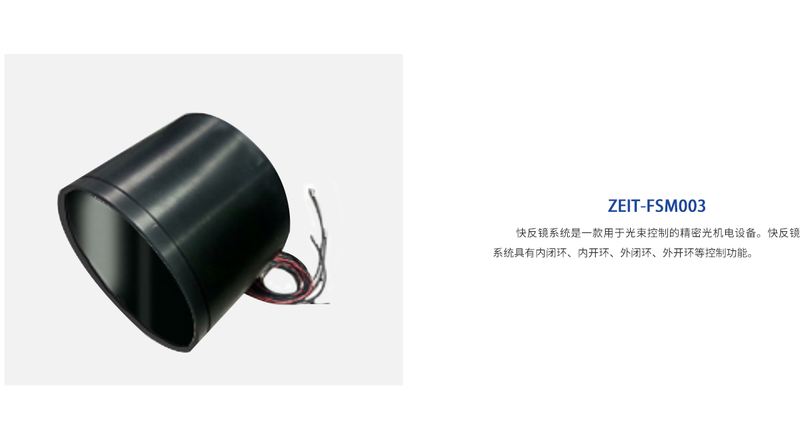

The fast steering mirror system is a precision optomechatronic device for beam control.

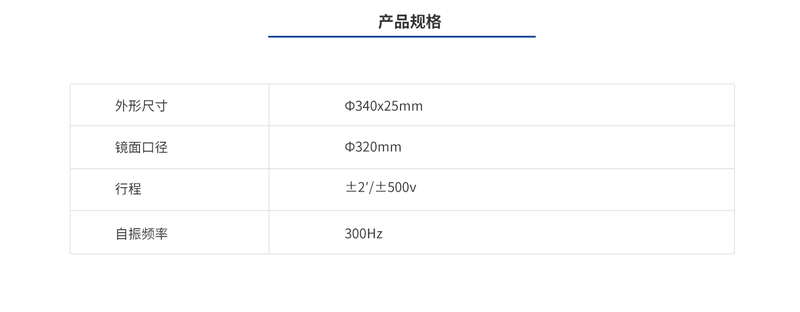

Specifications

Parameter	Value
Overall Dimensions	Φ340 mm × 25 mm
Mirror Aperture	Φ320mm
Travel	±2′/±500v
Self-resonance Frequency	300Hz

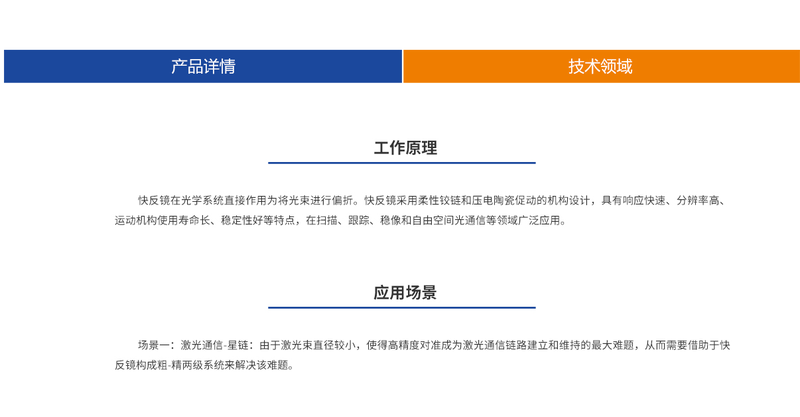

Applications

Scenario 1: laser communications—Starlink. The small laser-beam diameter makes high-precision alignment the main challenge in establishing and maintaining a laser communication link. A coarse/fine two-stage system incorporating a fast steering mirror addresses this challenge.

Key Features

The fast steering mirror system supports internal closed-loop, internal open-loop, external closed-loop and external open-loop control. Its direct function in an optical system is to deflect the beam. The mirror uses a flexure-hinge mechanism driven by piezoelectric actuators, providing fast response, high resolution, long mechanism life and good stability. It is widely used in scanning, tracking, image stabilization and free-space optical communications.

Datasheet

Please provide your email to download the datasheet.

Your name

Email Address

Invalid email format. Please try again.

Send Request

Supplier Information

Zeit-group

View Supplier →

Chengdu Zhongke Zhuoer Intelligent Technology Group Co., Ltd. is a leading enterprise in the field of optics and semiconductors, recognized as a National High-Tech Enterprise, a Sichuan Province “Specialized, Refined, Distinctive, and Innovative” “Little Giant” Enterprise, a Chengdu New Economy “Double Hundred” Enterprise, and a Chengdu High-Tech Zone “Four Categories of High-Level Talent” Enterprise. Leveraging its exceptional technical capabilities—including independent R&D, patented technologies, and technological innovation—the company has achieved breakthroughs in ultra-precision polishing, precision inspection, and coating processes in the chip and display sectors. Its key products include high-end quartz blank masks, precision optical components and active devices, precision inspection equipment, and high-performance coating technology services, establishing the company as a core technology-driven enterprise with a competitive supply chain advantage in replacing imported products with domestically produced alternatives. To date, the company has been granted over 80 patents and collaborates with five affiliated institutions and scientific research units. It has established a precision optical processing production base and a precision optical system assembly and calibration center. The company has forged deep industry-academia-research partnerships with global research institutes, renowned universities, and industry associations in the optoelectronics field. Grounded in high-level scientific and technological self-reliance, it is committed to conquering key core technologies, continuously accumulating technical expertise, and tackling key process challenges, striving to become a leading enterprise in the development and industrialization of high-tech optoelectronic products. Through continuous efforts, Zhongke Zhuoer has achieved one qualitative leap after another. In the future, the company will deepen collaborative partnerships along the industry value chain to enhance its core capabilities, embrace innovation, and contribute to the development of critical upstream materials and integrated process technologies for China’s optoelectronics industry.
