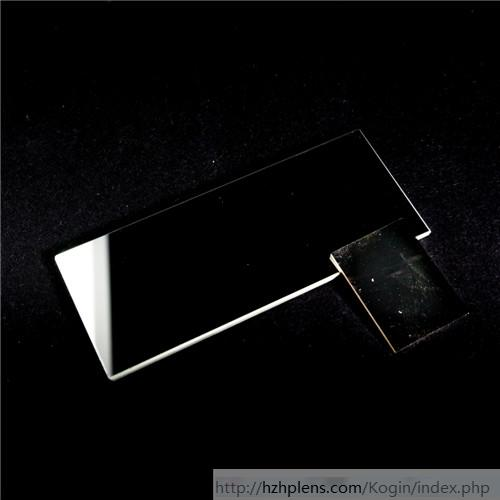

Plane mirror
A plane mirror refers to a mirror whose reflecting surface is a plane, called a plane mirror. [1] The reflecting surface can be either the front surface or the back surface. In optics, the plane mirror is the only optical element that can form a perfect image; it does not change the concentric nature of a light beam. After reflection by a plane mirror, a diverging concentric beam remains a diverging concentric beam, and a converging concentric beam remains a converging concentric beam.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | K9, BK7, FS, UVFS, CaF₂, ZnSe |
| Dimensional deviation | ±0.05 mm |
| Angular error | <3 arc min |
| Surface figure accuracy [633nm；633nm or λ/10@633nm] | λ/4@ 633 nm or λ/10@633 nm |
| Surface quality (S/D) | 60/40 or 20/10 |
| Clear Aperture | 90 % |
| Bevelling | <0.2*45 ° |
| Coating | Customizable |
Applications
