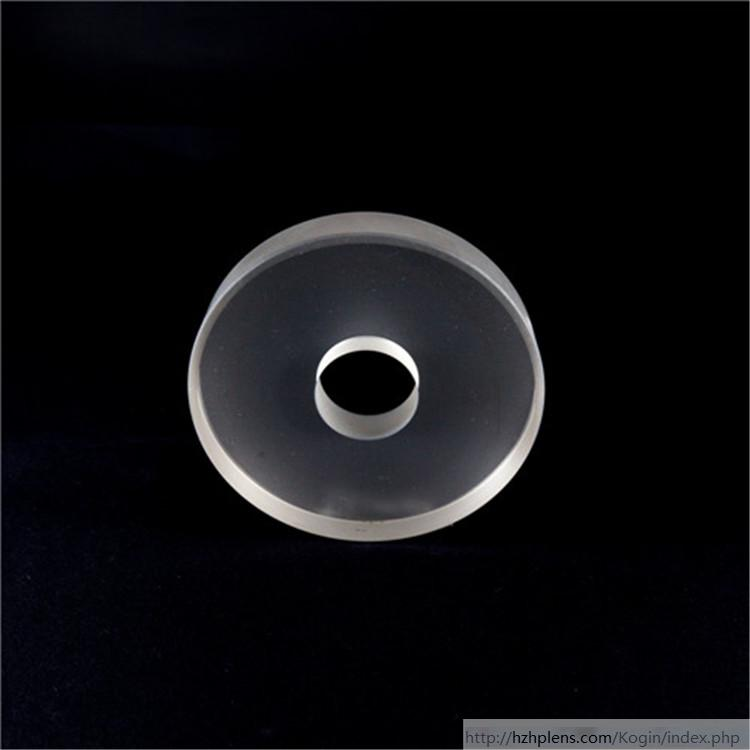

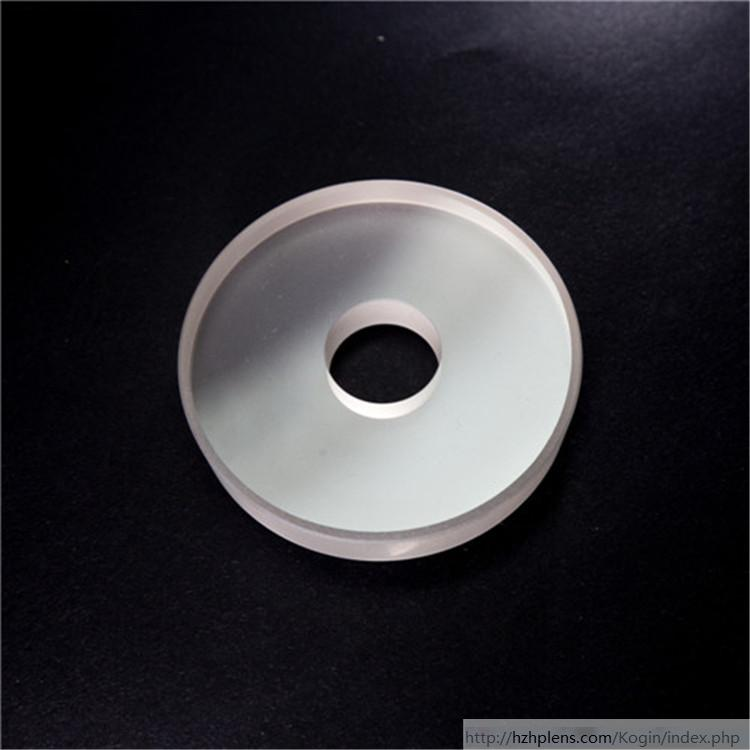

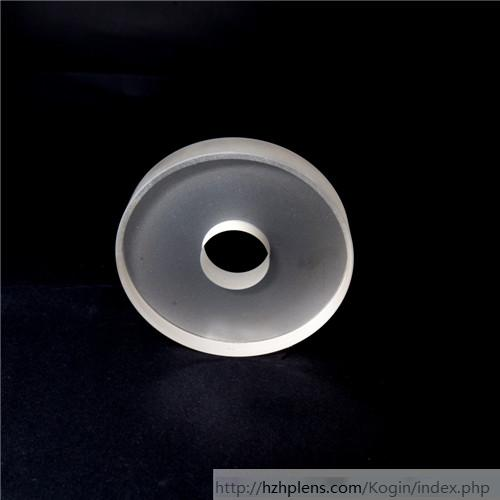

Plano-concave mirror with hole
The plano-concave mirror with hole has a reflective focusing effect on the light beam in one direction.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Diameter [±0.1mm] | 3 mm- 200mm±0.1 mm |
| Focal length [±1%] | ±5 mm-±10000 mm±1 % |
| Center thickness tolerance | ±0.05 mm |
| Lens alignment error | ≤3 min |
| Surface Quality | 60/40.40/20.80/60 |
| Clear Aperture | 90 % |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
