Sapphire

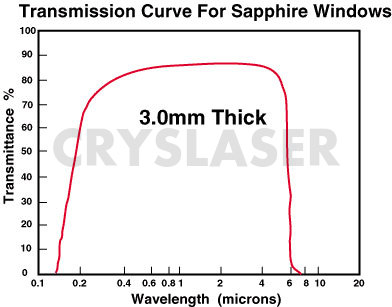

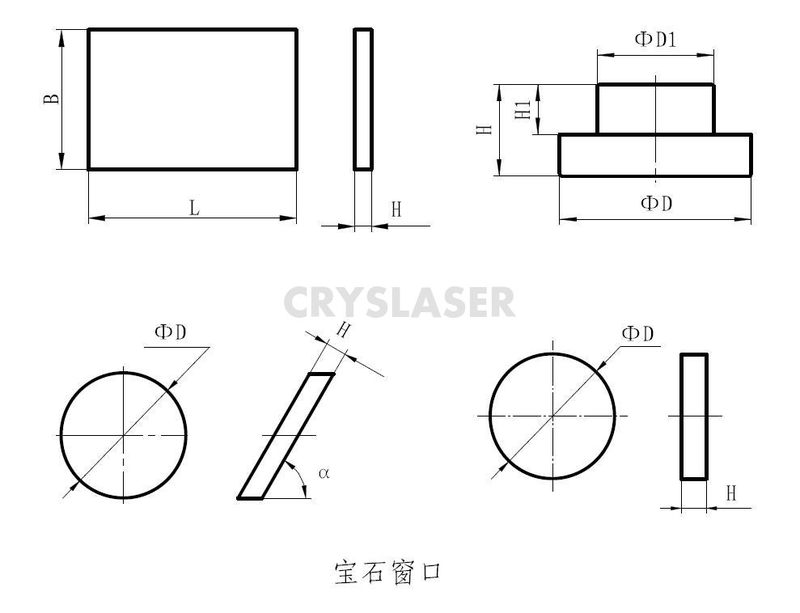

Sapphire Sapphire has good light transmittance in the 0.20 ~ 5.50μm band and is an ideal laser and infrared optical material, widely used in endoscopes, watch crystals, optical lenses, surface acoustic wave devices, infrared windows, filters, high/low temperature observation windows, photon beauty instrument windows, etc., and can provide coating services such as anti-reflection coatings, high-reflection coatings, dielectric coatings, filter coatings, and metallization. Sapphire is also an ideal material for integrated circuit substrates and epitaxial substrates such as GaN and GaAs. Main products include round wafers, oval wafers, oblique round wafers, stepped window wafers, etc. Product advantages: high sensitivity; scratch resistance, wear resistance; good optical transmittance; extremely high surface hardness and chemical resistance, not prone to corrosion and deliquescence; transmission wavelength range covers ultraviolet to mid-infrared. Sapphire; Sapphire has good light transmittance in the 0.20 ~ 5.50μm band and is an ideal laser and infrared optical material, widely used in endoscopes, watch crystals, optical lenses, surface acoustic wave devices, infrared windows, filters, high/low temperature observation windows, photon beauty instrument windows, etc., and can provide coating services such as anti-reflection coatings, high-reflection coatings, dielectric coatings, filter coatings, and metallization.; Sapphire is also an ideal material for integrated circuit substrates and epitaxial substrates such as GaN and GaAs.; Main products include round wafers, oval wafers, oblique round wafers, stepped window wafers, etc.; Product advantages: high sensitivity; scratch resistance, wear resistance; good optical transmittance; extremely high surface hardness and chemical resistance, not prone to corrosion and deliquescence; transmission wavelength range covers ultraviolet to mid-infrared; processing standards; product advantages: main types; transmittance curve; material properties
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Diameter Tolerance [Commercial Grade] | +0/-0.30 mm |
| Diameter Tolerance [Factory Standard] | +0/-0.25 mm |
| Diameter Tolerance [Precision Grade] | +0/-0.10 mm |
| Center Thickness [Commercial Grade] | ±0.10 mm |
| Center Thickness [Factory Standard] | ±0.05 mm |
| Center Thickness [Precision Grade] | ±0.03 mm |
| Radius [Commercial Grade] | ±2 % |
| Radius [Factory Standard] | ±1.5 % |
| Radius [Precision Grade] | ±1 % |
| Focal Length Tolerance [Commercial Grade/Factory Standard] | <5 % |
| Focal Length Tolerance [Precision Grade] | <3 % |
| Figure tolerance in λ (Pow/irreg) [Commercial Grade] | 5 - 2 |
| Figure tolerance in λ (Pow/irreg) [Factory Standard] | 2 - 1 |
| Figure tolerance in λ (Pow/irreg) [Precision Grade] | 1 - 1/2 |
| Concentration [Commercial Grade/Factory Standard] | 5' |
| Concentration [Precision Grade] | 3' |
| Diameter. Thickness Ratio | 9~50:1 |
| Coating (T% avg) [3-5um/7-14um. 95% @ 4-12um] | 96 % @ 3-5um/7-14um. 95 % @ 4-12um |
