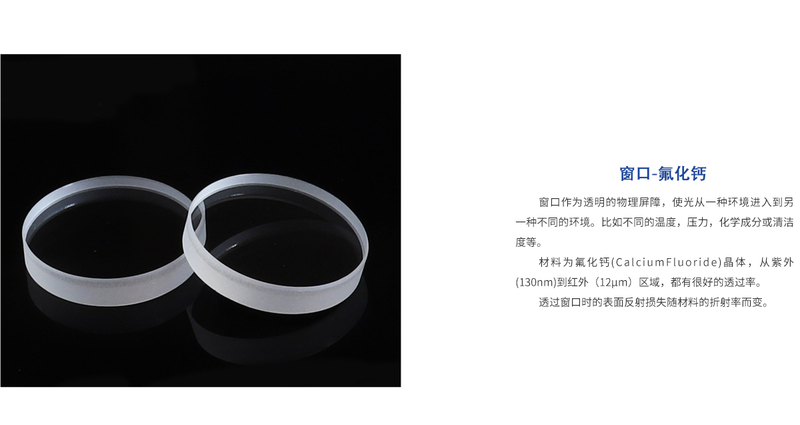

Calcium fluoride
An optical window is a transparent physical barrier that transmits light between environments differing in temperature, pressure, chemical composition or cleanliness.
Save to Favorites
Overview
Specifications

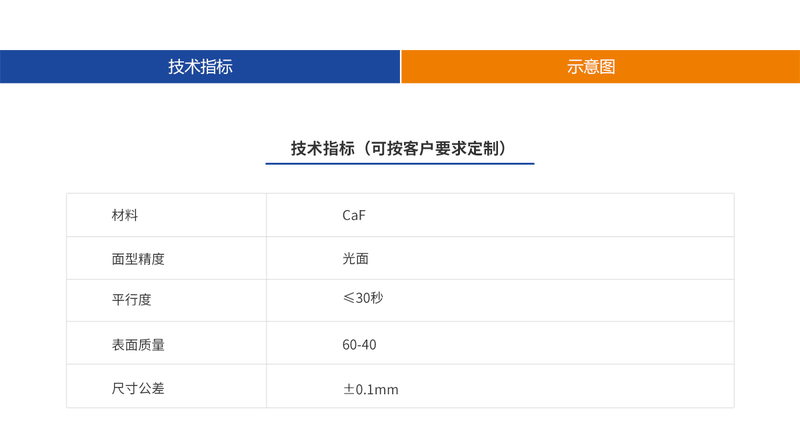

| Parameter | Value |
|---|---|
| Material | CaF |
| Surface Figure Accuracy | Polished Surface |
| Parallelism | ≤30 arcsec |
| Surface Quality | 60-40 |
| Dimensional Tolerance | ±0.1mm |

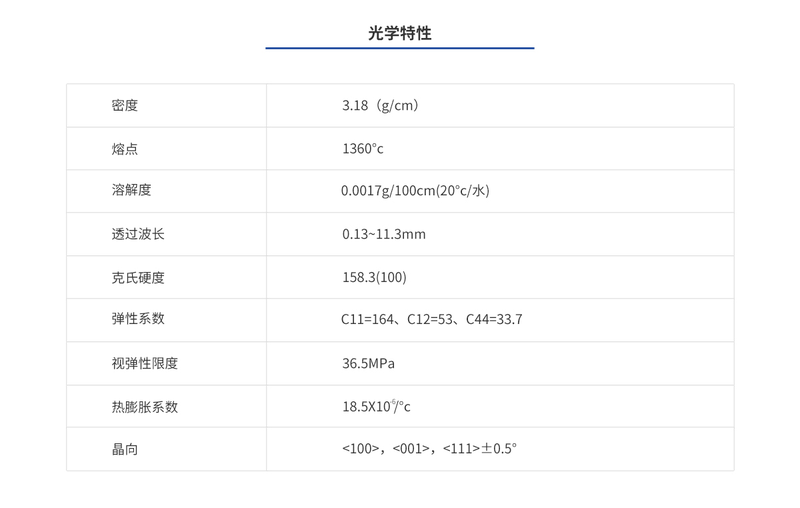

| Density | 3.18（g/cm） |
| Melting Point | 1360°c |
| Solubility [20°C / Water] | 0.0017g/100cm (20°C / Water) |
| Transmission Wavelength | 0.13~11.3mm |
| Knoop Hardness | 158.3（100） |
| Elastic Constants | C11=164、C12=53、C44=33.7 |
| Apparent Elastic Limit | 36.5MPa |
| Thermal Expansion Coefficient | 18.5X10⁻⁶/°c |
| Crystal Orientation | <100>，<001>，<111>±0.5° |

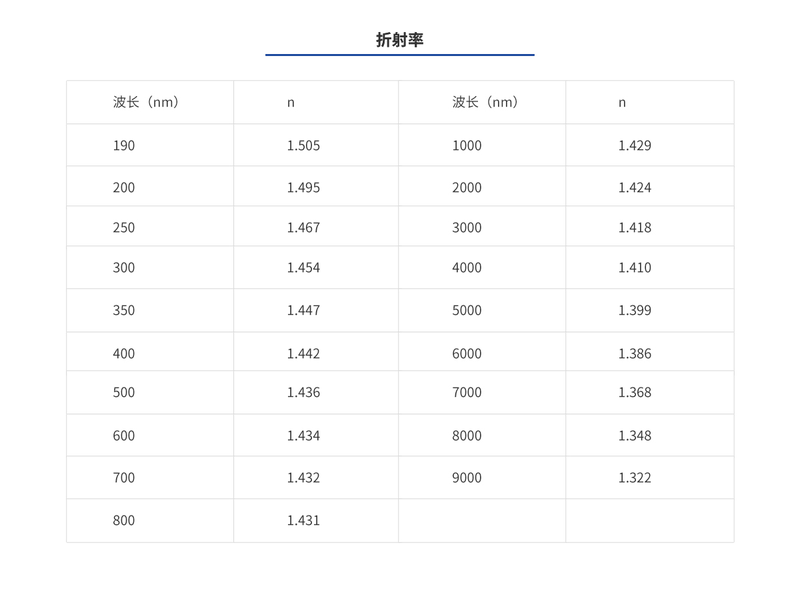

| Refractive Index (n) [190 nm] | 1.505 |
| Refractive Index (n) [200 nm] | 1.495 |
| Refractive Index (n) [250 nm] | 1.467 |
| Refractive Index (n) [300 nm] | 1.454 |
| Refractive Index (n) [350 nm] | 1.447 |
| Refractive Index (n) [400 nm] | 1.442 |
| Refractive Index (n) [500 nm] | 1.436 |
| Refractive Index (n) [600 nm] | 1.434 |
| Refractive Index (n) [700 nm] | 1.432 |
| Refractive Index (n) [800 nm] | 1.431 |
| Refractive Index (n) [1000 nm] | 1.429 |
| Refractive Index (n) [2000 nm] | 1.424 |
| Refractive Index (n) [3000 nm] | 1.418 |
| Refractive Index (n) [4000 nm] | 1.410 |
| Refractive Index (n) [5000 nm] | 1.399 |
| Refractive Index (n) [6000 nm] | 1.386 |
| Refractive Index (n) [7000 nm] | 1.368 |
| Refractive Index (n) [8000 nm] | 1.348 |
| Refractive Index (n) [9000 nm] | 1.322 |
