Standard flat mirror

Standard flat mirror

Supplier
Transoptics
Category
Optical Mirrors
Origin
China

An optical standard flat is a precisely polished surface. It serves as a reference surface for comparative inspection of unknown surfaces. The surface figure measurement of a polished surface is determined by the amount of fringe curvature between the surface under test and the reference surface. These standard mirrors can be used in many ways, such as: measuring the wear and accuracy of gauge blocks, and measuring the surface figure accuracy of various components such as windows, prisms, color filters, and mirrors. They can also serve as standard flat mirrors in interferometers.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

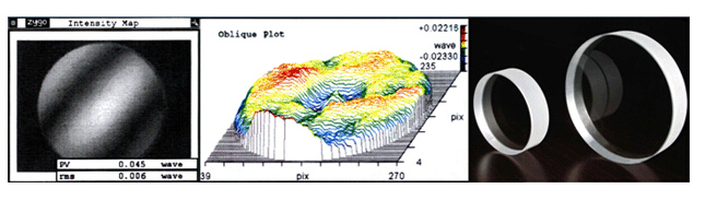

An optical standard flat is a precisely polished surface. It serves as a reference surface for comparative inspection of unknown surfaces. The surface figure measurement of a polished surface is determined by the amount of fringe curvature between the surface under test and the reference surface. These standard mirrors can be used in many ways, such as: measuring the wear and accuracy of gauge blocks, and measuring the surface figure accuracy of various components such as windows, prisms, color filters, and mirrors. They can also serve as standard flat mirrors in interferometers.

Specifications

ParameterValue
Refractive index (587.6nm) [H-K9L;587.6nm]1.5168
Refractive index (587.6nm) [H-K4;587.6nm]1.5080
Refractive index (587.6nm) [Fused silica; 587.6nm]1.4586
Abbe number (νd) [H-K9L]64.20
Abbe number (νd) [H-K4]61.05
Abbe number (νd) [Quartz Glass]68.00
Specific gravity (g/cm³) [H-K9L]2.52 g/cm³
Specific gravity (g/cm³) [H-K4]2.43 g/cm³
Specific gravity (g/cm³) [Quartz Glass]2.21 g/cm³
Surface accuracy grade (λ) [H-K9L/H-K4/Fused silica]λ/10 and λ/20
Rear surface accuracy grade (λ) [H-K9L/H-K4/Fused silica]λ
Parallelism [H-K9L/H-K4/Fused silica]5-10 arcmin
Clear aperture [H-K9L/H-K4/Fused silica; central region]>90 % central region
Chamfer [H-K9L/H-K4/Fused silica]1.0x45 °

Applications

Can be used in many ways, such as: measuring the wear and accuracy of gauge blocks, and measuring the surface figure accuracy of various components such as windows, prisms, color filters, and mirrors.
