Plasma Cleaner Aluminum Alloy Vacuum Chamber

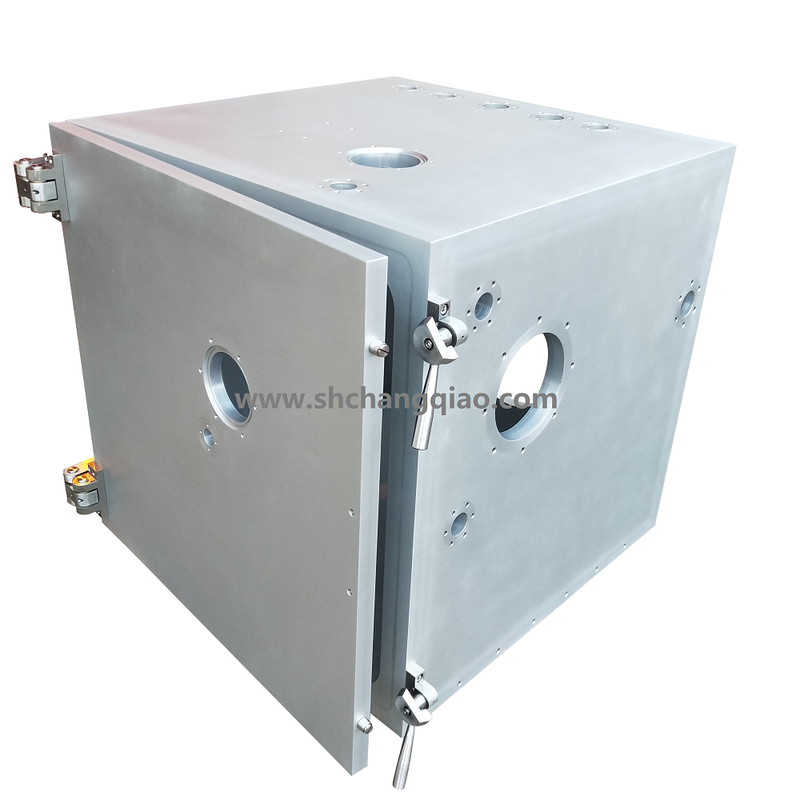

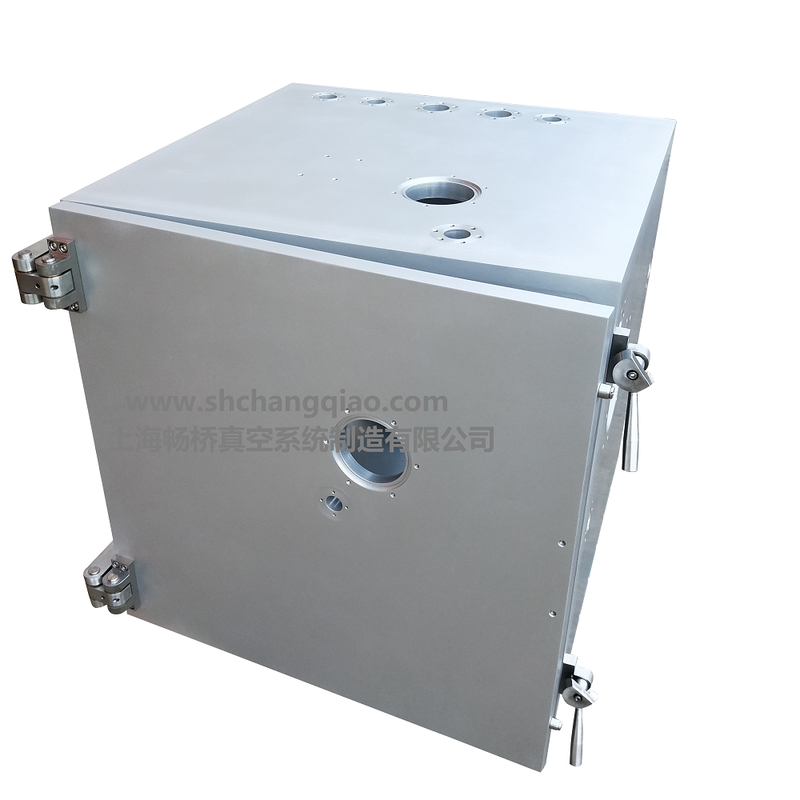

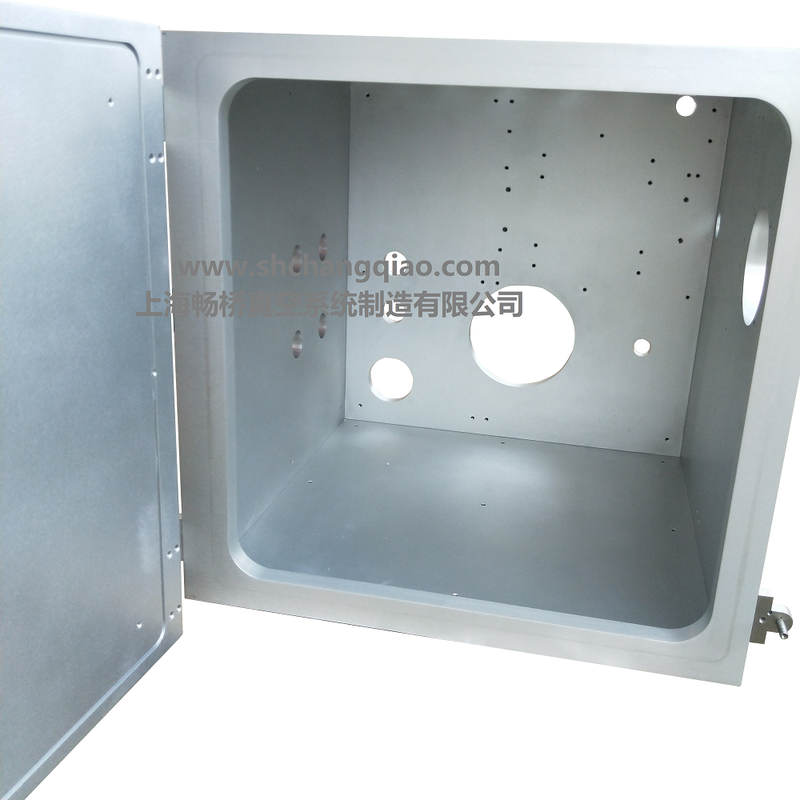

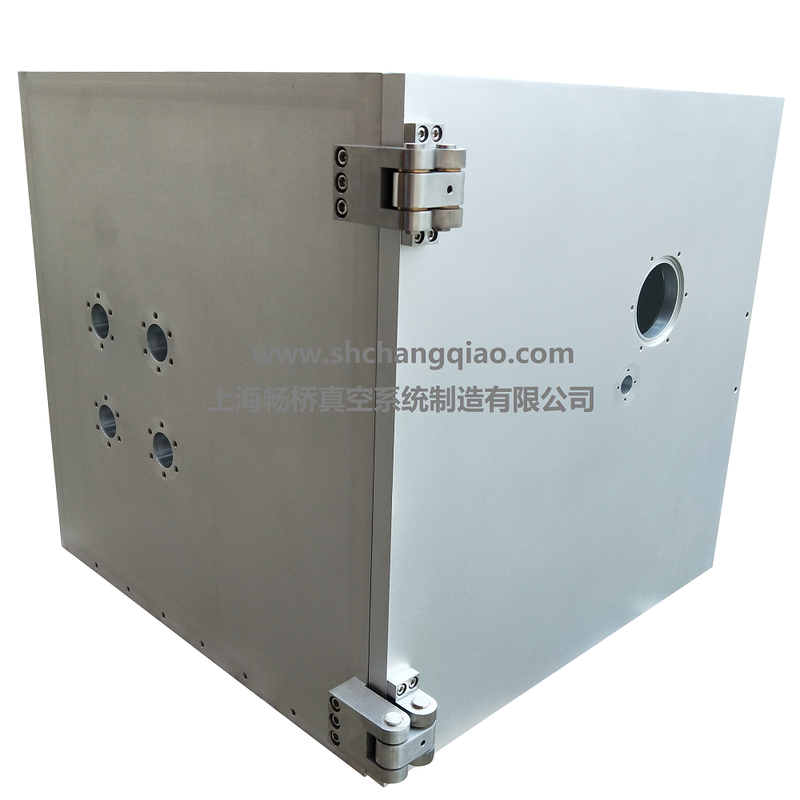

The plasma cleaner aluminum alloy vacuum chamber is a main component of the plasma cleaner. The aluminum alloy chambers produced by Changqiao Vacuum have anti-touch treatment on the outer surface, no weld seams, an attractive appearance, and good leakage rate and pressure retention, receiving high praise from customers. Aluminum alloy vacuum chambers are mainly used in the semiconductor industry, especially in plasma cleaners and etchers. Plasma cleaner chambers have been widely applied in the industry. Plasma cleaners are mostly used in processes such as LCD bonding, LED packaging, integrated circuit component packaging, IC packaging, engineering plastics and special hard material surface treatment. Shanghai Changqiao Vacuum System Manufacturing Co., Ltd. was founded in 2011 and is a manufacturer specializing in the production of aluminum alloy vacuum chambers, with good cost performance. Product appearance, reliability, leakage rate and other performance are superior to traditional methods, and have won unanimous recognition from customers. For custom plasma cleaner chambers required by customers, we have passed ISO9001 quality management system certification, and will continue to leverage our technical and market advantages, striving to build an excellent professional team to achieve win-win cooperation. We have various equipment such as fully automatic CNC machining centers and gantry milling machines, and can process vacuum chamber continuous lines. Main products: non-standard aluminum alloy vacuum chambers, semiconductor vacuum chambers, coating machine chambers, stainless steel vacuum chamber processing, vacuum furnace bodies, PVD series coating machine chambers, chamber-matched vacuum pipelines and other series of vacuum products. All products undergo strict dimensional and helium mass spectrometer leak detector vacuum testing before leaving the factory, with complete inspection reports attached. Products are used in semiconductors, scientific research, nuclear power, coating, vacuum furnace industry, energy, pharmaceuticals, metallurgy, chemicals and many other industries.
