25G / 10G Burst Error Analyzer (RBT2250)
The RBTxx50 burst error tester is specifically designed for Optical Line Terminal (OLT) testing in Passive Optical Network (PON) applications, supporting 12.5G EPON, GPON, 2.5G XGPON, ComboPON, 10G EPON and 10G XGSPON burst error testing and analysis; used to evaluate 10G or 25G OLT receiver performance in burst mode.; The RBTxx50 series provides 2~3 independent channel data pattern generators and error detectors, supporting continuous mode or burst mode error analysis, with simultaneous two-channel burst time-division or wavelength-division error analysis capability.
Save to Favorites
Overview
Specifications

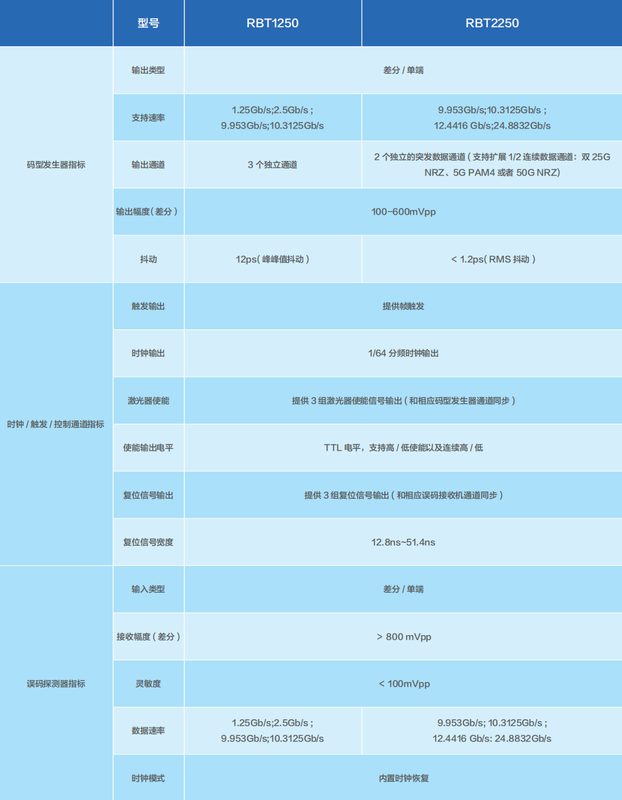

| Parameter | Value |
|---|---|
| Pattern generator - Output type | Differential/Single-ended |
| Pattern Generator-Supported Rates | 9.953 Gb/s;10.3125 Gb/s;12.4416 Gb/s;24.8832 Gb/s |
| Pattern Generator-Output Channels | 2 independent burst data channels (supports expansion with 1/2 continuous data channels: dual 25G NRZ, 5G PAM4 or 50G NRZ) |
| Pattern Generator-Output Amplitude (Differential) | 100-600mVpp |
| Pattern Generator-Jitter [RMS Jitter] | <1.2 ps (RMS jitter) |
| Clock/Trigger/Control Channel-Trigger Output | Provides frame trigger |
| Clock/Trigger/Control Channel-Clock Output | 1/64 divided clock output |
| Clock/Trigger/Control Channel-Laser Enable [Synchronized with corresponding pattern generator channel] | Provides 3 sets of laser enable signal outputs (synchronized with corresponding pattern generator channels) |
| Clock/Trigger/Control Channel-Enable Output Level | TTL level, supports high/low enable and continuous high/low |
| Clock/Trigger/Control Channel-Reset Signal Output [Synchronized with corresponding error detector channel] | Provides 3 sets of reset signal outputs (synchronized with corresponding error detector channels) |
| Clock/Trigger/Control Channel-Reset Signal Width | 12.8 ns~51.4 ns |
| Error detector - Input type | Differential/Single-ended |
| Error Detector-Receive Amplitude (Differential) | >800 mVpp |
| Error Detector-Sensitivity | <100 mVpp |
| Error Detector-Data Rate | 9.953 Gb/s;10.3125 Gb/s;12.4416 Gb/s;24.8832 Gb/s |
| Error detector - Clock mode | Built-in clock recovery |
