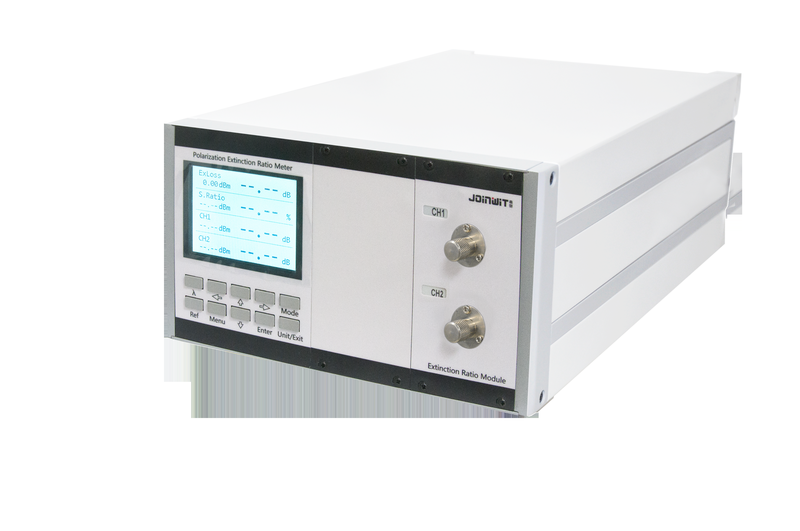

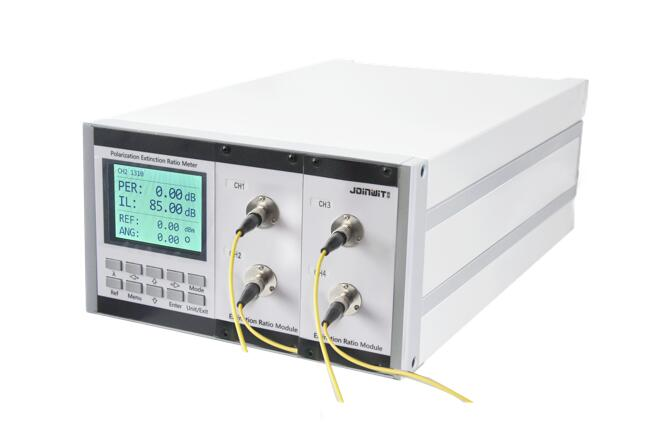

JW8606 Multi-channel Polarization Extinction Ratio Tester (JW8606 Type C)
The JW8606 dual-channel polarization extinction ratio tester is a new-generation precision optical testing instrument developed by Jiahui Company, dedicated to the polarization characteristic testing of polarization-maintaining devices and light sources. Its core functions include polarization extinction ratio testing of polarization-maintaining fibers, polarization-maintaining optical devices, and polarization-maintaining connectors, as well as measurement of the degree of polarization and polarization axis angle of light sources. It also supports measurement of the additional loss and splitting ratio of Y-waveguides. The instrument is also equipped with powerful, user-friendly host computer software, integrating multi-purpose, high-precision, and ease of operation, and can effectively improve testing efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 400~700 nm |
| Maximum Input Power [Power Customizable] | +10/+25 dBm (power customizable) |
| Input Power Range | -30~+10 dBm |
| Maximum PER | 30 dB |
| PER Dynamic Range [400~500nm；500~700nm] | 400~500 nm:20 dB 500~700 nm:30 dB |
| PER Resolution [＜10dB] | <10 dB:0.001 dB |
| PER Resolution [≥10dB] | ≥10 dB:0.01 dB |
| PER Accuracy [PER≤2dB] | PER≤2 dB:≤±0.1 dB |
| PER Accuracy [PER＜30dB] | PER<30 dB:< ±0.3 dB |
| PER accuracy [PER≥30dB] | PER≥30 dB:<±1.0 dB |
| Polarization Angle Resolution | 0.11 ° |
| Polarization Angle Accuracy | <±0.45 ° |
| Measurement Speed | 0.25 s |

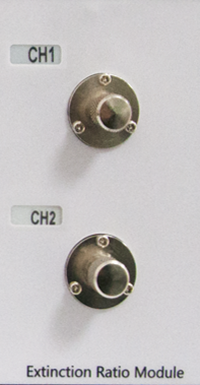

| Connector type [Also supports SC/LC interfaces, optional bare fiber adapter] | FC/PC (also supports SC/LC interfaces, optional bare fiber adapter) |
| Communication Interface | RS232 |
