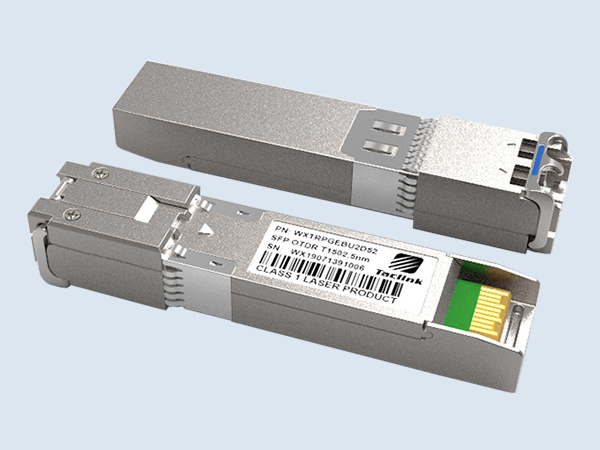

OSC&OTDR (155M OSC SFP)
* On-board or customer-supplied OTDR algorithm, supports integrating OTDR function into OSC SFP * All module types listed in the table above support personalized function customization
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| LC Optical Interface [1491nm；39dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；39dB max；C temp] | 1491nm |
| Link Budget [Duplex LC；1491nm；C temp] | 39dB max |
| Temperature Grade [Duplex LC；1491nm；39dB max] | C temp |
| LC Optical Interface [1491nm；48dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；48dB max；C temp] | 1491nm |
| Link Budget [Duplex LC；1491nm；C temp] | 48dB max |
| Temperature Grade [Duplex LC；1491nm；48dB max] | C temp |
| LC Optical Interface [1511nm；39dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；39dB max；C temp] | 1511nm |
| Link Budget [Duplex LC；1511nm；C temp] | 39dB max |
| Temperature Grade [Duplex LC；1511nm；39dB max] | C temp |
| LC Optical Interface [1511nm；48dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；48dB max；C temp] | 1511nm |
| Link Budget [Duplex LC；1511nm；C temp] | 48dB max |
| Temperature Grade [Duplex LC；1511nm；48dB max] | C temp |
| LC Optical Interface [1625nm；37dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；37dB max；C temp] | 1625nm |
| Link Budget [Duplex LC；1625nm；C temp] | 37dB max |
| Temperature Grade [Duplex LC；1625nm；37dB max] | C temp |
| LC Optical Interface [1625nm；45dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；45dB max；C temp] | 1625nm |
| Link Budget [Duplex LC；1625nm；C temp] | 45dB max |
| Temperature Grade [Duplex LC；1625nm；45dB max] | C temp |
| LC Optical Interface [1645nm；37dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；37dB max；C temp] | 1645nm |
| Link Budget [Duplex LC；1645nm；C temp] | 37dB max |
| Temperature Grade [Duplex LC；1645nm；37dB max] | C temp |
| LC Optical Interface [1645nm；45dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；45dB max；C temp] | 1645nm |
| Link Budget [Duplex LC；1645nm；C temp] | 45dB max |
| Temperature Grade [Duplex LC；1645nm；45dB max] | C temp |
| LC Optical Interface [1506nm；39dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；39dB max；C temp] | 1506nm |
| Link Budget [Duplex LC；1506nm；C temp] | 39dB max |
| Temperature Grade [Duplex LC；1506nm；39dB max] | C temp |
| LC Optical Interface [1506nm；48dB max；C temp] | Duplex LC |
| Wavelength [Duplex LC；48dB max；C temp] | 1506nm |
| Link Budget [Duplex LC；1506nm；C temp] | 48dB max |
| Temperature Grade [Duplex LC；1506nm；48dB max] | C temp |
| LC Optical Interface [1491nmTx/1511nmRx；39dB max；C temp] | Simplex LC |
| Wavelength [Simplex LC；39dB max；C temp] | 1491nmTx/1511nmRx |
| Link Budget [Simplex LC；1491nmTx/1511nmRx；C temp] | 39dB max |
| Temperature Grade [Simplex LC；1491nmTx/1511nmRx；39dB max] | C temp |
| LC Optical Interface [1511nmTx/1491nmRx；39dB max；C temp] | Simplex LC |
| Wavelength [Simplex LC；39dB max；C temp] | 1511nmTx/1491nmRx |
| Link Budget [Simplex LC；1511nmTx/1491nmRx；C temp] | 39dB max |
| Temperature Grade [Simplex LC；1511nmTx/1491nmRx；39dB max] | C temp |
| LC Optical Interface [1491nmTx/1511nmRx；48dB max；C temp] | Simplex LC |
| Wavelength [Simplex LC；48dB max；C temp] | 1491nmTx/1511nmRx |
| Link Budget [Simplex LC；1491nmTx/1511nmRx；C temp] | 48dB max |
| Temperature Grade [Simplex LC；1491nmTx/1511nmRx；48dB max] | C temp |
| LC Optical Interface [1511nmTx/1491nmRx；48dB max；C temp] | Simplex LC |
| Wavelength [Simplex LC；48dB max；C temp] | 1511nmTx/1491nmRx |
| Link Budget [Simplex LC；1511nmTx/1491nmRx；C temp] | 48dB max |
| Temperature Grade [Simplex LC；1511nmTx/1491nmRx；48dB max] | C temp |
