1.6T benchtop bit error analyzer (PBT3058)
The Semight Instruments PBT3058 is a high-performance bit error rate analyzer (BERT) used for high-speed serial signal bit error testing, applicable to physical layer characterization and conformance testing. With support for four-level pulse amplitude modulation (PAM4) and non-return-to-zero (NRZ) signals, and symbol rates up to 106.25GBaud, it covers the 1.6TBASE/CEI-224G standards;; its excellent signal quality (fast rise/fall times, low jitter), rich features (support for FEC error correction code analysis), flexible option configurations, and extremely high system integration provide strong performance and flexibility assurance for pre-research, design, and production testing of high-speed serial circuit products;; users can freely choose different test modes: they can directly insert the DUT into the built-in MCB Kit port on the front panel (lower link signal loss and built-in water cooling), or connect high-speed RF signals to the DUT through an external RF probe;; the programmable pattern generator (PPG) can provide up to 21-stage pre-emphasis adjustment as well as optional nonlinear compensation, flexibly compensating for signal loss during transmission and improving signal quality. The error detector (ED) has a built-in adaptive equalization circuit, ensuring link signal integrity without the need for external active or passive signal conditioning circuits; it also has a built-in fast-locking clock recovery module, ensuring link stability during bit error testing, as well as the accuracy of bit error testing in harsh and complex test environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

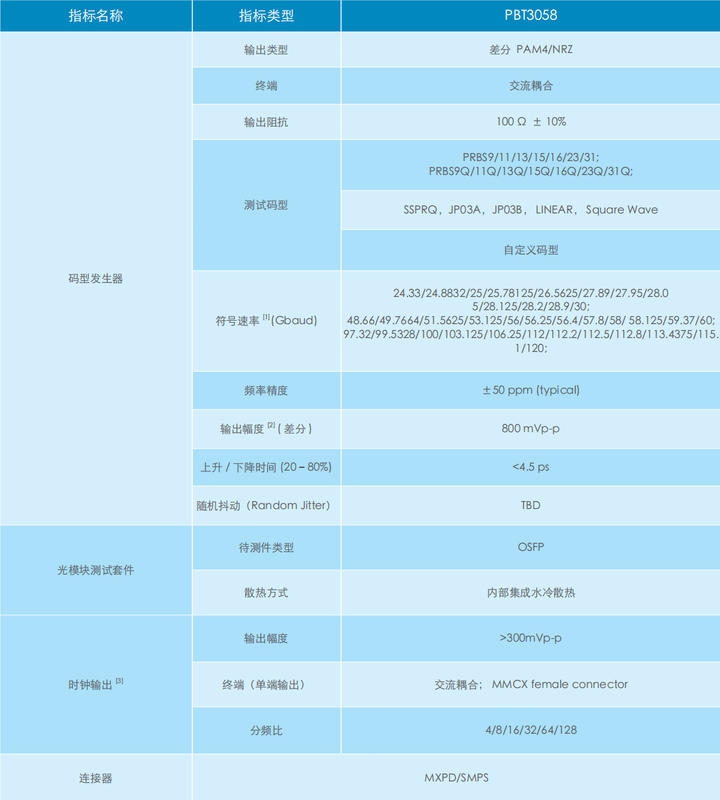

| Pattern generator - Output type | Differential PAM4/NRZ |
| Pattern generator - Termination | AC coupled |
| Pattern generator - Output impedance [±10%] | 100 Ω ±10 % |
| Pattern generator - Test pattern | PRBS9/11/13/15/16/23/31; PRBS9Q/11Q/13Q/15Q/16Q/23Q/31Q; SSPRQ, JP03A, JP03B, LINEAR, Square Wave; Custom pattern |
| Pattern generator - Symbol rate (Gbaud) [Extended rate requires EDR option activation] | 24.33/24.8832/25/25.78125/26.5625/27.89/27.95/28.05/28.125/28.2/28.9/30 Gbaud;48.66/49.7664/51.5625/53.125/56/56.25/56.4/57.8/58/58.125/59.37/60 Gbaud;97.32/99.5328/100/103.125/106.25/112/112.2/112.5/112.8/113.4375/115.1/120 Gbaud |
| Pattern generator - Frequency accuracy [typical] | ±50 ppm (typical) |
| Pattern generator - Output amplitude (differential) [Differential; transmitter-side net measured value, default pre-emphasis/de-emphasis parameters] | 800 mVp-p |
| Pattern generator - Rise/fall time (20-80%) | <4.5 ps |
| Optical module test kit - DUT type | OSFP |
| Optical module test kit - Cooling method | Integrated internal water cooling |
| Clock output - Output amplitude [Only RF probe supports trigger clock output] | >300 mVp-p |
| Clock output - Termination (single-ended output) [Single-ended output; only RF probe supports trigger clock output] | AC coupled; MMCX female connector |
| Clock output - Divider ratio [Only RF probe supports trigger clock output] | 4/8/16/32/64/128 |
| Connector | MXPD/SMPS |

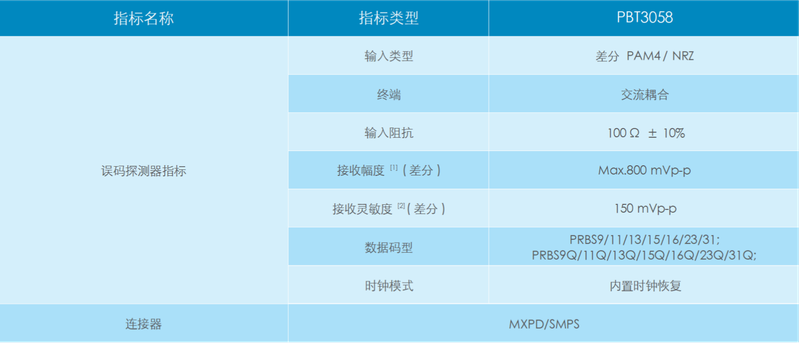

| Error detector - Input type | Differential PAM4/NRZ |
| Error detector - Termination | AC coupled |
| Error detector - Input impedance [±10%] | 100 Ω ±10 % |
| Error detector - Receive amplitude (differential) [Differential; receiver-side net measured value; excessively high voltage input may damage the receiver] | Max.800mVp-p |
| Error detector - Receive sensitivity (differential) | 150 mVp-p |
| Error detector - Data pattern | PRBS9/11/13/15/16/23/31;PRBS9Q/11Q/13Q/15Q/16Q/23Q/31Q |
| Error detector - Clock mode | Built-in clock recovery |

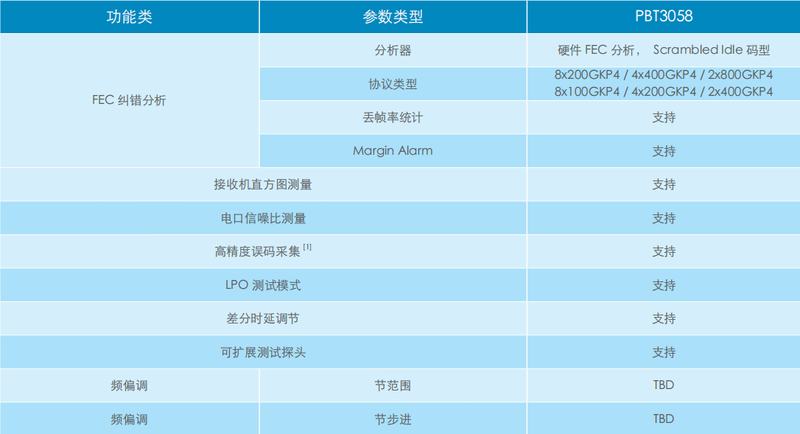

| FEC error correction analysis - Analyzer | Hardware FEC analysis, Scrambled Idle pattern |
| FEC error correction analysis - Protocol type | 8x200GKP4/4x400GKP4/2x800GKP4;8x100GKP4/4x200GKP4/2x400GKP4 |
| FEC error correction analysis - Frame loss rate statistics | Support |
| FEC error correction analysis - Margin Alarm | Support |
| Receiver histogram measurement | Support |
| Electrical port signal-to-noise ratio measurement | Support |
| High-precision error acquisition | Support |
| LPO test mode | Support |
| Differential delay adjustment | Support |
| Expandable test probe | Support |

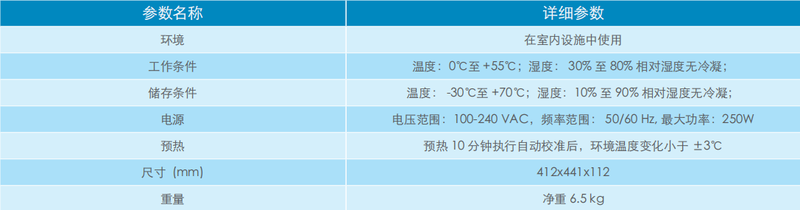

| Environment | For use in indoor facilities |
| Operating conditions | Temperature: 0 °C to +55 °C; Humidity: 30 % to 80 % RH non-condensing |
| Storage conditions | Temperature: -30 °C to +70 °C; Humidity: 10 % to 90 % RH non-condensing |
| Power Supply | Voltage range: 100-240VAC, Frequency range: 50/60 Hz, Maximum power: 250 W |
| Warm-up [After performing automatic calibration, ambient temperature change less than ±3°C] | Warm-up for 10 minutes; after performing automatic calibration, ambient temperature change less than ±3 °C |
| Dimensions | 412 mm × 441 mm × 112 mm |
| Weight [Net weight] | Net Weight 6.5 kg |
