Meniscus lens
A meniscus lens has one concave surface and the other convex surface; its focal length can be positive or negative. A meniscus lens can correct aberrations, is usually used as a corrective lens and can also be used as a condenser in an illumination system, and an appropriate thickness can be selected to eliminate chromatic aberration.
Save to Favorites
Overview
Specifications

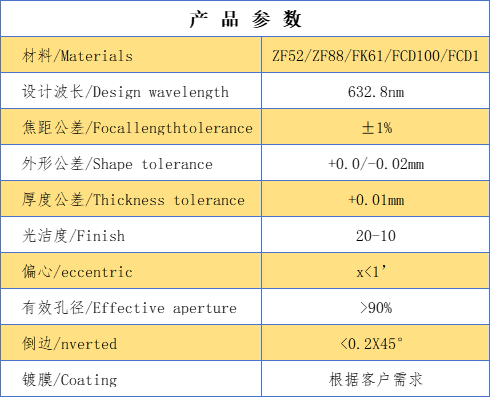

| Parameter | Value |
|---|---|
| Materials | ZF52/ZF88/FK61/FCD100/FCD1 |
| Design wavelength | 632.8 nm |
| Focal length tolerance | ±1 % |
| Shape tolerance | +0.0/-0.02 mm |
| Thickness tolerance | +0.01 mm |
| Finish | 20-10 |
| Eccentric | x<1 ′ |
| Effective aperture | >90 % |
| Bevelling | <0.2X45 ° |
| Coating | According to customer requirements |
