Large-size plano-convex spherical lens
A plano-convex lens consists of a convex surface and a flat surface; its convex surface is usually part of a spherical surface, shaped like a disc bulging on one side. Viewed from the side, one side presents a smooth curved surface while the other is a flat plane, and the two surfaces intersect to form the edge of the lens.
Save to Favorites
Overview
Specifications

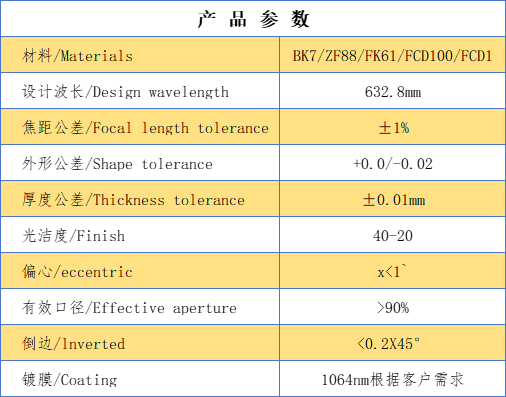

| Parameter | Value |
|---|---|
| Materials | BK7/ZF88/FK61/FCD100/FCD1 |
| Design wavelength | 632.8 nm |
| Focal length tolerance | ±1 % |
| Shape tolerance | +0.0/-0.02 |
| Thickness tolerance | ±0.01 mm |
| Finish | 40-20 |
| Eccentric | x<1 ′ |
| Effective aperture | >90 % |
| Bevelling | <0.2X45 ° |
| Coating [According to customer requirements] | 1064 nm according to customer requirements |
