Flat Water-Cooled Reflective Copper Mirror
Save to Favorites

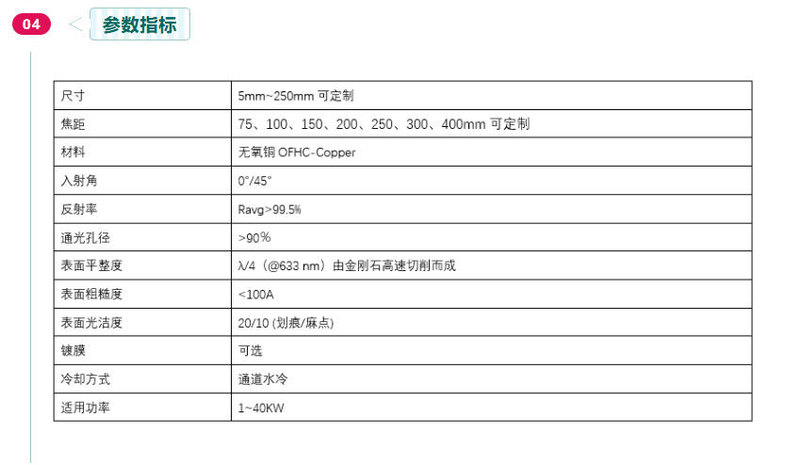

Specifications
| Parameter | Value |
|---|---|
| Dimensions [Customizable] | 5 mm~250 mm Customizable |
| Focal Length [Customizable] | 75 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm Customizable |
| Material | Oxygen-Free Copper OFHC-Copper |
| Angle of Incidence | 0 °/45 ° |

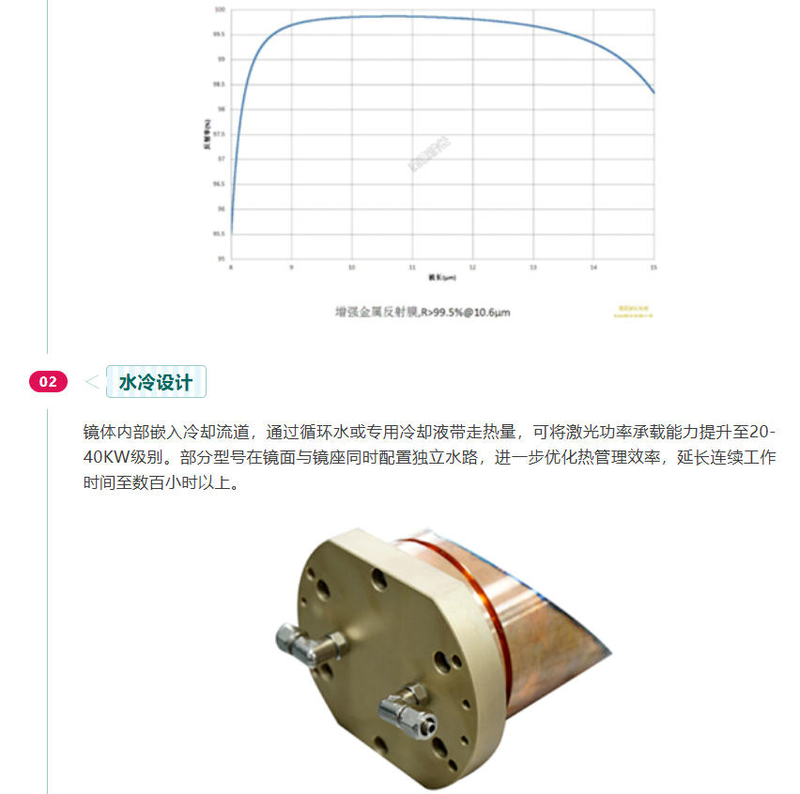

| Reflectivity (Ravg) | Ravg>99.5 % |
| Clear Aperture Dimension | >90 % |
| Surface Flatness [@633 nm; produced by high-speed diamond turning; 633 nm) produced by high-speed diamond turning] | λ/4 (@633 nm) produced by high-speed diamond turning |
| Surface Roughness | <100 A |
| Surface Finish [Scratch/Dig] | 20/10 (Scratch/Dig) |
| Coating | Optional |
| Cooling method | Channel Water Cooling |
| Applicable Power | 1~40KW |
Key Features
