ESX10-C16 ESX10 Series Cost-Effective 3D Profile Scanner
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | Line Laser Measurement |
| Detection method | Diffuse reflection |
| Housing Style | Square Type |
| Profile Points | 2048 |
| Stand-off Distance (CD) | 78 mm |
| Z-Axis Depth of Field (MR) | 16 mm |
| X-Axis Width (Near-End FOV) | 33 mm |
| X-Axis Width (Reference Distance) | 34 mm |
| X-Axis Width (Far-End FOV) | 36 mm |
| Light source | Blue Laser (405 nm, 10 mW, Class 2M/3R) |
| Reflection Angle | 40 ° |
| X-Direction Resolution | 14.6~20.1 μm |
| Z-Axis Repeatability | 0.5 μm |
| Z-Direction Linearity | 0.012 % |
| Scanning speed | 230~1600 Hz |
| Operating voltage | 24 V DC |
| Power consumption | 7 W |

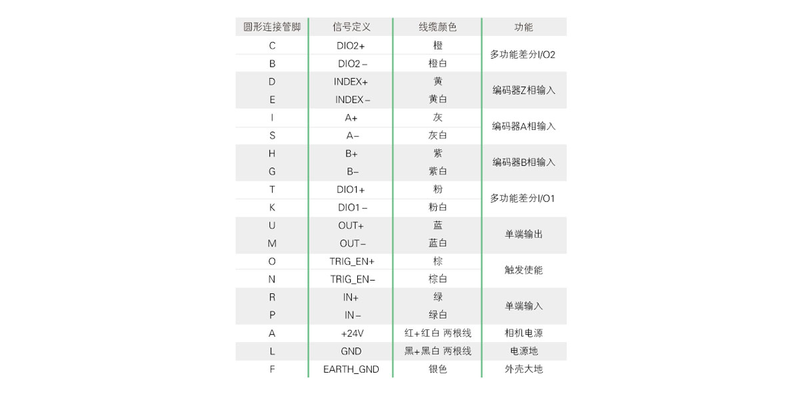

| Communication Interface | Gigabit Network Interface, 2× 24 V TTL Inputs, 2× 5 V TTL Outputs, Encoder Differential Input Single-Phase/Dual-Phase |
| Operating Temperature | 0~50 ℃ (no freezing) |
| Ambient illuminance | Incandescent lamp ≤3000 Lux; sunlight ≤10000 Lux |
| Vibration Resistance | 10~55 Hz, Double Amplitude 1.5 mm, X/Y/Z directions each 2 hours |
| Shock resistance | 150 m/s², 11 ms, Half-Sine Wave, 3 Times Each in X/Y/Z Directions |
| IP Rating | IP67 |

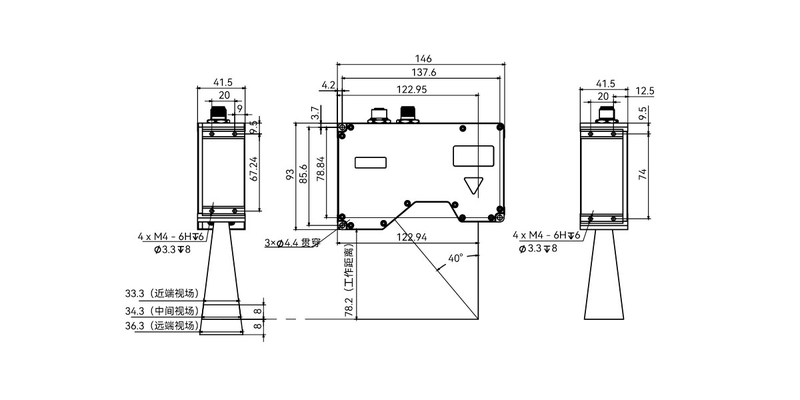

| Dimensions | 146 mm × 93 mm × 41.5 mm |
| Material | Aluminum alloy |
| Weight | Approx. 720 g |
