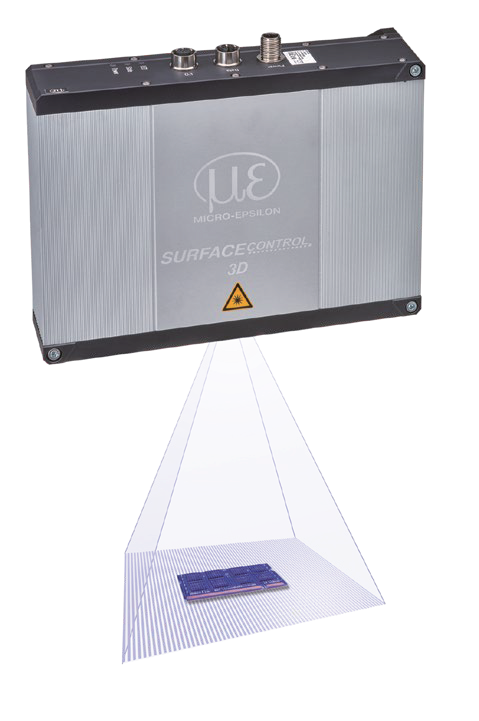

surfaceCONTROL 3D 3500
The surfaceCONTROL 3D 3500 is a high-precision 3D sensor designed for inline shape and surface inspection. It offers exceptional measurement accuracy and resolution, making it ideal for automated quality control in industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Repeatability | 0.25μm |
| Best Z-Axis Resolution | 0.7μm |
| Up to 2.2 million 3D data points per second | 220万点 |
| Power Supply Voltage | 24VDC±20% |
| Maximum Current | 0.5...2.5A |
| Digital Interface | GigE Vision/GenICam/PROFINET/EtherCAT/EtherNet/IP |
| Connection | 4xM12 connectors |
| Mounting Method | 3x threaded holes |

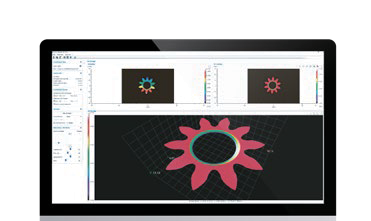

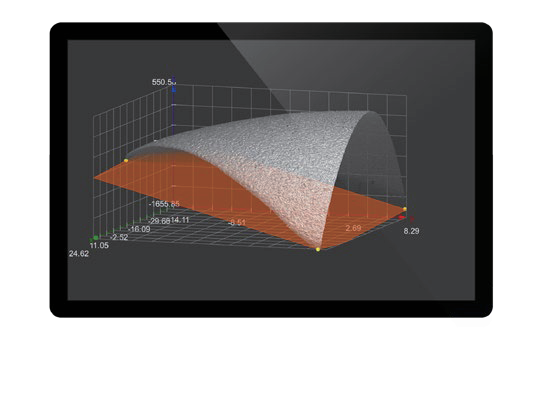

| 3D Evaluation Software | 3DInspect |
| Function Expansion | Automated evaluation |
Applications
Key Features
Datasheet
