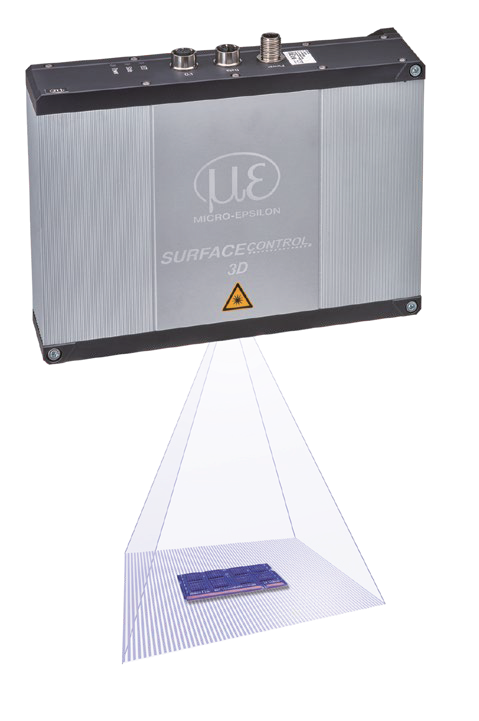

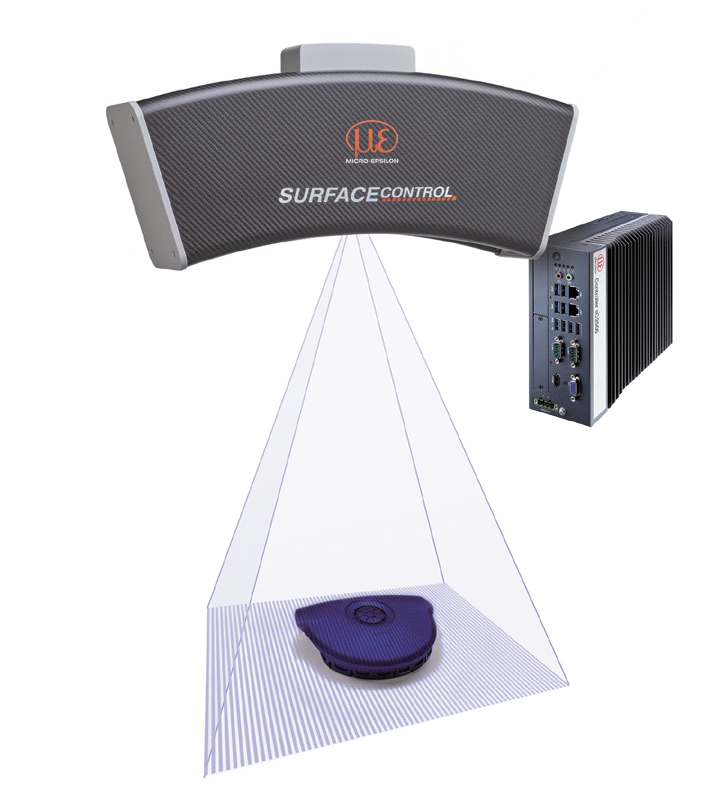

surfaceCONTROL 3D 3500
High-precision inline 3D measurement sensor designed for surface inspection and shape analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Repeatability | 0.25μm |
| Best Z-Axis Resolution | 0.7μm |
| 3D Data Points per Second | 2200000 |
| Digital Input/Output | 4 configurable image processing inputs/outputs |
| Connection | GigE Vision/GenICam, PROFINET, EtherCAT, EtherNet/IP |
| Storage Temperature | -20°C...+70°C |
| Protection Class | IP67 |
| Weight | 1.9kg |
| Light Source | LED |
| Power Supply Voltage | 24VDC ±20% |
| Maximum Current | 0.5A...2.5A |
| Resolution X,Y | 8μm |
| Resolution Z | 0.25μm |
| Extended Area Width | 130±3mm |
| Extended Area Length | 130±3mm |
