Waveshaper
Waveshaper-1000C 1x8 programmable optical processing systems; optical communication for the next generation interconnected with data centres; and support for flexible wavelength choices and accurate optical signal control. This module covers the C-band; provides GHz-class bandwidth resolution, programmable decay adjustment and high-channel isolation; and is widely applied in the field of DWDM system testing, network simulation, transceiver validation, and pulse orthopaedic. Broadband coverage; s
Save to Favorites
Overview

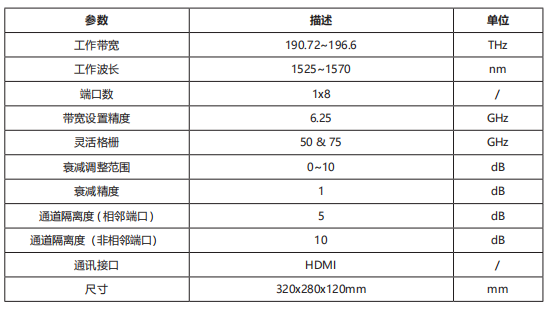

Specifications
| Parameter | Value |
|---|---|
| Working bandwidth | 190.72~196.6; THz |
| Work wavelength | 1525~1570; nm |
| Ports | 1x8 |
| Bandwidth Precision | 6.25; GHz |
| Flexible grid | 50 & 75; GHz |
| Scope of decay adjustment | 0~10; dB |
| Decreasing precision | 1; dB |
| Channel isolation | 5; dB; 10; dB |
| Communications interface | HDMI |
Applications
