Flutter laser driver module ORLD series
The ORLD series is a modular butterfly semiconductor laser controller; has the advantage of high current output power, high current accuracy, high constant flow characteristics and high ability to resist interference; has also had currents; overpressure; overheat, etc. protection measures; can effectively guarantee the work stability and operational life of lasers; and is very suitable for pump-type laser control. Support external simulation modems; modulation frequency slots that are modifiable
Save to Favorites
Overview

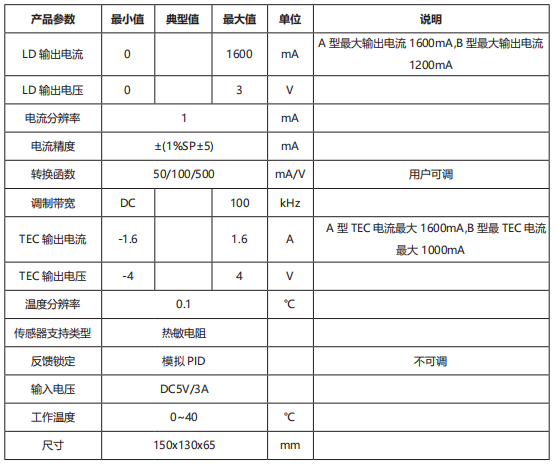

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Output current | 0; 1600; max. output current 1600 mA, type A, max. output current 1200 mA; -1.6; 1.6; A; Type A TEC currents up to 1600 mA, Type B best TEC currents up to 1000 mA |
| Current Precision | ±(1%SP±5); mA |
| Convert Functions | 50/100/500; mA/V; users Alignable |
| Modify the bandwidth | DC; 100; kHz |
| Temperature Resolution | 0.1; ℃ |
| Sensor Support Type | Heat-sensitive electrical resistance |
| Feedback Lock | simulating PID; non-modifiable |
| Enter voltage | DC5V/3A |
Datasheet
